Product Overview
High-Performance Polymeric Insulators
These polymeric insulators are engineered for reliable electrical insulation and mechanical support in overhead distribution and transmission lines. Housed in durable silicone rubber, they offer superior resistance to environmental stressors including moisture, corrosion, and aging. Designed for versatility, this series supports pin, post, and suspension configurations across a voltage range of 10kV to 36kV.
Technical Specifications
Voltage Rating
10 kV
Minimum Voltage
36 kV
Maximum Voltage
Key Material Properties
Water-proofAnti-ageingTracking-proofAnti-corrosionAnti-impulseShaking-proof
Available Configurations
- Pin type

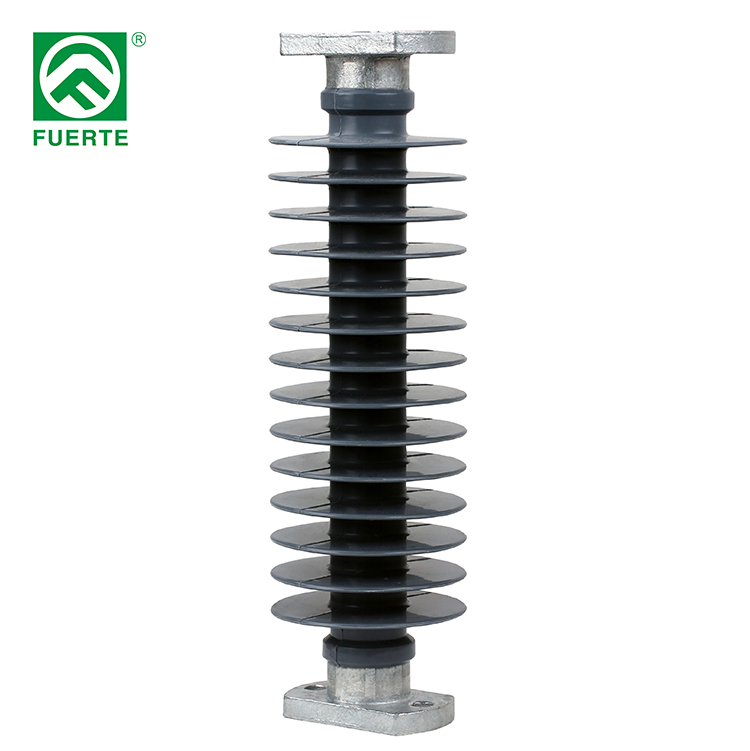

- Post type
- Suspension type
Physical Characteristics
| Feature | Benefit |
|---|---|
| Housing Material | Silicone Rubber |
| Weight | Lightweight design |
| Installation | Easy installation |
| Mechanical | High-strength |
- Compliance Standards
- IEC61109IEC61952ANSI C29
