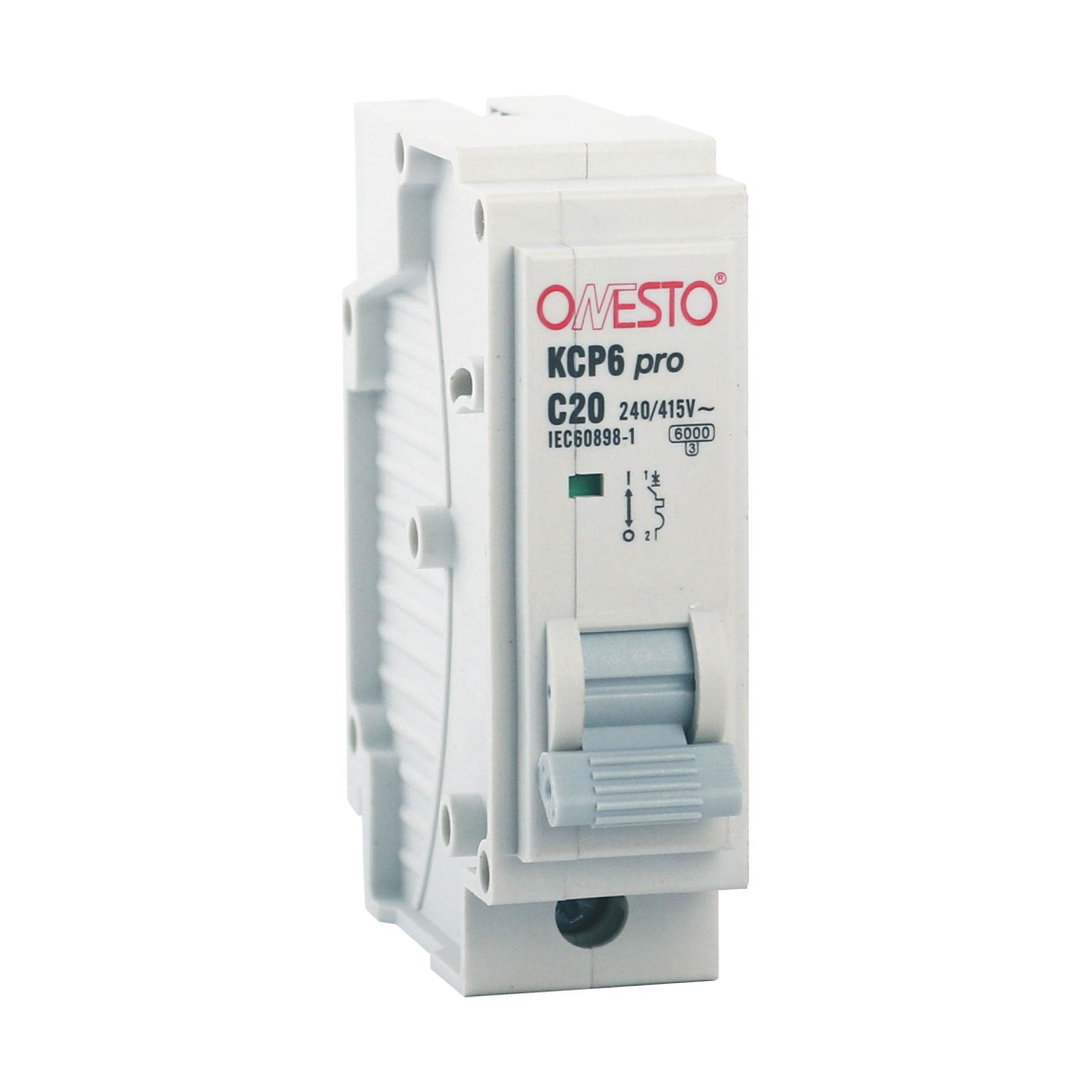

Plug-In Miniature Circuit Breaker
This miniature circuit breaker is designed for plug-in installation. It provides overcurrent and short-circuit protection in electrical circuits and is rated for 240/415V AC with a 6000A breaking capacity.
Technical Specifications
Overview
Professional Circuit Protection
This plug-in miniature circuit breaker is engineered for reliable overcurrent and short-circuit protection in electrical distribution systems. Designed to comply with international IEC60898-1 standards, it offers versatile configuration options including multiple pole counts and tripping curves. Its robust thermo-magnetic release mechanism ensures consistent performance across residential and commercial applications.
Electrical Ratings
Available Rated Currents
- 6
- 10
- 16
- 20
- 25
- 32
- 40
- 50
- 63
- Rated Operation Voltage
- 240V AC (1P)415V AC (2P, 3P)
Performance Metrics
Short-Circuit Breaking Capacity
6 kA
Ultimate (Icu)
6 kA
Service (Ics)
Tripping Curves
BC
Technical Specifications
Technical Data Summary
| Parameter | Value |
|---|---|
| Standard | IEC60898-1 |
| Number of Poles | 1, 2, 3 |
| Rated Insulation Voltage (Ui) | 415V |
| Rated Impulse Withstand (Uimp) | 4kV |
| Frequency | 50/60Hz |
| Protection Index | IP20 |
| Calibration Temperature | 50°C |
- Release Type
- Thermo-magnetic
