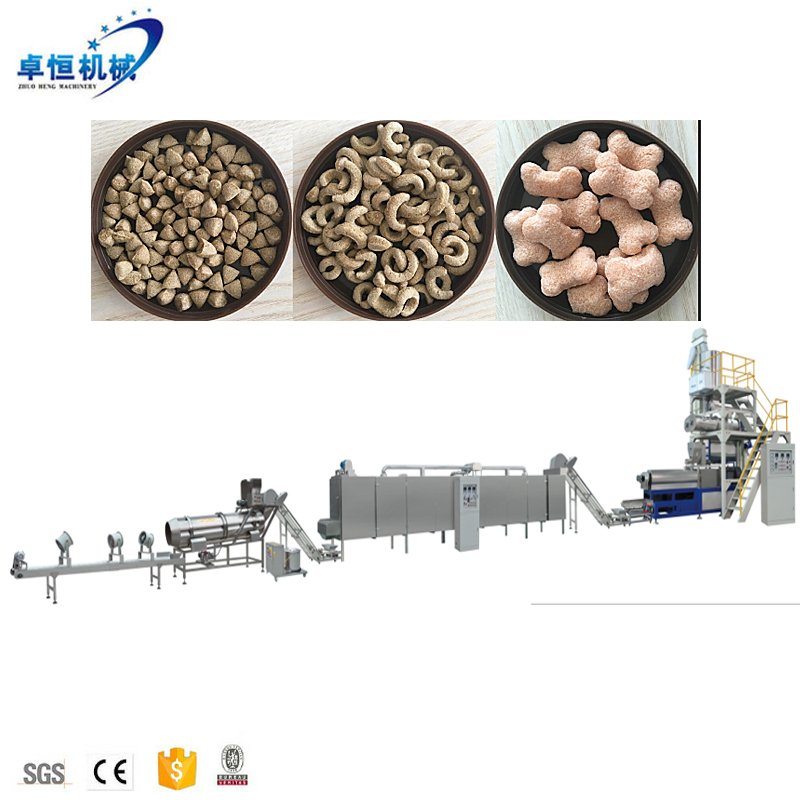

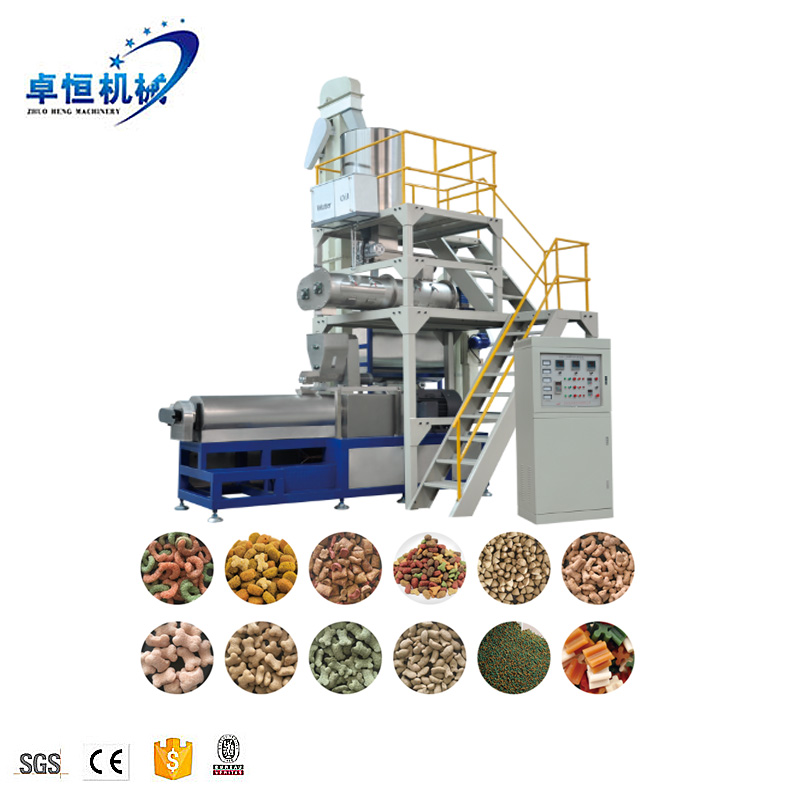

Pet Food Production Line, 150-2000 kg/h

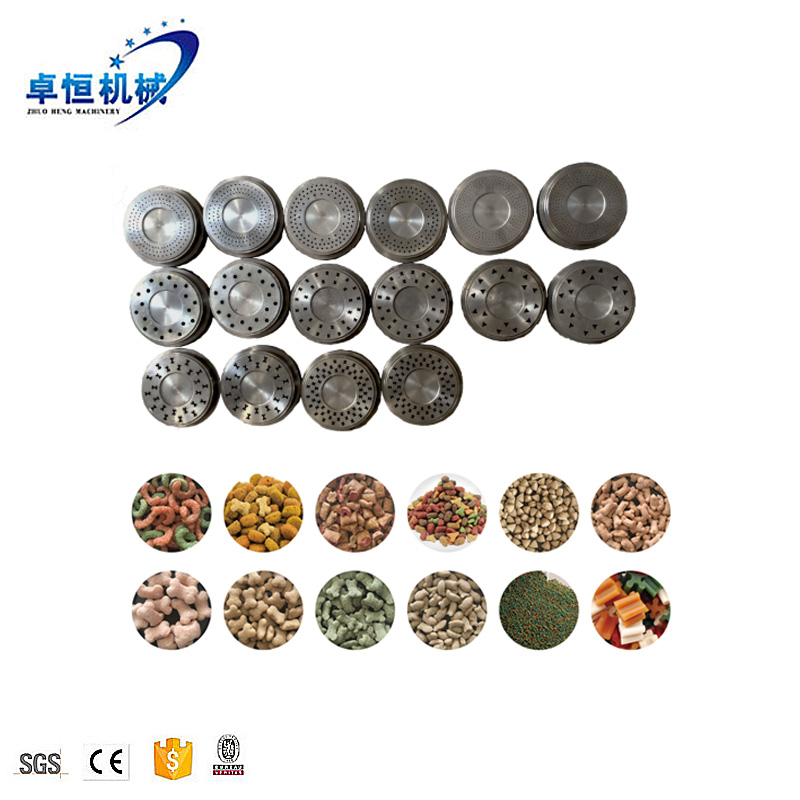

This pet food production line can produce between 150-2000kg/h. It can create different shapes of pet food by changing the dies in the extruder.
Technical Specifications
Overview
High-Efficiency Pet Food Production
This versatile production line is designed to manufacture high-quality dog, cat, and fish feed with a flexible output ranging from 150 to 2000 kg/h. By utilizing interchangeable extrusion dies, operators can produce a wide variety of shapes, sizes, and textures to meet diverse market demands. The system integrates advanced components from world-class brands to ensure reliable, continuous operation and superior nutritional consistency.
Key Performance Metrics
Performance Highlights
2,000 kg/h
Max Capacity
2 Years
Warranty
150 kg/h
Min Capacity
Technical Specifications
Model Specifications
| Model | Installed Power (kw) | Real Power (kw) | Output (kg/h) | Dimensions (mm) |
|---|---|---|---|---|
| ZH65 | 35 | 22 | 150 | 39000x1200x2200 |
| ZH70 | 50 | 37 | 250 | 41000x1500x2200 |
| ZH85 | 110 | 75 | 500 | Not Specified |
Process & Workflow
Production Process Flow
- Mixing system
- Extrusion system
- Drying system
- Flavoring line
- Cooling line
- Packing machine

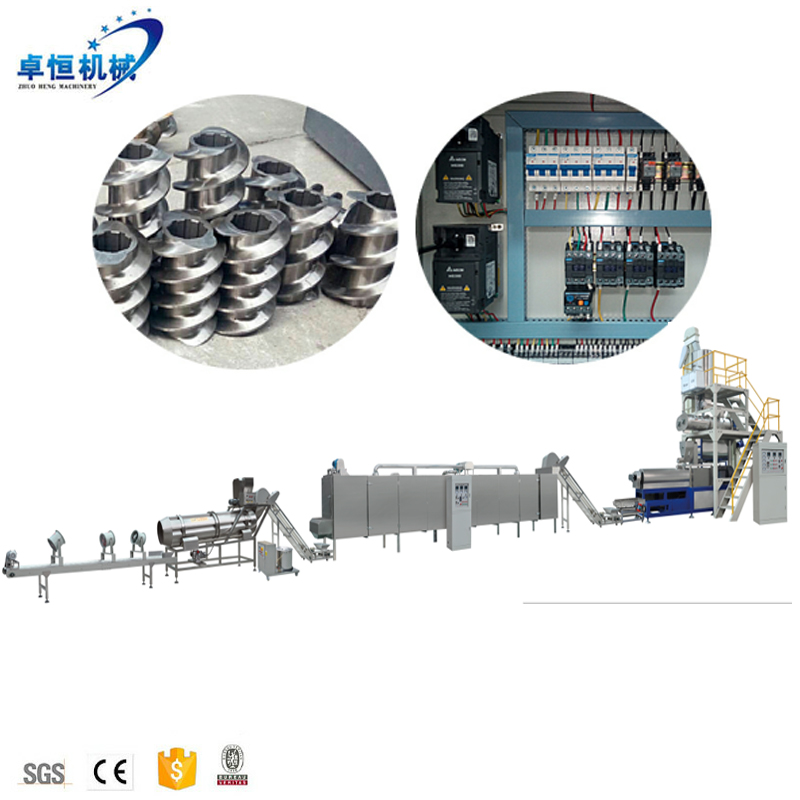

Component Quality
- Electrical & Mechanical Parts
- Siemens Main MotorABB RelayDelta InverterSchneider Electric PartsOmron Components38 CrMoAl ScrewNitriding Treatment
Raw Materials
Compatible Raw Materials
- Flour
- Corn Meal
- Meat Meal
- Fish Meal
- Bone Meal
- Soybean Meal
- Wheat Bran
- Starch
Equipment Advantages
Technical Advantages
- High flexible shielding cable (works -75°C to 115°C)
- 95% signal shielding scope for motor protection
- Wear-resistant barrel with bushing to extend screw life
- High-strength 38 CrMoAl nitrided screws
- Electrical wiring compliant with IEC and ANSI standards
Compliance & Shipping
Quality Standards
CE CertifiedSGS VerifiedGB/T29450-2013Food Grade Stainless Steel

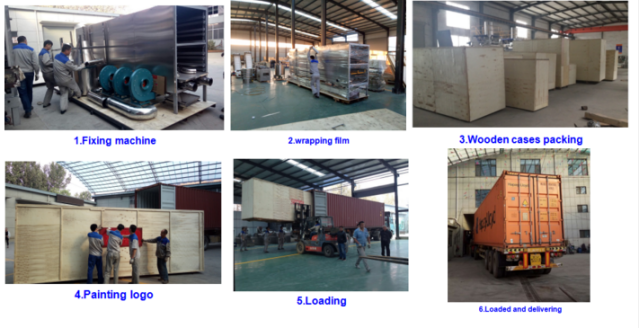

Logistics Preparation
- Machine fixing
- Protective film wrapping
- Wooden case packing
- Logo painting
- Forklift loading
