Pet Food Processing Line
This pet food processing line is designed for the production of fish feed, cat food, and dog food. The automated system ensures efficient and consistent production of high-quality pet food products.
Technical Specifications
Overview
Automated Pet Food Processing System
This comprehensive pet food processing line is designed for the efficient production of high-quality fish feed, cat food, and dog food. The system integrates multiple stages including mixing, transport, extrusion, roasting, and flavoring to ensure consistent product quality. Its automated design streamlines the manufacturing process, making it an ideal solution for scalable pet food production.
Suitable Applications
Fish FeedCat FoodDog Food

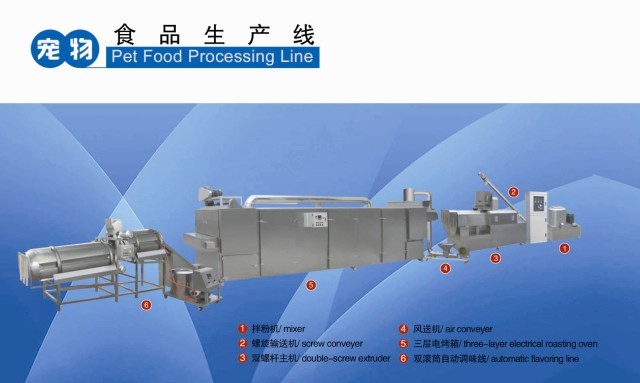

System Components
Production Line Components
- Mixer (Blending)
- Screw Conveyor
- Double-Screw Extruder
- Air Conveyor
- Three-Layer Electrical Roasting Oven
- Automatic Flavoring Line
- Extruder Systems
- Material FeedingBacklog SystemRotary CuttingHeating SystemTransmissionLubricationControl System
Technical Specifications
Model Comparison
| Model | Capacity (kg/h) | Installed Power (KW) | Consumption (KW) | Dimensions (m) |
|---|---|---|---|---|
| LD65-VI | 120-150 | 70 | 45 | 12 x 1.2 x 1.8 |
| LD85-II | 300-400 | 140 | 110 | 13 x 1.2 x 1.8 |
