Twin Screw Food Extruder
This twin screw extruder is designed for continuous food processing applications. It ensures precise control over extrusion parameters for consistent product quality in producing pet food, snacks, and cereals.
Technical Specifications
Overview
High-Performance Food Extrusion

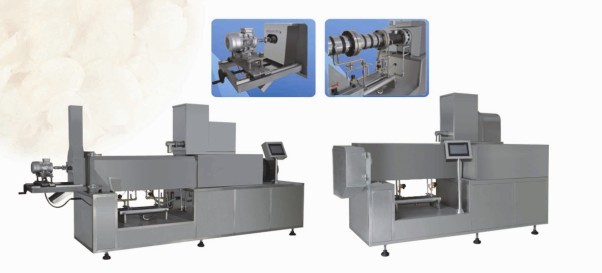

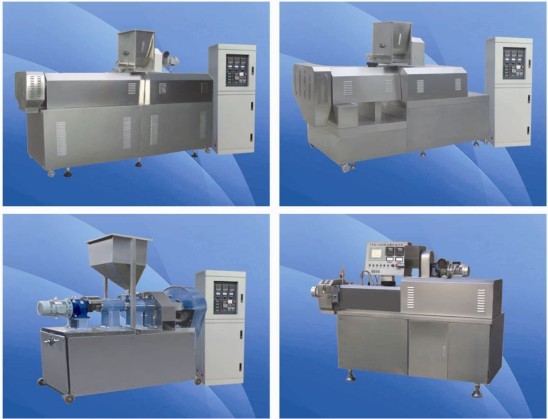

This double screw extruder is a versatile, robust machine engineered for continuous food processing applications, including extrusion cooking, texturization, and mixing. Featuring a hygienic stainless steel construction, it provides precise control over extrusion parameters via an integrated touchscreen interface. Its modular design allows for easy maintenance and customization, making it an ideal solution for producing a wide range of food products such as pet food, protein snacks, and cereals.
System Components
Design & Construction
- Stainless steel body construction
- Twin-screw mechanism for efficient mixing
- Adjustable feet for stability and leveling
- Modular design for easy customization
- Integrated touchscreen control panel
- Integrated Systems
- Material Feeding SystemBacklog SystemRotary Cutting SystemHeating SystemTransmission SystemLubrication SystemControl System

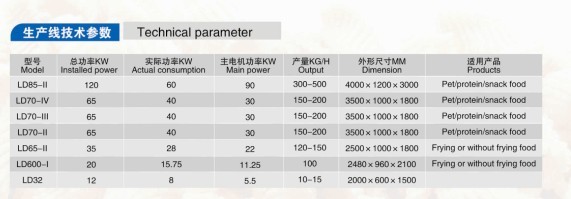

Technical Specifications
Model Performance Data
| Model | Total Power (kW) | Main Motor (kW) | Output (kg/h) |
|---|---|---|---|
| LD85-II | 120 | 90 | 300-500 |
| LD70-IV | 65 | 30 | 150-200 |
| LD70-III | 65 | 30 | 150-200 |
| LD70-II | 65 | 30 | 150-200 |
| LD65-II | 35 | 22 | 120-150 |
| LD600-I | 20 | 11.25 | 100 |
| LD32 | 12 | 5.5 | 10-15 |
Applicable Products
Pet FoodProtein SnacksCerealsFrying FoodNon-Frying Food
