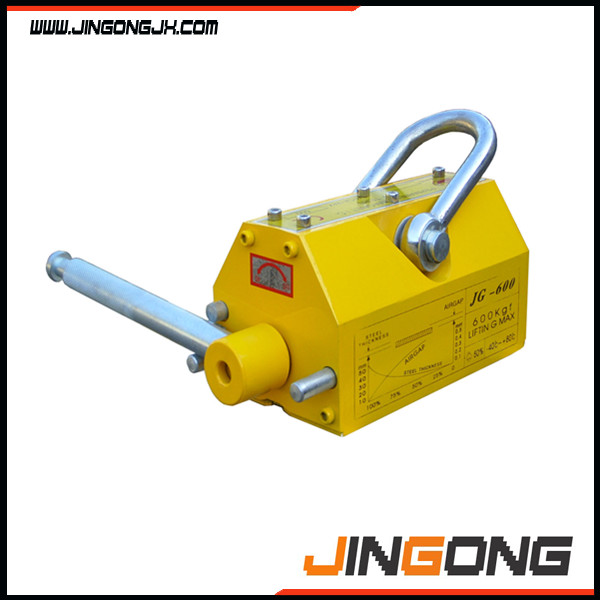

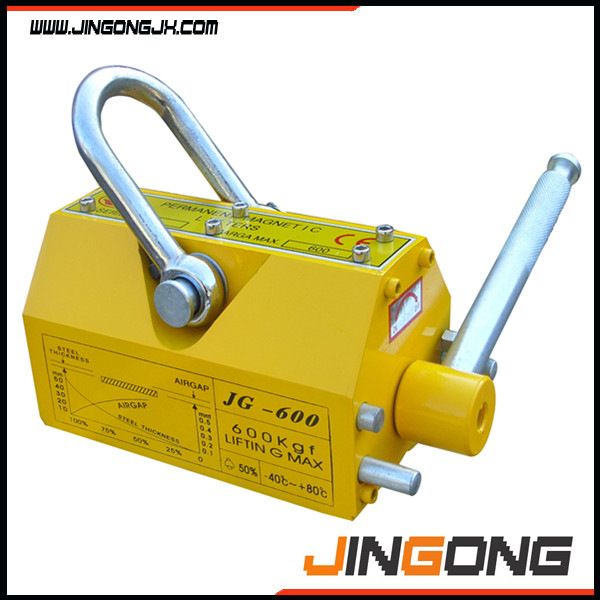

Permanent Magnetic Lifter for Steel Plates and Blocks
This permanent magnetic lifter is designed for lifting steel plates and blocks. It features a high-performance permanent magnetic material and a two-pole design for flat and round loads.
Technical Specifications
Overview
Industrial Permanent Magnetic Lifter
This industrial-grade permanent magnetic lifter is designed for the safe and efficient handling of steel plates and blocks. Utilizing high-performance neodymium magnets, it provides a reliable lifting solution for various industrial applications. The device is built for durability and consistent performance, featuring a temperature operating range suitable for diverse work environments.
Technical Specifications
Lifting Capacity Range
100 kg
Minimum Capacity
5,000 kg
Maximum Capacity
- Magnet Composition
- Neodymium Magnet
- Operating Temperature
- -40°C to +80°C
- Safety Factor
- 3.5
Model Selection
Model Specifications
| Rated Capacity (kg) | Max Breakaway Force (kg) | Dimensions (cm) | Net Weight (kg) |
|---|---|---|---|
| 100 | 300 | 24*16*16 | 3 |
| 400 | 1,200 | 32*20*17 | 10 |
| 600 | 1,800 | 37*30*21 | 20 |
| 1,000 | 3,000 | 43*28*24 | 37 |
| 2,000 | 5,000 | 52*30*31 | 68 |
| 3,000 | 7,500 | 60*30*31 | 87 |
| 4,000 | 10,000 | 68*30*41 | 113 |
| 5,000 | 12,500 | 73*40*48 | 198 |
Logistics & Services
Support
Overseas service center available
- Packaging
- Wooden casePallet
- Warranty
- One year
