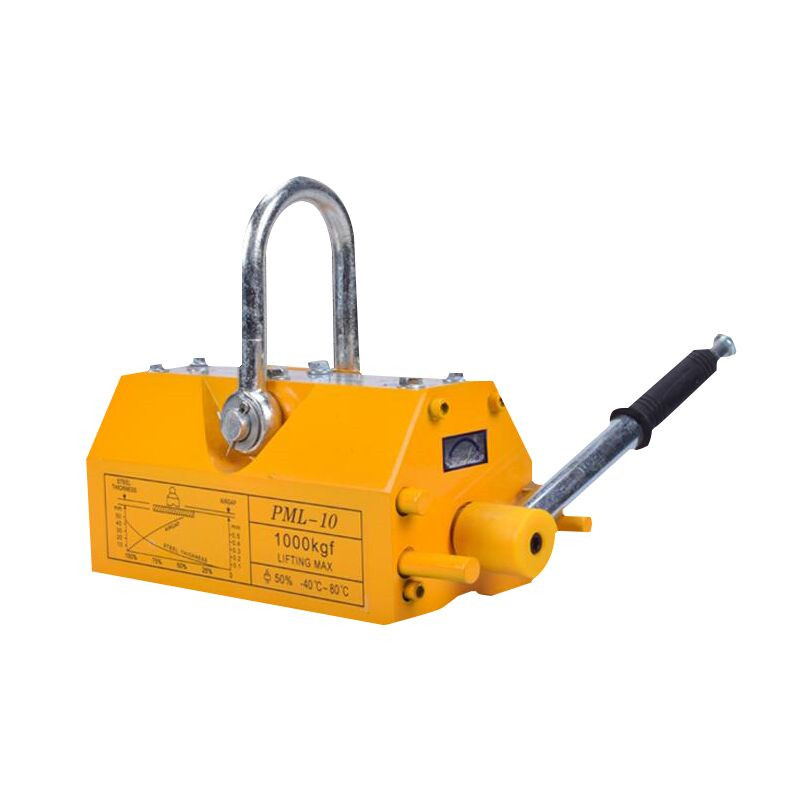

Permanent Magnetic Lifter
This magnetic lifter is designed for handling steel plates and other ferromagnetic materials. It provides a secure grip for safe and efficient lifting operations across a range of industrial applications.
Technical Specifications
Product Overview
High-Performance Magnetic Lifting
This permanent magnetic lifter utilizes advanced NdFeB magnets to provide a powerful, reliable solution for handling steel plates, blocks, and structural materials. Designed for industrial efficiency, it features an easy-to-use manual ON/OFF switch with an integrated locking device to prevent accidental release. The unit operates without the need for an external power supply, making it a versatile and safe tool for workshops, construction sites, and warehouses.
Performance Metrics
Lifting Capacity by Model
1,000 kgf
PML-10 Capacity
600 kgf
ML-6 Capacity
- Operating Temperature Range
- -40°C to +80°C
- Performance Note
- Lifting capacity is reduced to 50% at extreme temperature limits.
Technical Specifications
Safety Features
- Manual ON/OFF switching
- Locking device in ON position
- No external power supply required
Lifting Performance Factors
| Factor | Description |
|---|---|
| Steel Thickness | Direct impact on lifting capacity |
| Air Gap | Increases reduce effective lifting force |
- Magnet Type
- High-Energy NdFeB (Neodymium)
- Suitable Materials
- Flat MaterialRound MaterialSteel PlatesSteel Blocks
