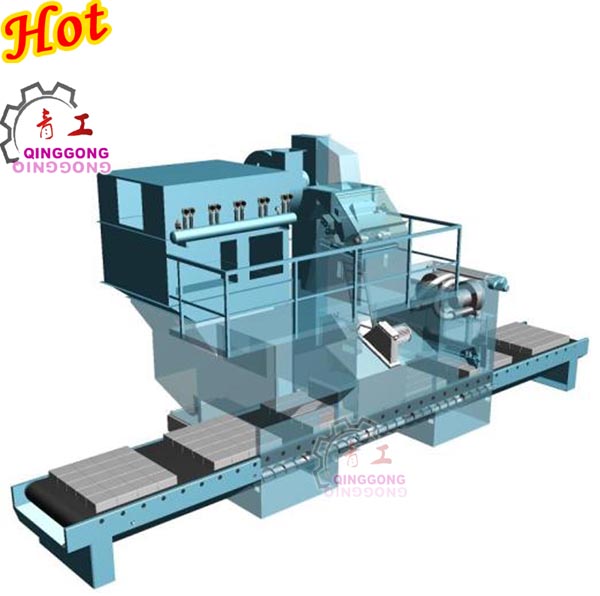

Paver Stone Surface Blasting Machine
This paver stone blasting machine is used for surface roughening of concrete blocks, granite, and marble. Abrasive media is propelled by a rapidly rotating blast wheel to etch the surface, resulting in a high-quality appearance.
Technical Specifications
Overview
Professional Surface Treatment
This industrial blasting machine is engineered to refine concrete stones, marble slabs, and kerbstones, creating a high-quality aesthetic finish by exposing natural aggregates. Designed for integration into production lines, it features a flexible control system and adjustable blast wheels to ensure uniform treatment of both horizontal and vertical surfaces. The machine utilizes a high-velocity abrasive process to deliver consistent results, enhancing product value while maintaining high throughput.
Key Features
Operational Highlights
- Uniform surface blasting for delicate materials
- Adjustable blast wheel positioning
- Integrated blow-off station for abrasive removal
- Siemens touch panel control system
- Hardened tool steel wear parts for longevity
- Suitable Materials
- Concrete BlocksMarble SlabsKerbstonesFence BlocksPaver Stones
Technical Specifications
Performance Metrics
6 m/min
Max Roller Speed
1,000 mm
Max Cleaning Width
Model Specifications
| Specification | QGSC-600 | QGSC-800 | QGSC-1000 |
|---|---|---|---|
| Cleaning Width (mm) | 600 | 800 | 1000 |
| Total Power (kW) | 43.4 | 46.9 | 47.7 |
| Dust Ventilation (m³/h) | 7000 | 10000 | 10000 |
