Technical Specifications
Overview
High-Visibility Industrial Signaling
The AD series indication lamps are compact and reliable LED signaling devices designed for industrial control panels, machinery, and electronic applications. These energy-efficient lamps provide clear, bright illumination to indicate equipment status, alarms, or operational modes, even in challenging environments. With a wide range of voltage options and colors, they offer a versatile and durable solution for professional signaling needs.
Technical Performance
Electrical Specifications
220 V
Standard Voltage
20 mA
Rated Current
Compliance
CE
- Light Source
- LED
Configuration Options
Supported Voltages
- AC/DC 6V
- AC/DC 12V
- AC/DC 24V
- AC/DC 48V
- AC/DC 110V
- AC/DC 220V
- AC 110V
- AC 220V
- AC 380V
- Available Colors
- RedPure GreenYellowPure BluePure WhiteOrangeAmber

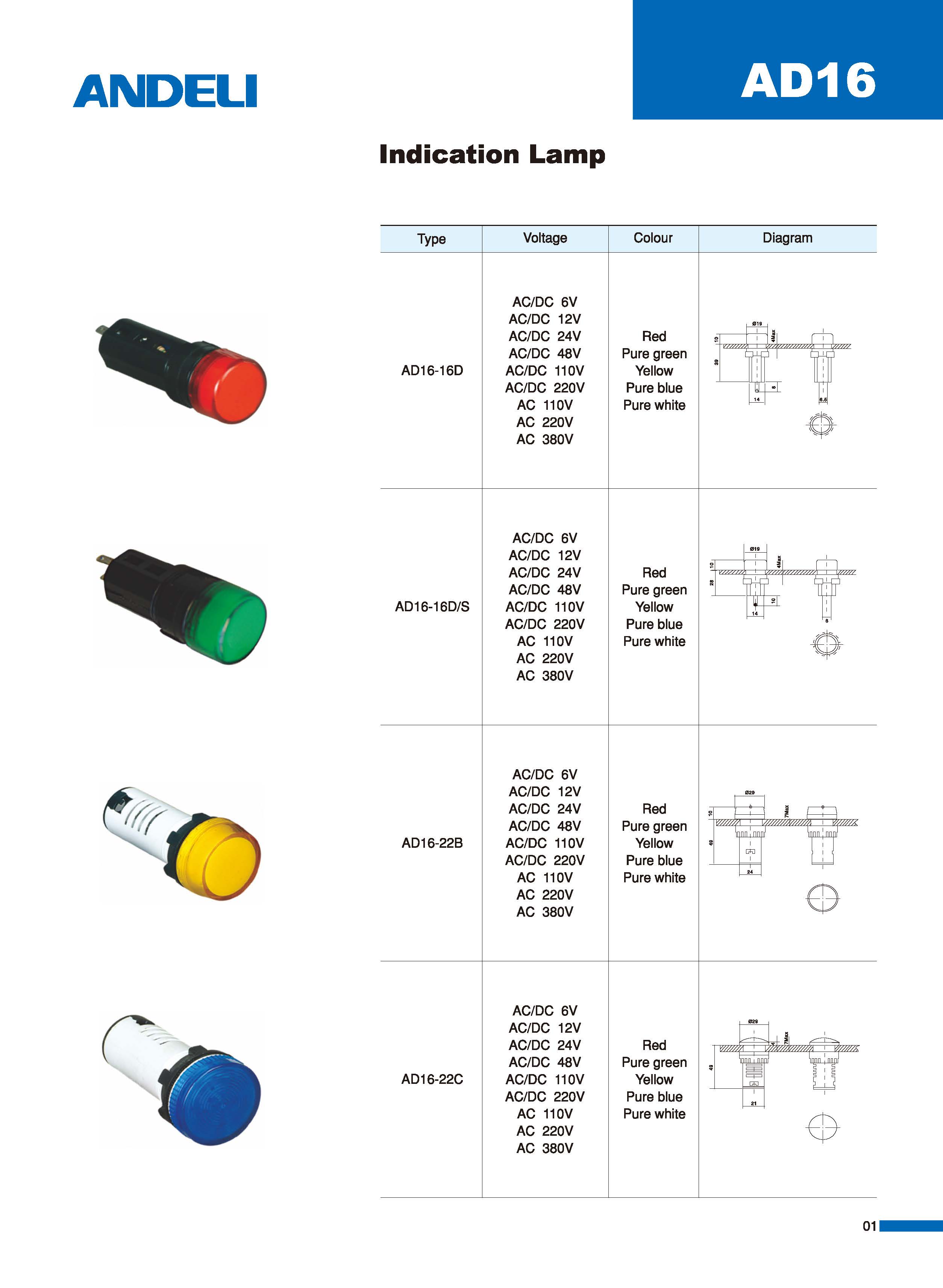

Model Variants
Model Specifications
| Model Type | Mounting Diameter | Features |
|---|---|---|
| AD16-16D | 16mm | Standard compact indicator |
| AD16-16D/S | 16mm | Short-body compact version |
| AD16-22B | 22mm | Standard panel mount |
| AD16-22C | 22mm | Extended head indicator |

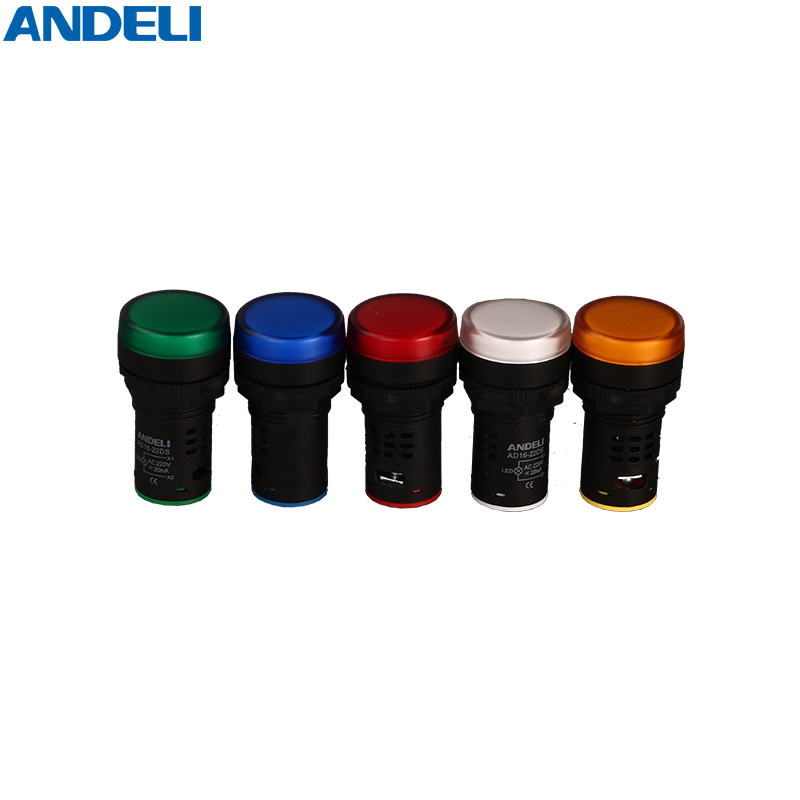

| AD16-22DS | 22mm | Standard 220V LED series |
Applications
Common Applications
- Industrial control panels
- Machinery status monitoring
- Alarm condition signaling
- Operational mode display
- Electronic equipment interfaces
