Technical Specifications
Product Overview
High-Performance Industrial Signaling
The AD22-22MFD series is a high-brightness LED-based industrial buzzer and indicator designed to replace traditional incandescent and neon lamps. Featuring long service life, low power consumption, and a compact lightweight design, these units provide reliable visual and auditory alerts in demanding environments. The polycarbonate lens offers high intensity and superior anti-surge performance, while the bolt-type connectors ensure a safe and convenient installation process.
Technical Performance
Key Performance Metrics
2.5 kV
Working Frequency Voltage
20 mA
Rated Current
2 MΩ
Insulation Resistance
- Voltage Wave Allowance
- ±20%
- Light Source Type
- LED Shining Chip

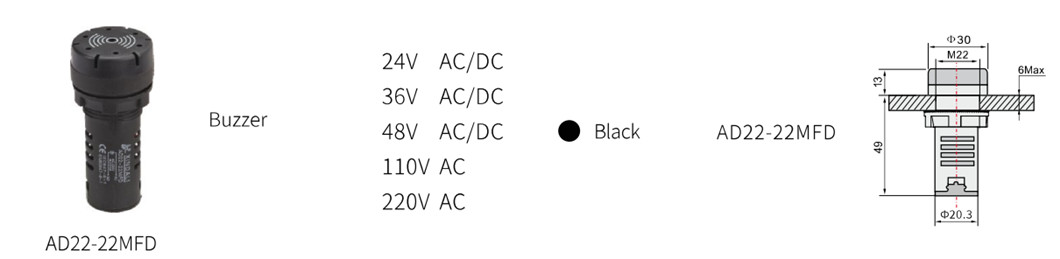

Installation & Dimensions
Mounting Specifications
| Parameter | Value |
|---|---|
| Mounting Diameter | M22 / Φ30 |
| Overall Length | 49mm |
| Base Diameter | Φ20.3mm |
| Max Panel Thickness | 6mm |
Compliance & Safety
- Standards Compliance
- CEEN60947-5-1IEC947-5-1
Application Range
Suitable Industries
- Electrical Power
- Telecommunications
- Machine Tools
- Watercraft & Marine
- Textile Machinery
- Printing Equipment
- Mining Machinery
Product Options
Available Voltage Options
24V AC/DC36V AC/DC48V AC/DC110V AC220V AC230V AC380V AC
- Case Material
- Industrial Plastic (Black)
- Lampshade Material
- High-intensity Polycarbonate
