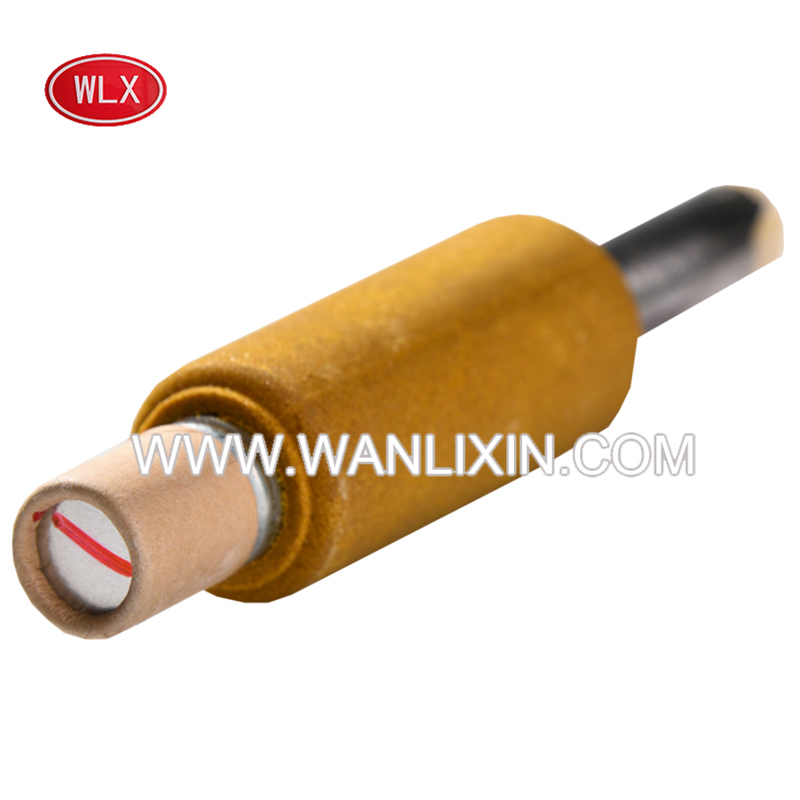

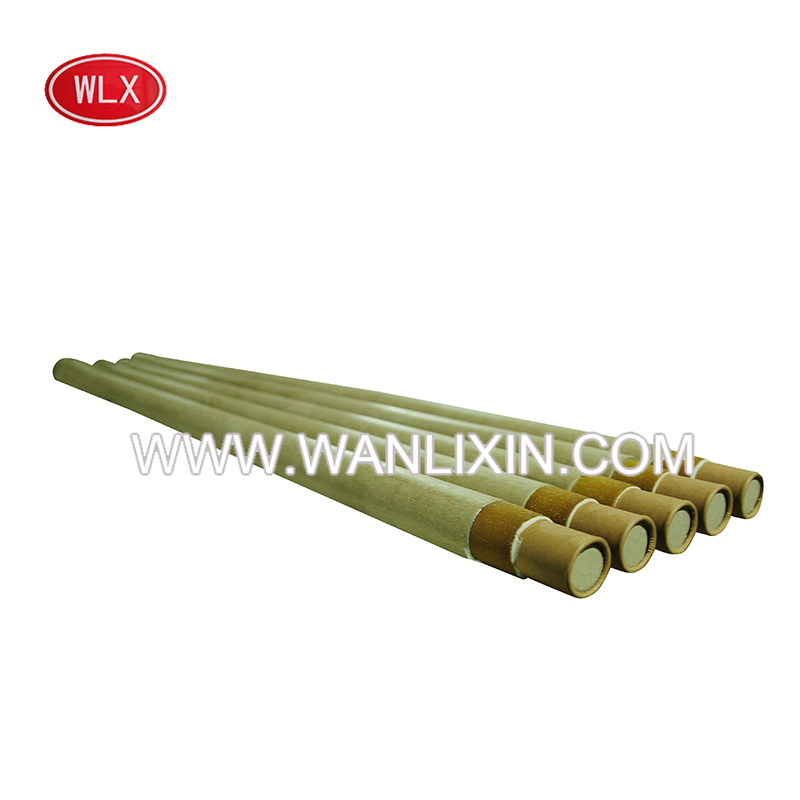

Oxygen Sensor Probe for Industrial Applications
This oxygen sensor probe is designed for accurate oxygen concentration measurements in various industrial applications. It features durable construction with a protective sleeve and is suitable for use in harsh environments, providing reliable and consistent data.
Technical Specifications
Overview
Industrial Oxygen Measurement Solution
Designed for demanding metallurgical environments, this oxygen sensor probe provides rapid and accurate measurements of oxygen activity and temperature in molten steel. Utilizing solid dielectric concentration cell technology, the probe ensures precise control over steelmaking operations, helping to optimize deoxidizer addition and improve overall steel purity. It is engineered for reliability in high-temperature applications ranging from converters to refining furnaces.
Technical Specifications
Temperature Range
1,200 °C
Min Temperature
1,750 °C
Max Temperature
Response Times
| Component | Time |
|---|---|
| Oxygen Cell | 6-8s |
| Thermocouple | 2-5s |
| Total Response | 10-12s |
- Oxygen Activity Range
- 1000 ppm
- Oxygen Potential
- -200 to +350 mV
Operational Details
Compatible Environments
- Converter
- Electric Furnace
- Refining Furnace
- LF (Ladle Furnace)
- RH
- DH
- Tundish
- Available Probe Types
- High Oxygen ProbeLow Oxygen Probe
- Measurement Efficiency
- 95 %
Customization Options
Available Lance Lengths
- 3m
- 3.5m
- 4m
- 4.5m
- 5m
- 5.5m
- Paper Tube Length
- 1.2m (customizable)
