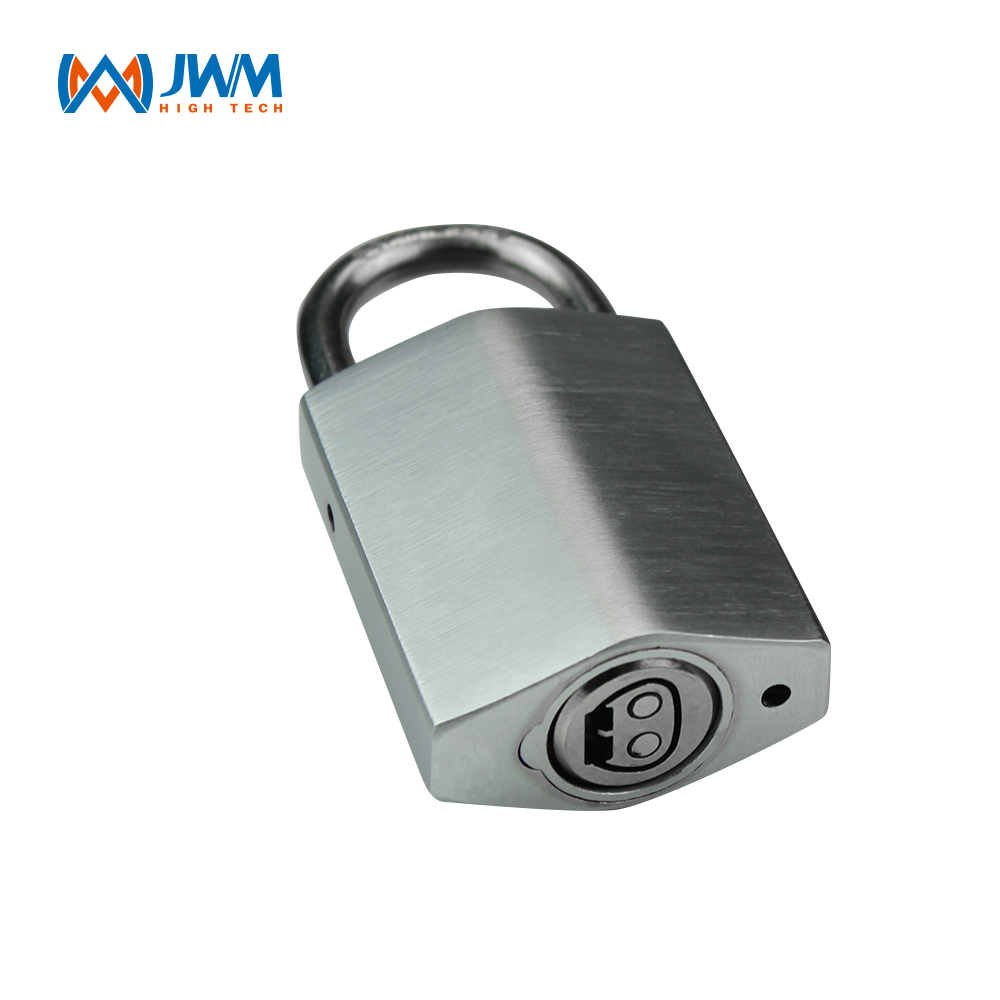

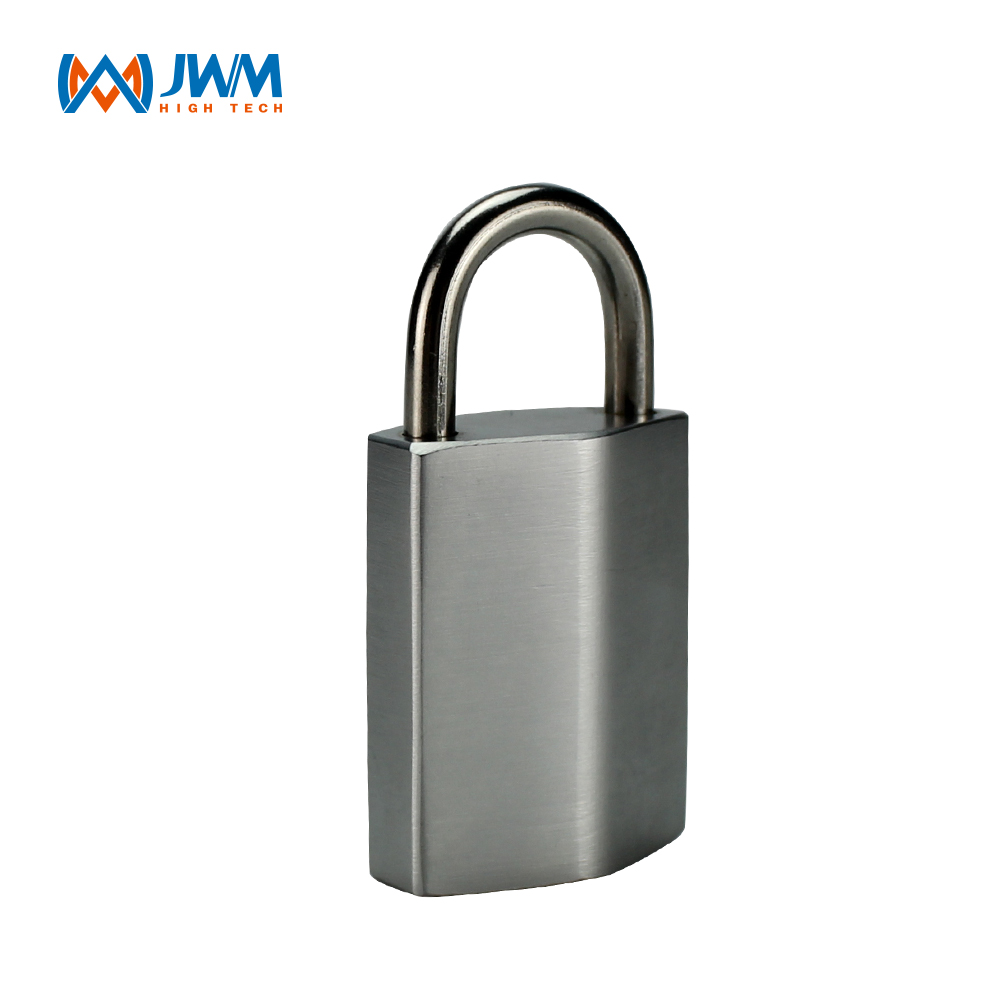

Outdoor Electronic Lock with Keyless Entry
This outdoor electronic lock allows for keyless entry, enhancing security and convenience. It is designed for various outdoor applications, including gates, sheds, and storage units.
Technical Specifications
Overview

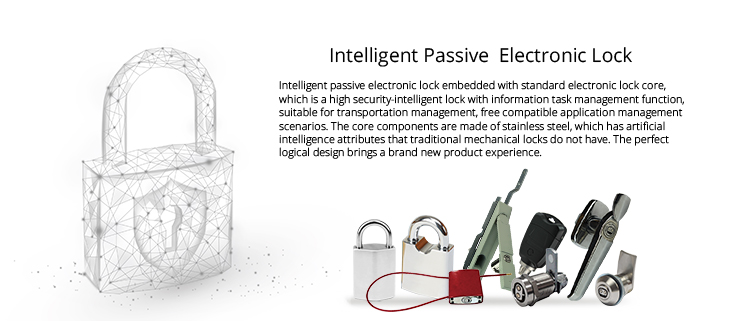

Intelligent Key-Centric Access Control

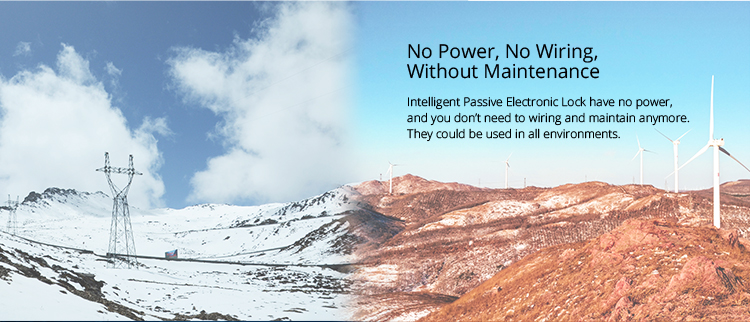

This advanced access control system utilizes smart, unique keys and electronic lock cylinders to provide superior security over traditional mechanical locks. The system operates without external power, wiring, or batteries, making it maintenance-free and suitable for all environments. Security managers can easily program keys to grant specific access and instantly disable them in case of loss or theft, while all unlocking events are automatically recorded for audit purposes.
System Features
- Key Features
- Keyless EntryNo External Power RequiredNo Wiring NeededMaintenance-FreeAudit Trail LoggingStainless Steel ComponentsTwo-Way Identity Authentication
Technical Specifications
Model Specifications
| Model | Material | Surface Treatment | Beam Diameter | IP Rating |
|---|---|---|---|---|

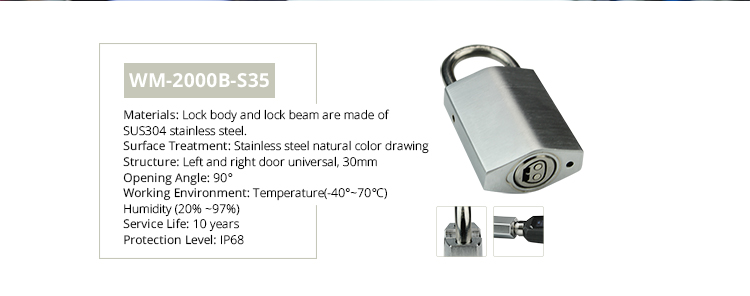

| WM-2000B-S35 | SUS304 Stainless Steel | Natural Color Drawing | N/A | IP68 |
| WM-2000B-S40 | SUS304 Stainless Steel | Copper Drawing Passivation | 6.5 mm | IP68 |
| WM-2000B-S45 | SUS304 Stainless Steel | Copper Drawing Passivation | 8 mm | IP68 |
| WM-2000B-S55 | SUS304 Stainless Steel | Sand Chrome | 10 mm | IP68 |
Environmental Performance
Operational Metrics
10 Years
Service Life
97 %
Max Humidity
- Working Temperature
- -40°C to 70°C
Certifications
Compliance & Standards
CE CertifiedRoHS CompliantQuality Management System Certified
