Technical Specifications
Overview
High-Efficiency Bagging Solution

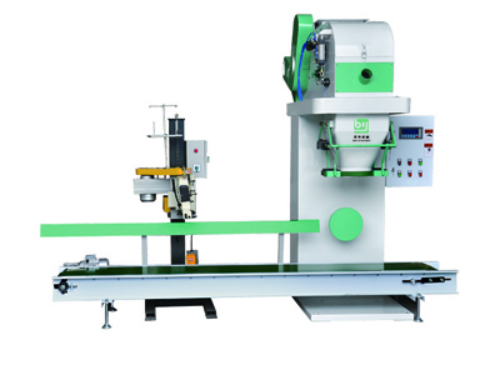

This belt-type open mouth bagging machine is engineered for the precise filling and packing of flaky, granular, and viscous materials. Featuring an automated workflow from filling and weighing to conveyor transport and sewing, it streamlines industrial packaging operations. Designed for reliability, the system incorporates high-quality components and stainless steel contact parts to ensure durability and hygiene in demanding environments.
Performance Metrics
Key Performance Indicators
25 kg/bag
Weighting Range
0.2 %FS
Precision
220 bags/hour
Max Output Capacity
Technical Specifications
Machine Specifications
| Parameter | Value/Detail |
|---|---|
| Model Type | LCS-PD |
| Power Consumption | 2.2 - 3 KW |
| Air Resource | 0.4 - 0.6 Mpa |
| Conveyor Dimension | 3000 x 400 mm |
| Reference Weight | 300 - 400 kg |
- Power Supply Options
- 380V/50Hz/3 phase220V/60Hz/1 phase
Construction & Materials
Build Materials
- Product contact parts: SUS304 Stainless Steel
- Structural frame: Carbon Steel
Core Components
| Component | Function |
|---|---|
| Material Level Sensor | Monitoring |
| Weighing Controller | Control |
| Load Cell Sensors | Weighing |
| Cylinder & Valves | Pneumatic Control |
| Motor | Drive System |
| Sewing Machine | Bag Closing |
