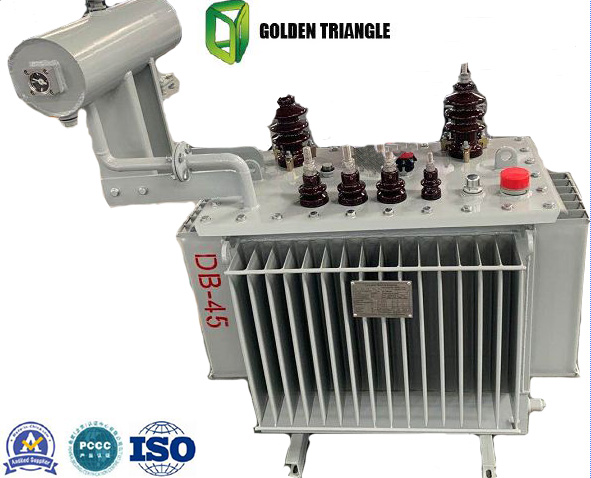

Oil Immersed Transformer
This oil-immersed transformer is designed for outdoor use, providing efficient and reliable voltage transformation. Its high-quality construction and low losses result in significant energy savings.
Technical Specifications
Product Overview
High-Efficiency Oil-Immersed Distribution Transformer
This three-phase oil-immersed distribution transformer features a high-quality cold-rolled silicon-steel iron core and oxygen-free copper windings. Designed for superior reliability, it employs a spiral coil structure with longitudinal oil paths to optimize cooling. It provides significant energy savings and reduced operating costs, making it a high-efficiency solution for power distribution needs.
Technical Features
Core and Winding Materials
- High-quality cold-rolled silicon-steel plate core
- Oxygen-free copper windings
- Wooden laminating insulation pieces
- High-quality rubber sealing materials
- Cooling Mechanism
- Corrugated tank with wave-wing cooling fins instead of traditional tubing.
Compliance and Quality
- Certifications & Standards
- ISO 9000PCCC
Performance
Key Performance Benefits
- Low load loss due to high-conductivity copper
- Low no-load loss through silicon-steel core
- Enhanced anti-short circuit current capability
- Improved heat dissipation with spiral coil design
