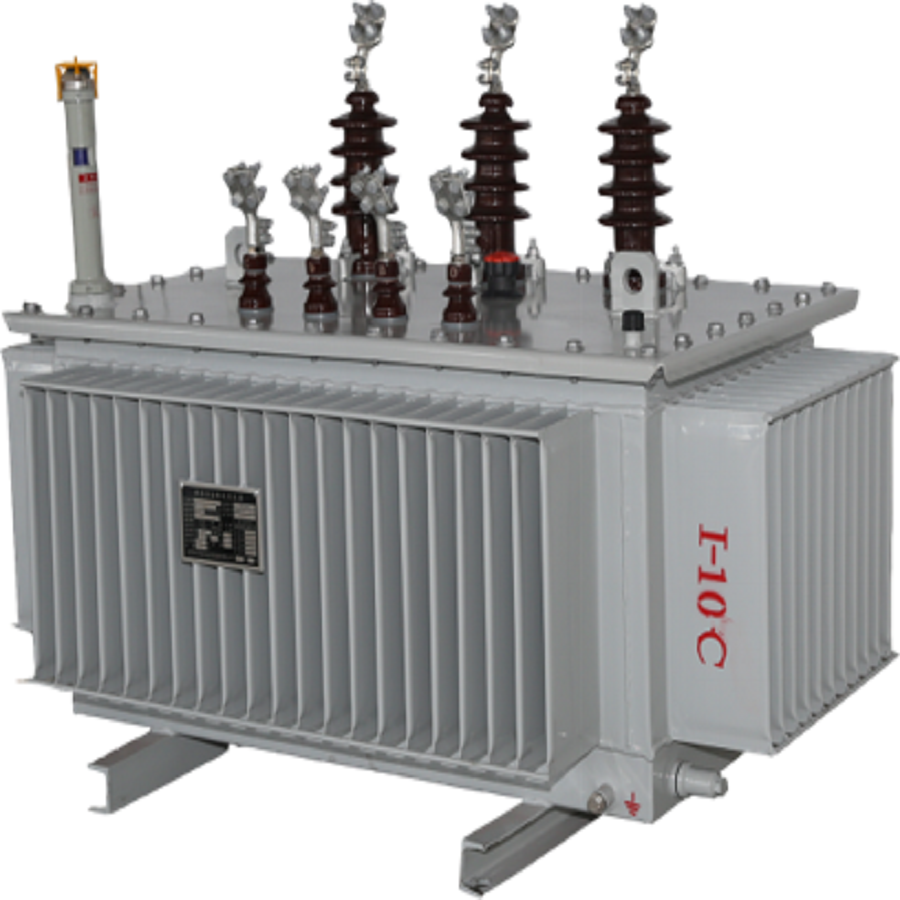

Oil-Immersed Power Transformer
Oil-immersed transformers are composed of an iron core, coil, clamp, oil tank, and other components. They are small and light, with low loss, low temperature rise, low noise and a strong ability to withstand sudden short circuits.
Technical Specifications
Product Overview
High-Efficiency Power Transformation
This oil-immersed transformer is engineered for critical roles in power transmission and transformation systems. By integrating advanced technology with specialized manufacturing processes, the unit achieves a 'three low and one strong' design profile: low loss, low temperature rise, low noise, and high resistance to sudden short-circuit events. It is a robust solution designed to ensure stable and efficient power delivery across demanding industrial and utility environments.
Technical Features
Core Components
- Iron core
- Coil winding
- Clamp system
- Oil tank
- Insulating bushing
- Tap switch
- Gas relay
- Key Advantages
- Low LossLow Temperature RiseLow NoiseShort-Circuit Resistant
Applications
Common Applications
Rural DistributionUrban Power GridIndustrial & MiningThermal PowerHydropowerRail InfrastructurePetrochemical
Performance Metrics
Performance Highlights
1 High
Short Circuit Resistance
1 Low
Noise Level
1 Low
Energy Loss
