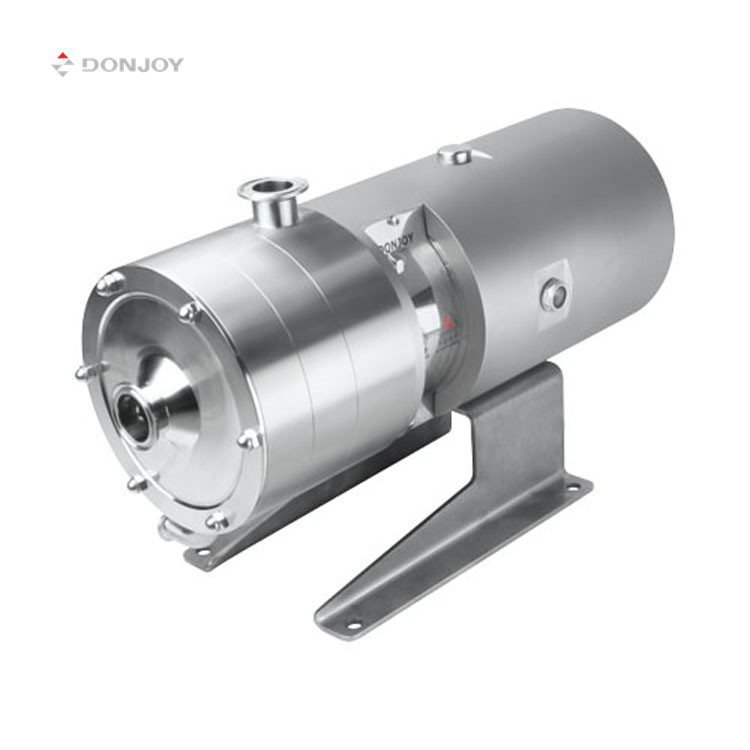

Multistage Rotor-Stator Homogenization Pump
The multistage rotor-stator homogenization pump is designed for efficient emulsification and homogenization of fluids. Constructed from stainless steel, it provides precise control over particle size reduction and uniform mixing.
Technical Specifications
Overview
High-Efficiency Homogenization Solution
The JZ3 series is an in-line continuous production emulsified homogenizing pump engineered for high-performance industrial applications. Utilizing a sophisticated 12-layer rotor-stator system, this pump delivers precise shearing, refining, and emulsification to improve production efficiency and material quality. It is designed to replace traditional, less optimized production processes across sectors including food, beverage, pharmaceutical, and fine chemical manufacturing.
Performance Metrics
Maximum Flow Rate
50 m3/h
Max Flow Rate
Maximum Power
55 KW
Max Power
- Operating Temperature
- -20°C to 140°C
Technical Capabilities
Mechanical Seal Options
- Single seal
- Double seal
- Media Refinement
- ≤ 200μm (approx. 100 mesh)
- Inlet/Outlet Connections
- ThreadClampFlangeAseptic Flange
Material and Construction
Material Grades
- 304
- 316L
- 1.431
- 1.4404
- ASME BPE 316L
- 1.4435 NB2 (Fe≤0.5%)
Surface Treatment (Ra)
≤ 0.8μm≤ 0.6μm≤ 0.4μm
Compliance and Standards
Certifications
| Standard | Reference |
|---|---|
| 3-A | 02-10 (N.O.1579) |
| EC Machinery Directive | MD/06/42-EC (N.O.70521616101-00) |
| FDA | 177.2600 |
| USP | CLASS-II |
| EU Regulation | EG/VO1935/2004 |
