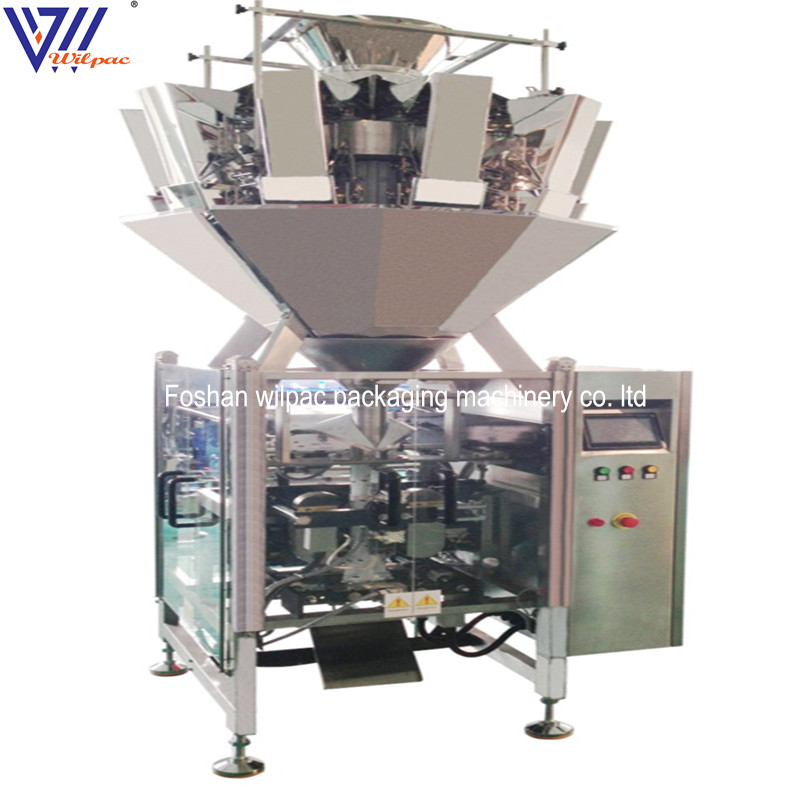

Multi-Head Weigher with VFFS Packaging Machine
This integrated system combines a multi-head weigher with a vertical form-fill-seal (VFFS) machine. The weigher accurately measures product portions, while the VFFS machine forms, fills, and seals bags.
Technical Specifications
Overview
Integrated Weighing & Packaging Solution
This versatile 2-in-1 machine combines high-precision multi-head weighing with vertical form-fill-seal (VFFS) technology to streamline production workflows. Designed for efficiency, it features PLC control with an intuitive man-machine interface, ensuring easy operation and maintenance. The system utilizes a double servo motor and optical tracking to maintain high accuracy and speed, making it an ideal choice for packaging snacks, frozen foods, grains, and small hardware.
Performance Metrics
Max Weighing Speed
70 WPM
Max Weighing Speed
Max Packing Speed
60 bags/min
Max Packing Speed
Technical Specifications
- Model
- WP-EC461016
- Weigher Heads
- 10
- Weighing Accuracy
- ±0.1~1.5g
- Max Single Dump Capacity
- 1000 g
- Power Supply
- 4.6KW/220V/50(60)Hz
Packaging Capabilities
- Compatible Bag Types
- Pillow bagGusset bagSeal type bag
- Film Thickness Range
- 0.04~0.15mm
- Film Width
- 140~460mm
Physical Dimensions
- Machine Dimensions (L*W*H)
- 1503*1193*2459mm
- Machine Weight
- 600 kg
Applications
Suitable Products
- Snack food
- Frozen food
- Coffee beans
- Oatmeal
- Granulated sugar
- Salt
- Rice
- Pet food
- Small hardware
