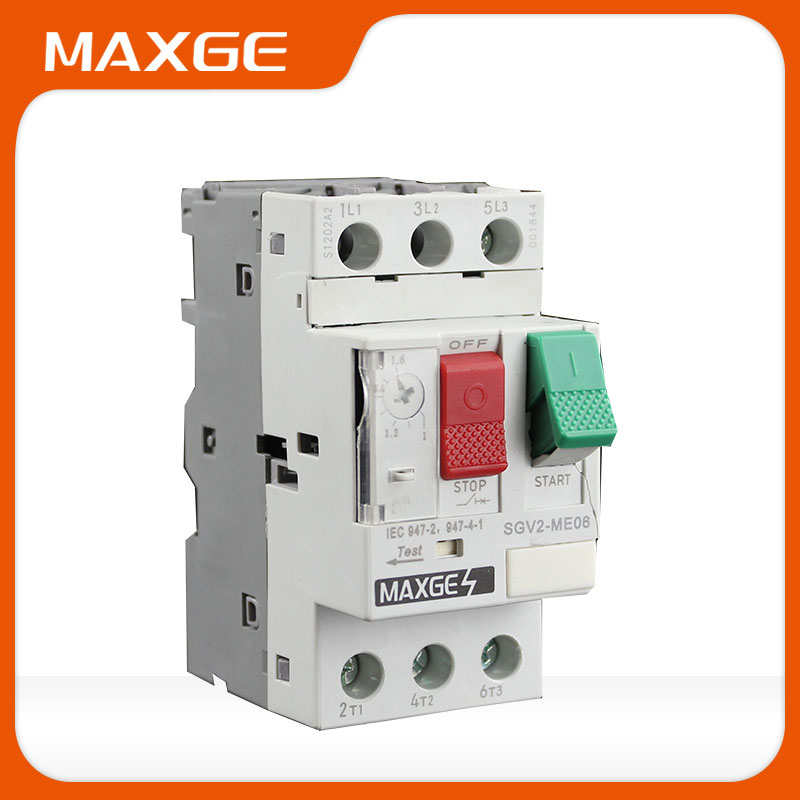

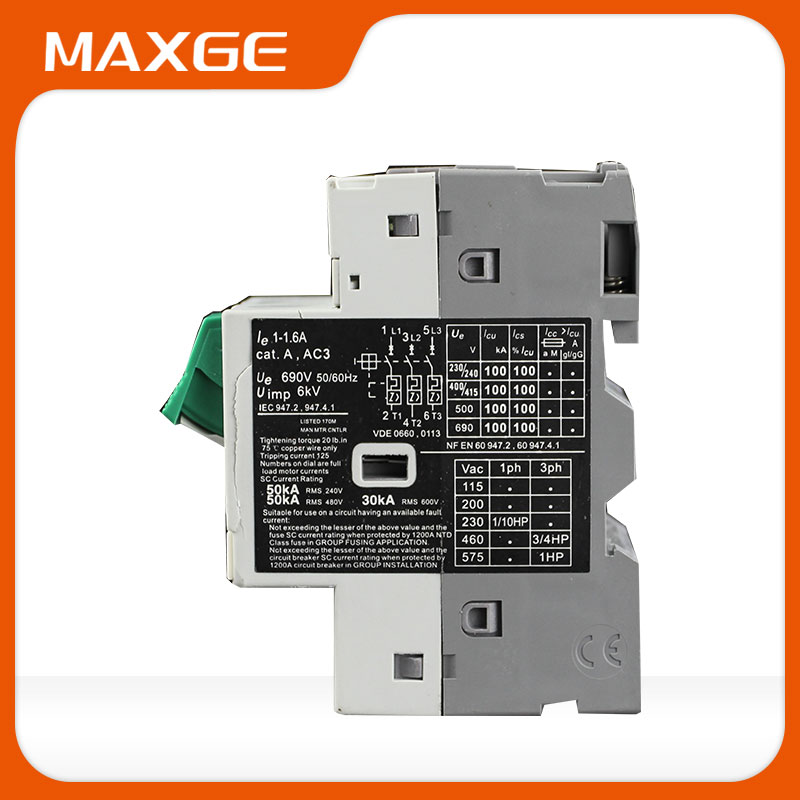

SGV2-M Series Motor Protection Circuit Breaker
The SGV2-M series motor protection circuit breaker provides comprehensive protection for electric motors against various electrical faults. It is designed to handle motor start times, over-current, short circuits, phase imbalances, and overheating. This versatile device ensures operational safety through features like manual start/stop controls and a built-in test function, making it suitable for demanding industrial and commercial applications.
Electrical Ratings
- Rated Insulation Voltage (Ui)
- 690 V
- Rated Operational Voltage (Ue)
- 230/240, 400/415, 440, 500, 660/690
- Rated Impulse Withstand Voltage (Uimp)
- 8 kA
Performance Metrics
Mechanical Life
20,000 times
Mechanical Life
Electrical Life (AC-3)
10,000 times
Electrical Life (AC-3)
Standards and Compliance
Approvals
CE
- Standards
- IEC60947-2IEC60947-4-1
Environmental and Installation
- Degree of Protection
- IP 20; IP65 with enclosure
- Ambient Air Temperature
- -5 to +40 °C (max 95% humidity)
- Max Operating Altitude
- 2000 m
- Tightening Torque
- 1.7 N.m
