Motor Protection Circuit Breaker 1-1.6A
This motor protection circuit breaker provides overload and short-circuit protection for electric motors. It features adjustable current settings from 1 to 1.6A, visual trip indication, and a test function for verifying operational readiness.
Technical Specifications
Product Overview

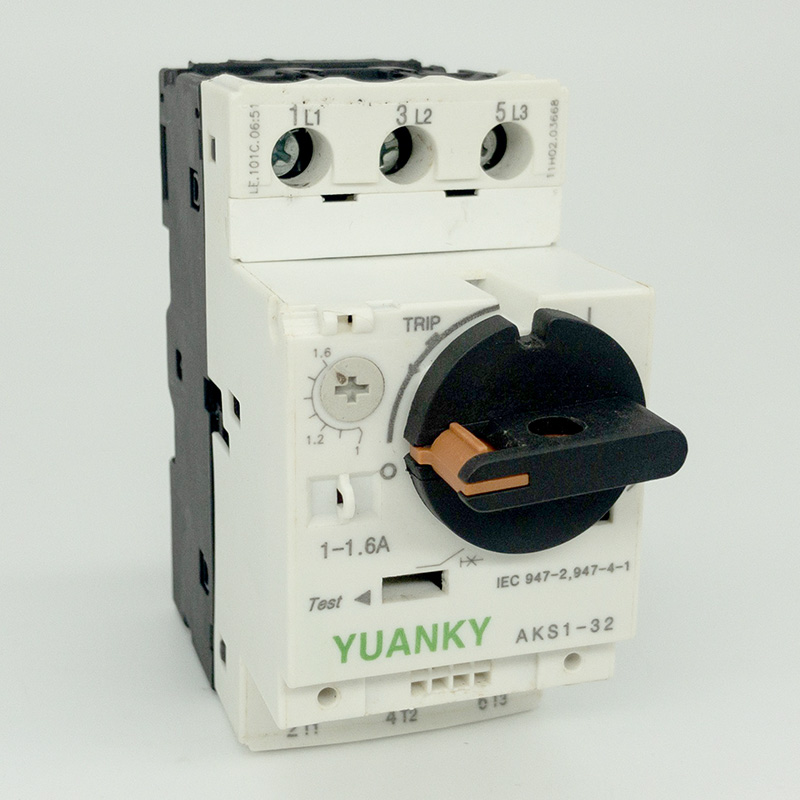

Motor Protection Circuit Breaker
This motor protection circuit breaker is engineered to provide comprehensive electrical safety for electric motors. It features a compact design suitable for DIN rail mounting, ensuring efficient space utilization in control panels. With adjustable current settings and built-in testing functionality, it offers reliable overload and short-circuit protection for three-phase systems.
Technical Specifications
Adjustable Current Range
1 A
Minimum Current
1.6 A
Maximum Current
- Model Series
- AKS1-32
- Compliance Standards
- IEC 947-2IEC 947-4-1
Features & Functionality
Protection Functions
Overload ProtectionShort-circuit Protection
Operational Features
- Adjustable current settings
- Visual trip indication
- Test function for operational readiness
- DIN rail mounting compatible
- Three-phase system support
Connection Details
Terminal Configuration
| Terminal Type | Label |
|---|---|
| Input | 1L1, 3L2, 5L3 |
| Output | 2T1, 4T2, 6T3 |
- Connection Method
- Screw terminals
