Motor Control Kit for RM6 Switchgear
This motor control kit is designed for use with Schneider RM6 intelligent SF6 insulated medium voltage ring main units. It utilizes electrical energy storage to achieve electric opening and closing.
Technical Specifications
Product Overview
Intelligent RM6 Switchgear Automation

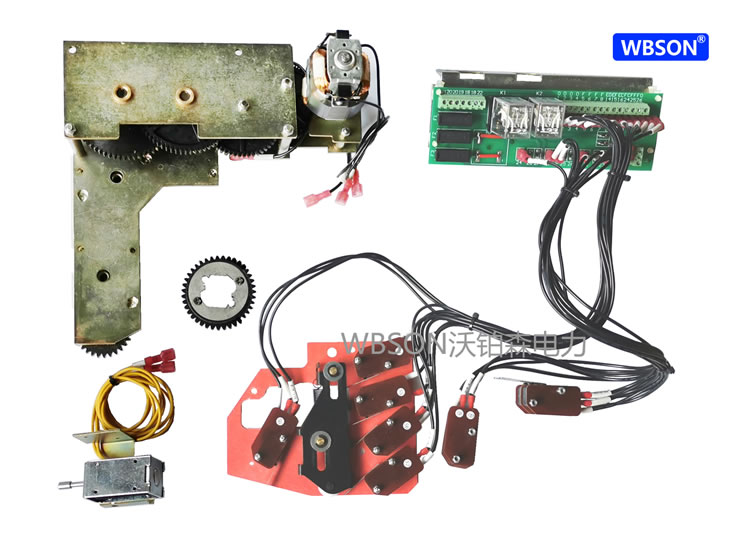

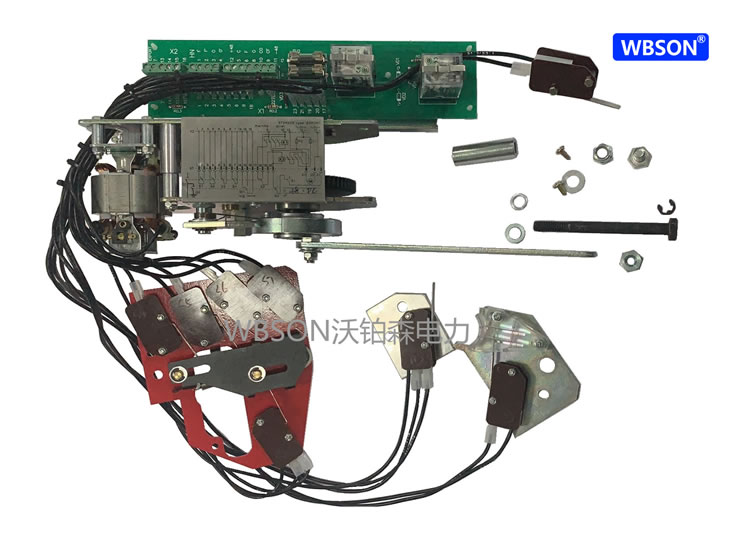

The WBS040 Motor Control Kit is designed for intelligent medium voltage ring main units, enabling remote and local electric opening and closing operations. Featuring a robust, independently designed motor with high torque and long service life, the system ensures reliable performance for power transmission and distribution. Installation is streamlined with a design that requires no adjustments, while the integrated circuit board and plug-in wiring method significantly enhance production efficiency for secondary wiring tasks.
Technical Specifications
Cabinet Compatibility
| Model Code | Application |
|---|---|
| WBS040-I | Incoming Line Cabinet |
| WBS040-Q | Outgoing Line Cabinet |
| WBS040-B | Circuit Breaker Cabinet |
- Electric Operating Device Code
- WBS040
- Applicable Voltages
- DC 24VDC 48VDC 110VDC 220VAC 110VAC 220V
Features & Capabilities
System Capabilities
- Remote and local switching operations
- Local opening and closing control
- Local indication of load switch, grounding switch, and fuse status
- Remote signaling of status changes
- Direct application to RTU for communication
Construction Materials
Imported Engineering PlasticsAluminum AlloyIntegrated Circuit Board
