Motion Detection Sensor

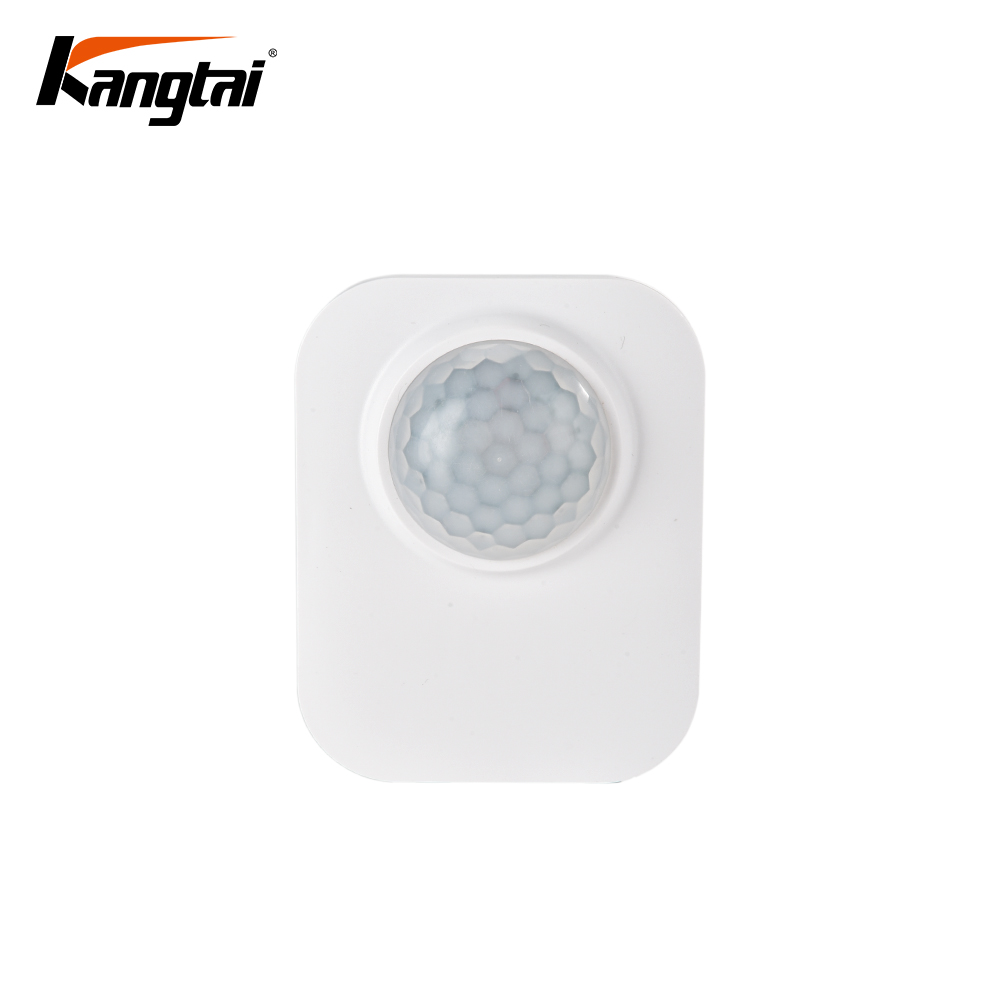

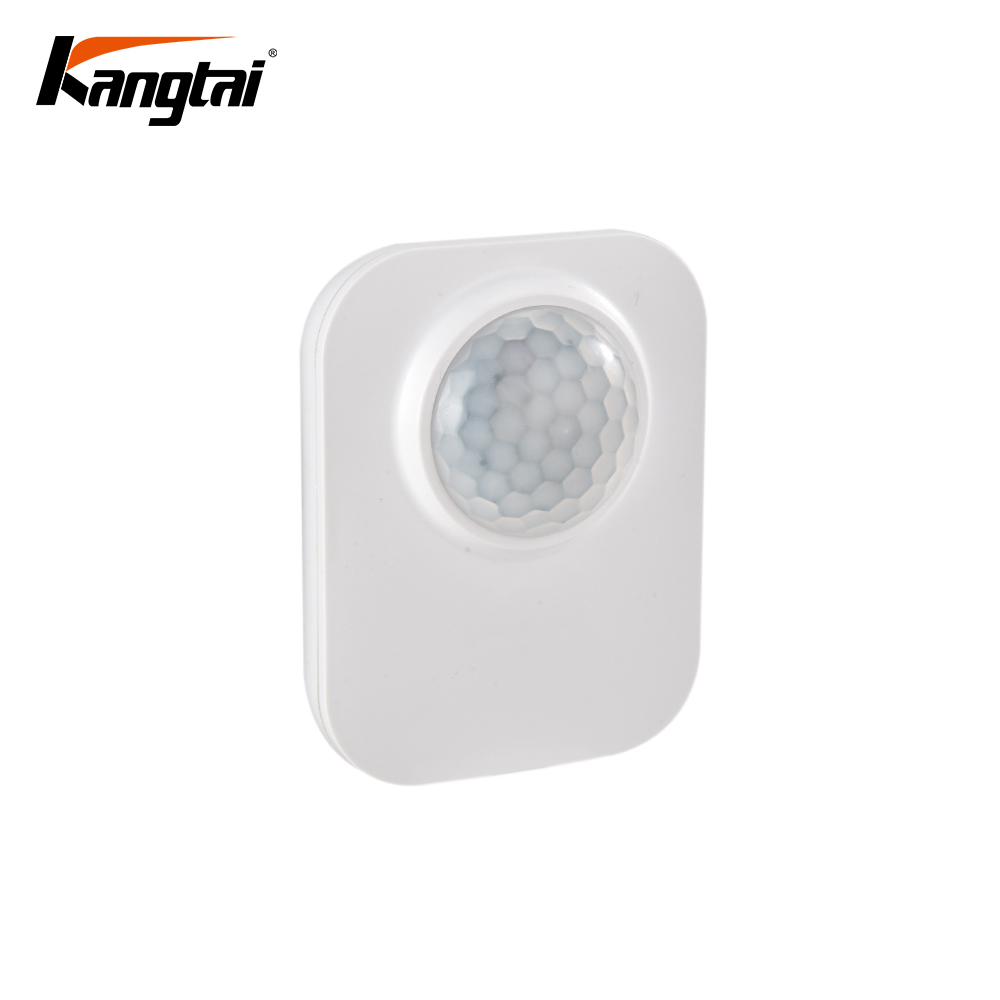

This compact motion sensor detects movement within its vicinity. Its rounded rectangular housing and dome-shaped lens enable wide-angle detection for security and automation applications.
Technical Specifications
Product Overview
High-Performance Motion Detection
This wireless motion detection sensor is designed for seamless integration into security, lighting control, and home automation systems. Featuring a wide 110-degree detection angle and a range of up to 40 meters, it provides reliable coverage for indoor environments. The unit operates on the 433.92MHz frequency and is engineered for longevity with a battery life of approximately one year.
Technical Specifications
- Operation Frequency
- 433.92MHz
- PIR Detection Range
- 7 m
- PIR Detection Area
- 110 deg
- Wireless Range
- 40 m
Power & Performance
- Power Supply
- 1x CR2477 3V DC
- Battery Lifetime
- approx. 1 year
Compliance
- Certifications
- CERED Certified
Performance Metrics
Key Performance Metrics
40 m
Max Wireless Range
7 m
Min Detection Range
110 deg
Detection Angle
