Technical Specifications
Product Overview
High-Performance Circuit Protection

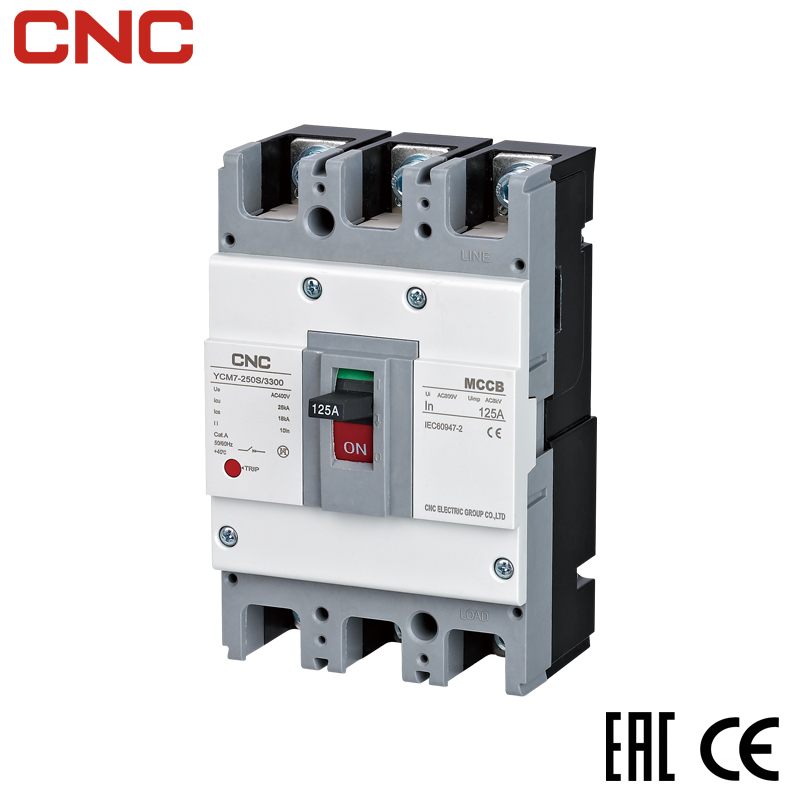

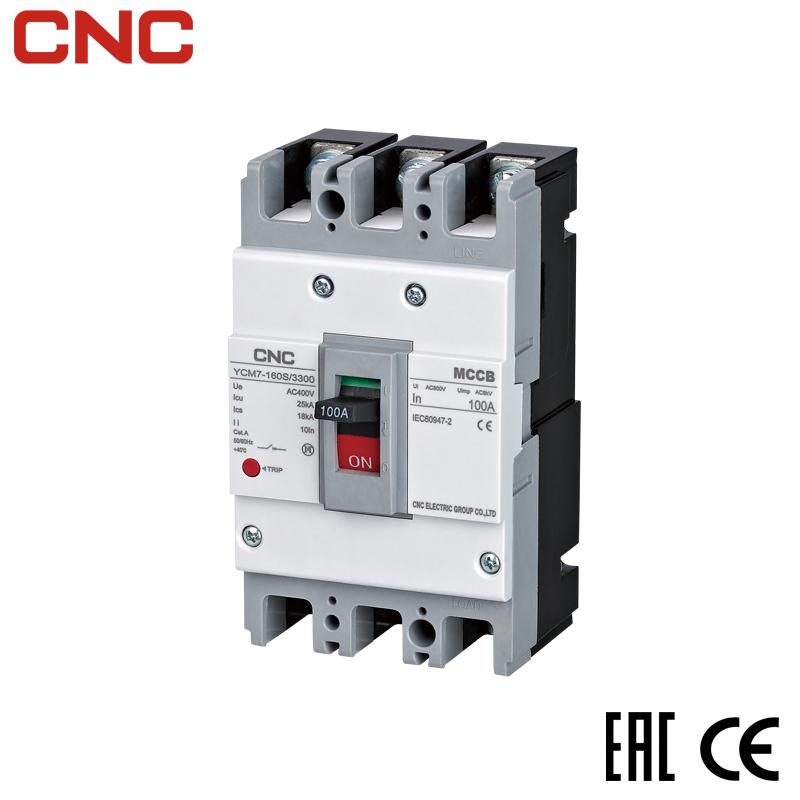

The YCM7 series is a next-generation Molded Case Circuit Breaker (MCCB) engineered for reliable power distribution in AC 50Hz networks. It provides comprehensive protection against overloads, short circuits, and undervoltages to safeguard critical electrical facilities. With a robust design that supports both vertical and horizontal installation, this breaker is an ideal solution for industrial and commercial distribution systems.
Key Metrics
Performance Ratings
400 V
Rated Working Voltage
800 V
Max Rated Insulation Voltage
40 °C
Max Ambient Temp
Technical Specifications
Operational Data
| Feature | Specification |
|---|---|
| Rated Frequency | 50/60 Hz |
| Max Rated Current | 800 A |
| Installation | Vertical/Horizontal |
| Category | Cat. B |
Status Indicators
- ON/OFF Indicator
- Trip Indicator
- Alarm Status
- Work Status
- Certifications
- IEC60947-2CEEAC
