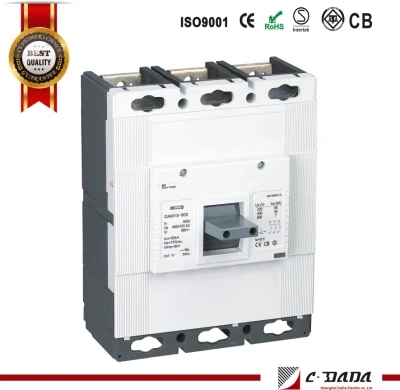

800A Molded Case Circuit Breaker
This molded case circuit breaker is designed for electrical power distribution and protection. It provides overload and short circuit protection.
Technical Specifications
Overview
Reliable Power Distribution and Protection
The DAM1 series molded case circuit breakers are engineered for robust power distribution and comprehensive circuit protection. Designed to handle operational actuation and tripping of electric circuit parts, these units effectively manage current in normal modes and provide critical safety during short circuits or overloads. With a versatile design supporting rated currents up to 800A, they are an essential component for maintaining stability in 400V electrical systems.
Electrical Ratings
Rated Current
800 A
Rated Current (In)
- Rated Voltage (Ue)
- 400 V
- Insulation Voltage (Ui)
- 690 V
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
Performance
Breaking Capacity Specifications
| Parameter | Value |
|---|---|
| Ultimate Breaking Capacity (Icu) | 50kA - 85kA |
| Service Breaking Capacity (Ics) | 50kA - 75kA |
Certifications
- Standards & Compliance
- ISO9001CERoHSIntertekCBIEC
Configuration
Available Pole Configurations
- 3-Pole
- 4-Pole
