Molded Case Circuit Breaker 63-800A
This molded case circuit breaker is designed for AC power distribution systems. It provides protection against overloads and short circuits.
Technical Specifications
Product Overview
Professional Power Distribution Protection

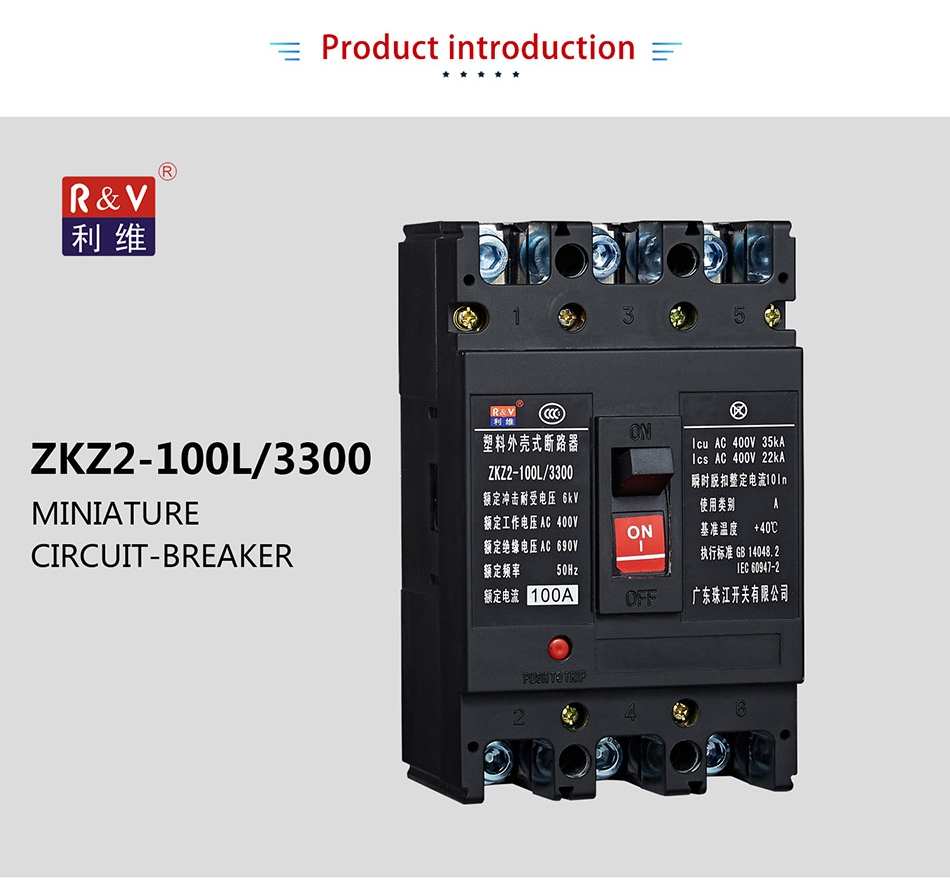

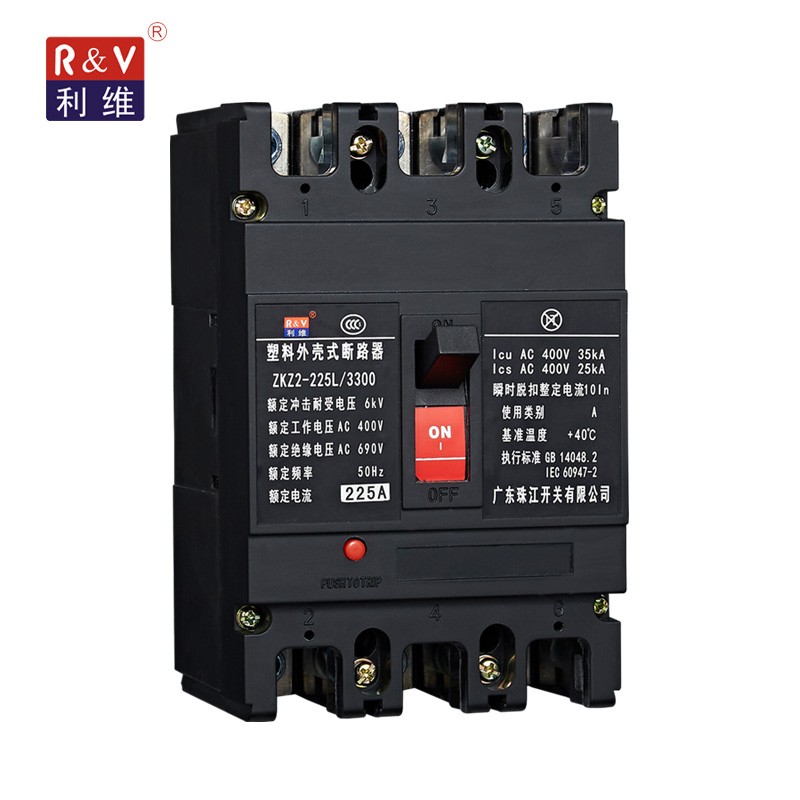

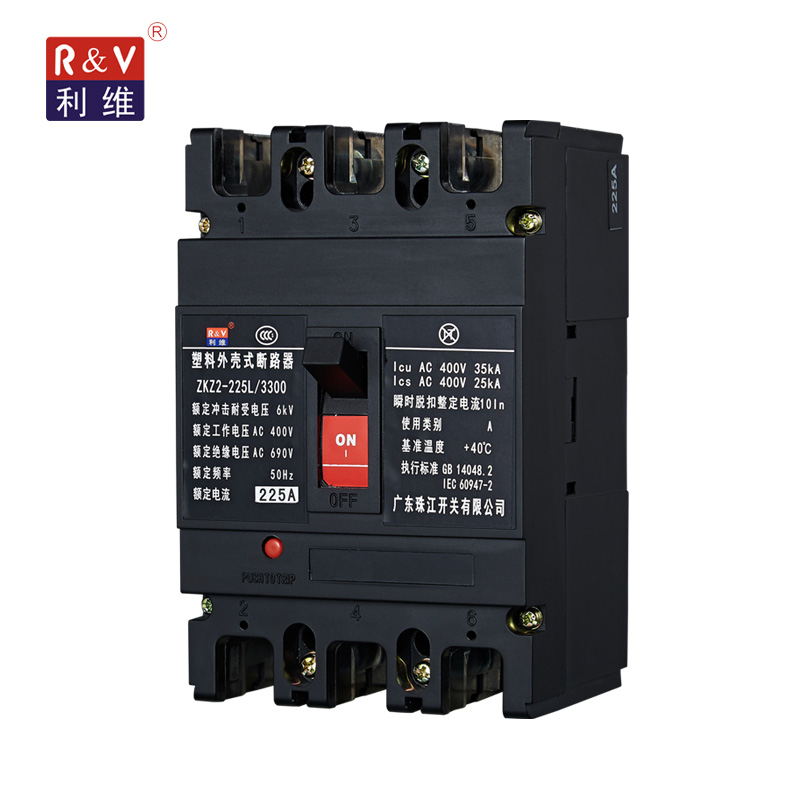

The ZKZ2 series moulded case circuit breaker is engineered for reliable performance in low-voltage networks. Designed to handle currents ranging from 63A to 800A, it provides robust protection for power distribution systems and squirrel-cage motors. With compliance to international standards like IEC 60947-2, this breaker offers consistent overload and short-circuit protection for mission-critical electrical installations.
Technical Parameters
Rated Current Range
- 63
- 100
- 225
- 400
- 630
- 800
- Operational Voltage
- 400 V
- Rated Insulation Voltage
- 690 V
- Impulse Withstand Voltage
- 6 kV
- Rated Frequency
- 50 Hz
Performance Metrics
Breaking Capacity
35 kA
Ultimate (Icu)
25 kA
Service (Ics)
- Compliance Standards
- IEC 60947-2GB 14048.2
Accessories
Supported Accessories
- Front panel wiring
- Plug-in type
- Auxiliary contact
- Shunt release
- Alarm contact
- Under-voltage release
- Electrical operating mechanism
- Rotary handle mechanism
