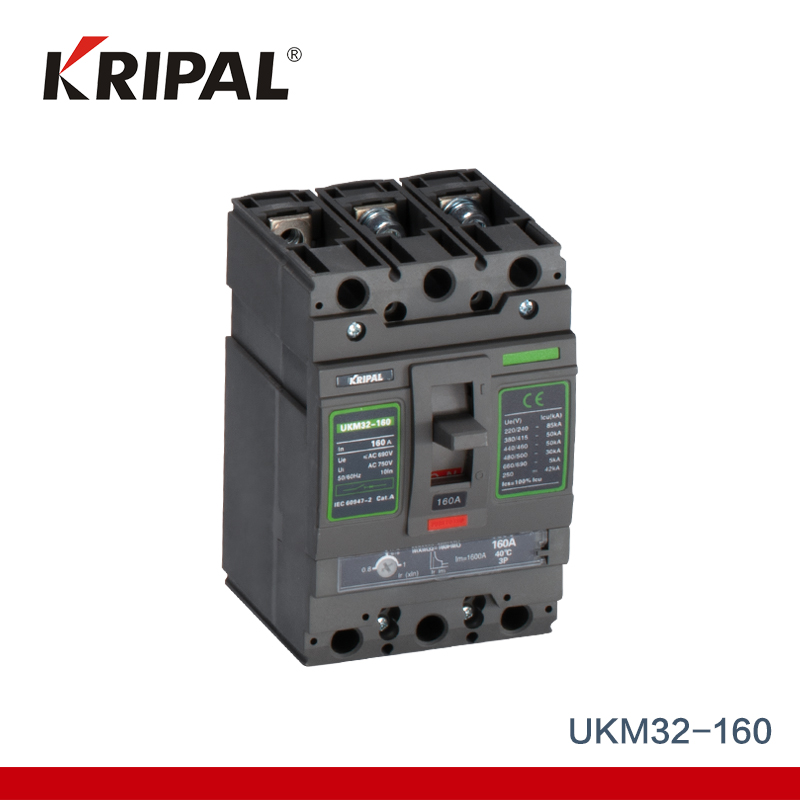

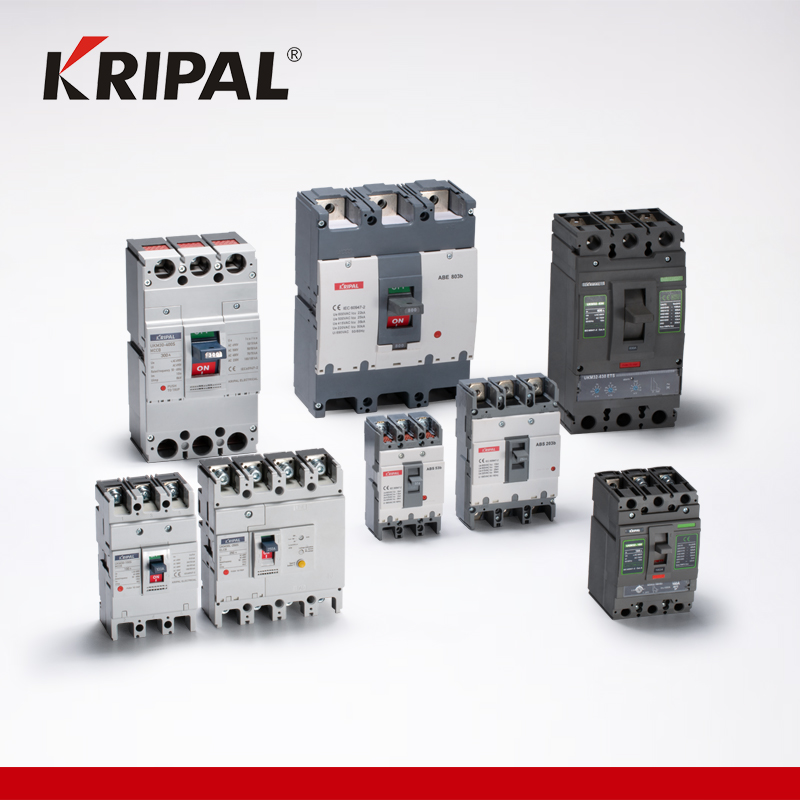

Molded Case Circuit Breaker
Molded case circuit breakers (MCCBs) protect circuits from overcurrents and short circuits. They come in various sizes and configurations for different electrical system requirements.
Technical Specifications
Product Overview
Reliable Circuit Protection
These Molded Case Circuit Breakers (MCCBs) are essential electrical protection devices designed to safeguard circuits from overcurrents and short circuits. Featuring robust housings, they are built to withstand harsh environmental conditions while providing reliable performance in industrial and commercial applications. The devices incorporate adjustable trip settings for customized load protection and quick-break mechanisms for rapid fault interruption.
Technical Specifications
Voltage Ratings
- AC 690V
- AC 750V
- Rated Current Range
- 2000 A
- Pole Configuration
- 1-4P
- Standards & Certifications
- KEMAIEC 60947-2 Category A
Performance Metrics
Key Performance Metrics
1,600 A
Impulse Withstand Current
40 °C
Max Ambient Temperature
Breaking Capacity (Icu) by Voltage
| Voltage Range | Breaking Capacity |
|---|---|
| 220-240V | 85kA |
| 250V | 42kA |
