Technical Specifications
Product Overview

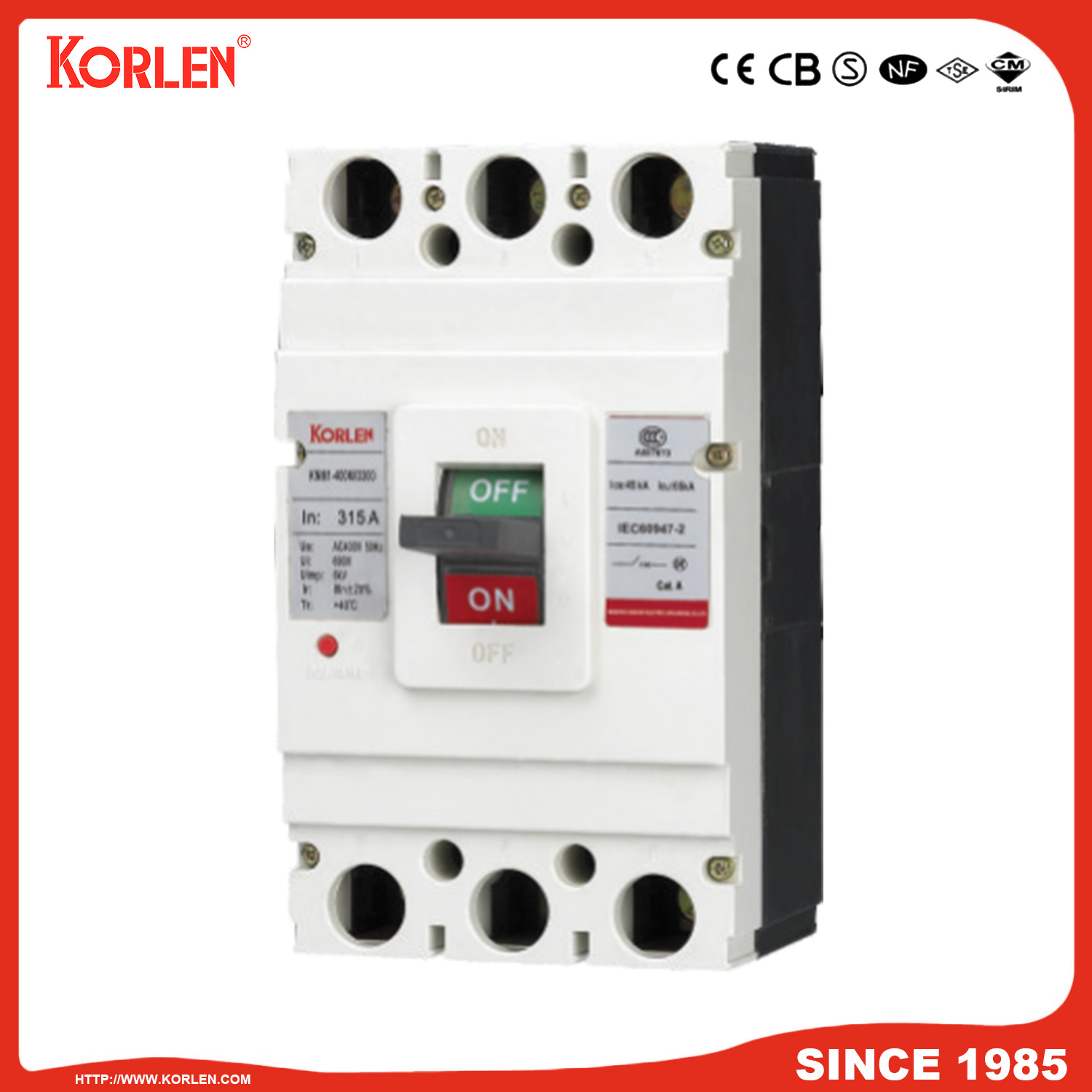

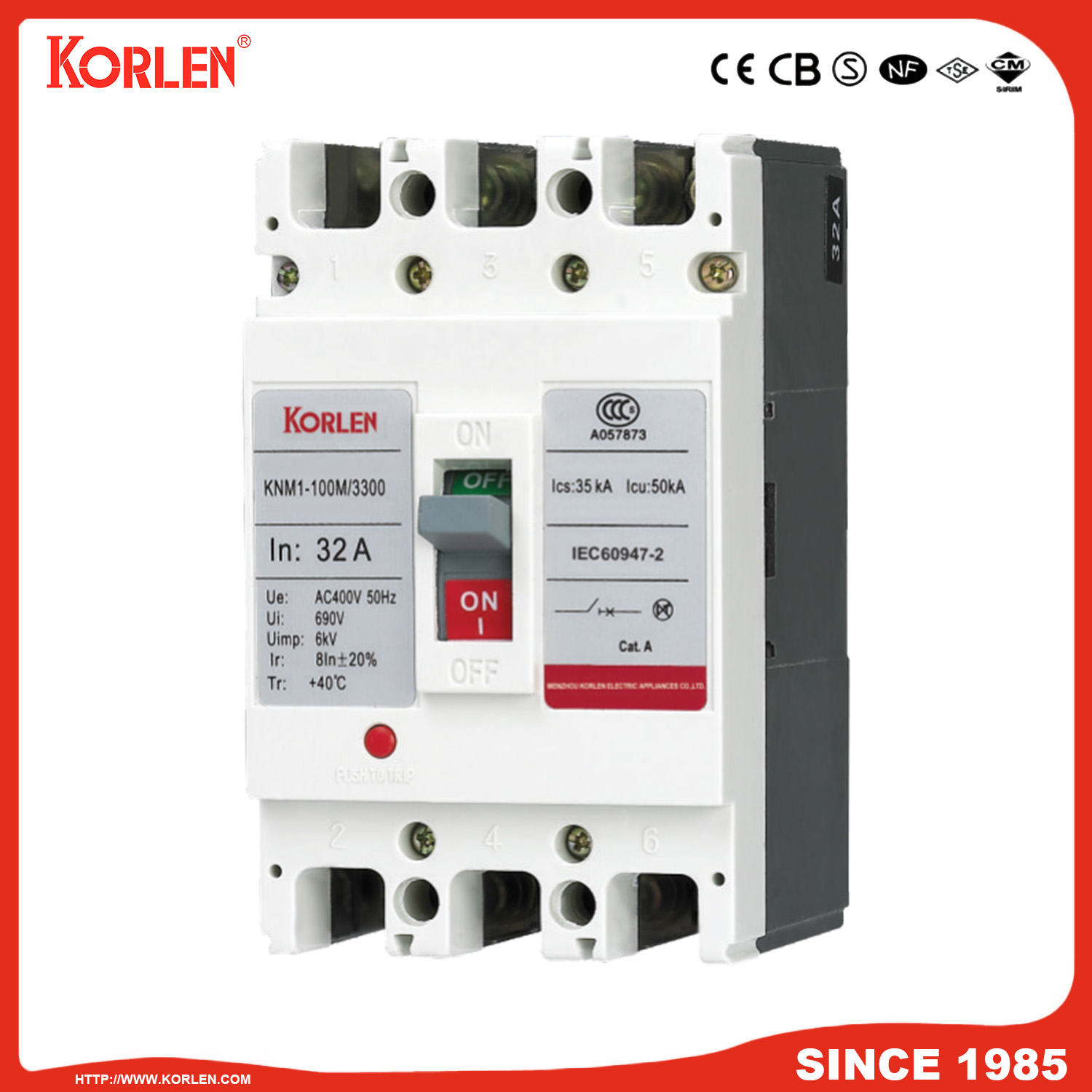

Molded Case Circuit Breaker (MCCB)
This molded case circuit breaker is designed for reliable circuit protection in electrical distribution systems. It is engineered to handle AC 50/60Hz circuits, providing essential protection against overloads, short circuits, and other electrical faults. Suitable for both vertical and transversal installation, this device ensures safety and performance in demanding industrial environments.
Electrical Ratings
- Rated Operating Voltage
- 690 V
- Rated Insulation Voltage
- 800 V
- Rated Current Range
- 6A - 800A
- Rated Pulse Voltage
- 8 kV
Technical Specifications
Installation Methods
- Vertical installation
- Transversal installation
- Standards
- IEC60947-2GB14048.2
Accessories
Compatible Accessories
Shunt trip releaseUndervoltageAuxiliary contactAlarm contactRotary handleMotor operation mechanismBusbar
Performance Data
Frame Class Performance
| Frame Class | Rated Current (A) | Icu (kA) |
|---|---|---|
| 100 | 40, 50, 63, 80, 100 | 25 |
| 225 | 125, 140, 160, 200, 225 | 25 |
| 400 | 225, 315, 350, 400 | 25 |
| 630 | 400, 500, 630 | 25 |
