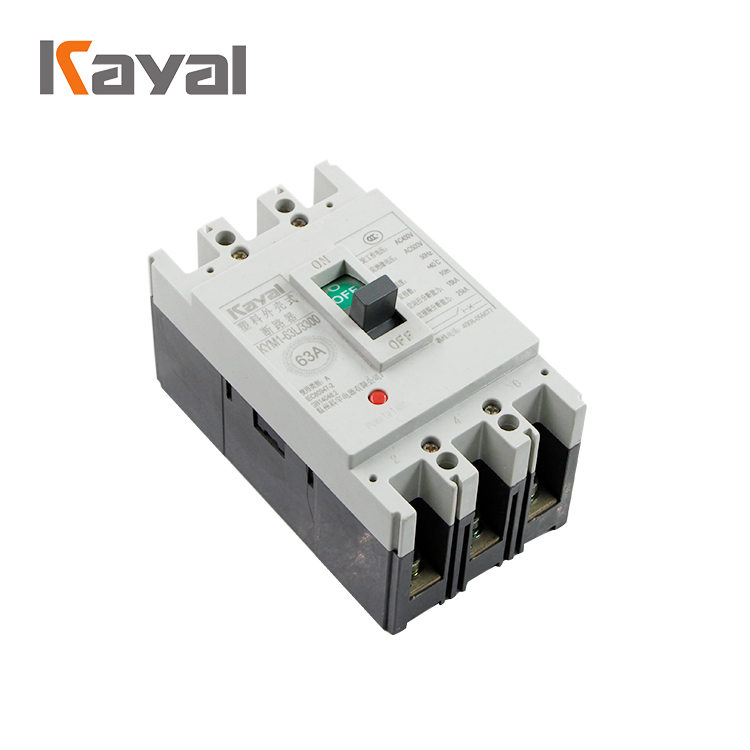

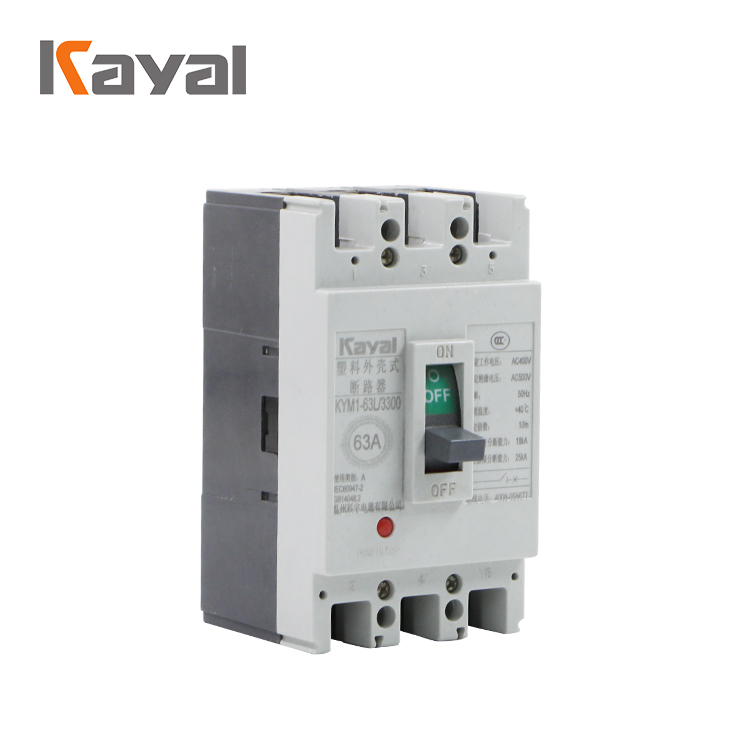

Molded Case Circuit Breaker
This molded case circuit breaker is designed for circuit protection. It provides overload and short-circuit protection.
Technical Specifications
Overview
CM1 Series Molded Case Circuit Breaker
The CM1 series molded case circuit breaker is designed using advanced international technology to provide reliable circuit protection. It is engineered for AC 50Hz circuits with a rated insulation voltage of 800V, suitable for operating voltages up to 400V and currents up to 800A. This device offers essential protection against over-current, short circuits, and under-voltage, ensuring the safety and longevity of your electrical systems and connected units.
Technical Specifications
Standards
IEC60947-2
- Rated Insulation Voltage
- 800 V
- Rated Operating Voltage
- 400 V
- Rated Frequency
- 50 Hz
- Rated Current Range
- 6A10A16A20A25A32A40A50A63A80A100A
- Number of Poles
- 3P4P
Performance Metrics
Key Performance Metrics
25 kA
Ultimate Short Circuit Breaking Capacity
18 kA
Service Short Circuit Breaking Capacity
Safety & Construction
- High-temperature resistant shell
- Flame retardant materials
- Over-current protection
- Automatic short-circuit disconnection

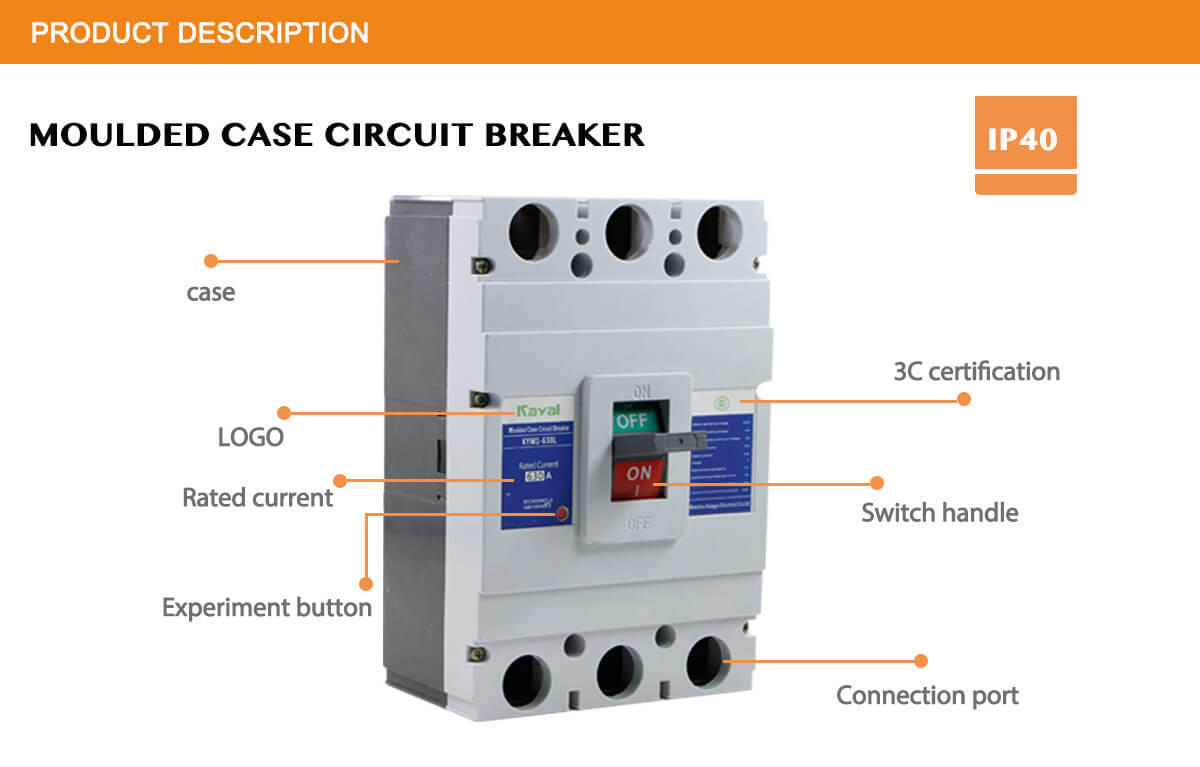

- Integrated test button
