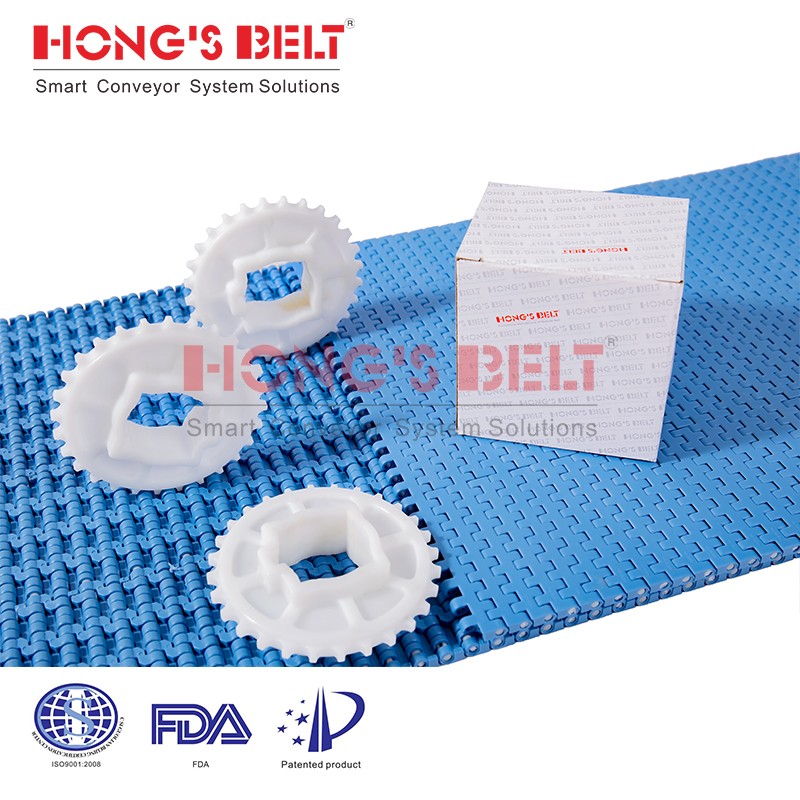

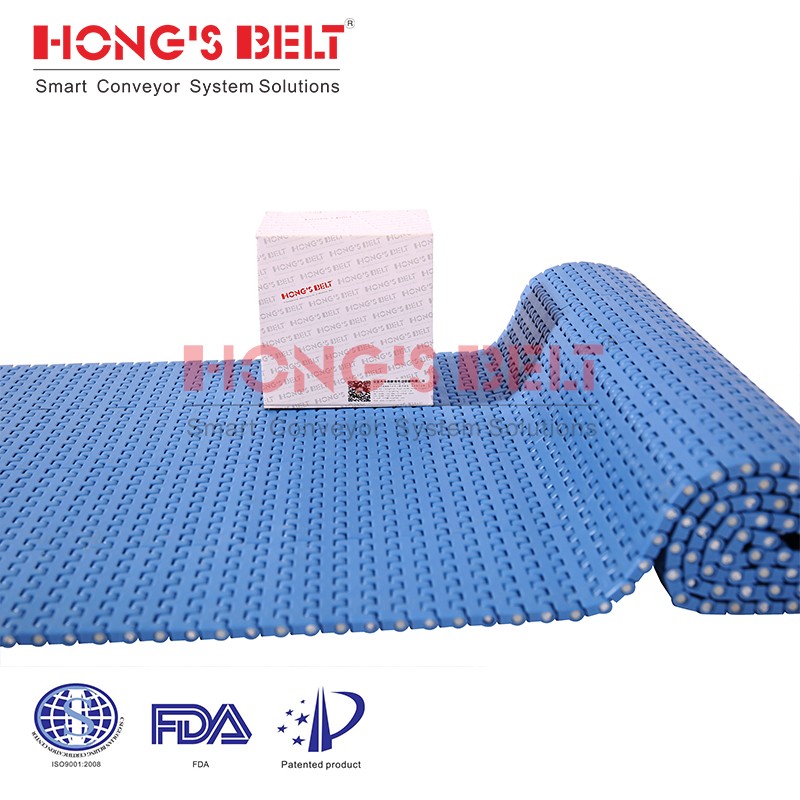

Modular Plastic Conveyor Belt for Packing
This modular plastic conveyor belt is designed for the packing industry. Its modular design allows for easy assembly and maintenance, and its durable plastic construction ensures a long service life.
Technical Specifications
Product Overview
High-Performance Modular Conveyor Belt
This modular plastic conveyor belt is designed for demanding industrial packing environments, offering exceptional durability and operational efficiency. Its modular construction allows for rapid assembly, easy maintenance, and localized repairs, which significantly reduces downtime compared to traditional belt systems. Engineered with food-grade materials and a robust load capacity, it provides a reliable, hygienic, and smooth transport surface for various automated production lines.
Technical Specifications
- Model Type
- HS-1500A-HD
- Pitch
- 12.7 mm
- Thickness
- 10 mm
- Minimum Width
- 76 mm
- Open Area
- 0%
- Rod Diameter
- 4.5 mm
- Working Temperature Range
- -40°C to 260°C
Materials and Compliance
Available Colors
WhiteBlueGrayNatureDark-brown
- Material Options
- PPPOMPEPA
- Certifications
- FDAEU
Features and Capabilities
Maximum Load Capacity
1.2 tons/sqm
Max Load
Design Features
- Floating in water capability
- Food defrosting compatible
- Maintenance-free design
- Easy to clean
- High load capacity
Configuration Constraints
- No Flight
- No Side Guard
- No Curve
Application
Industry Applications
| Sector | Industries |
|---|---|
| Food Industry | Meat, Poultry, Sea Food, Bakery, Snack Food, Fruit & Vegetables |
| Non-food Industry | Automotive, Tire, Packaging, Printing, Postal, Cardboard, Can, PET, Textile |
