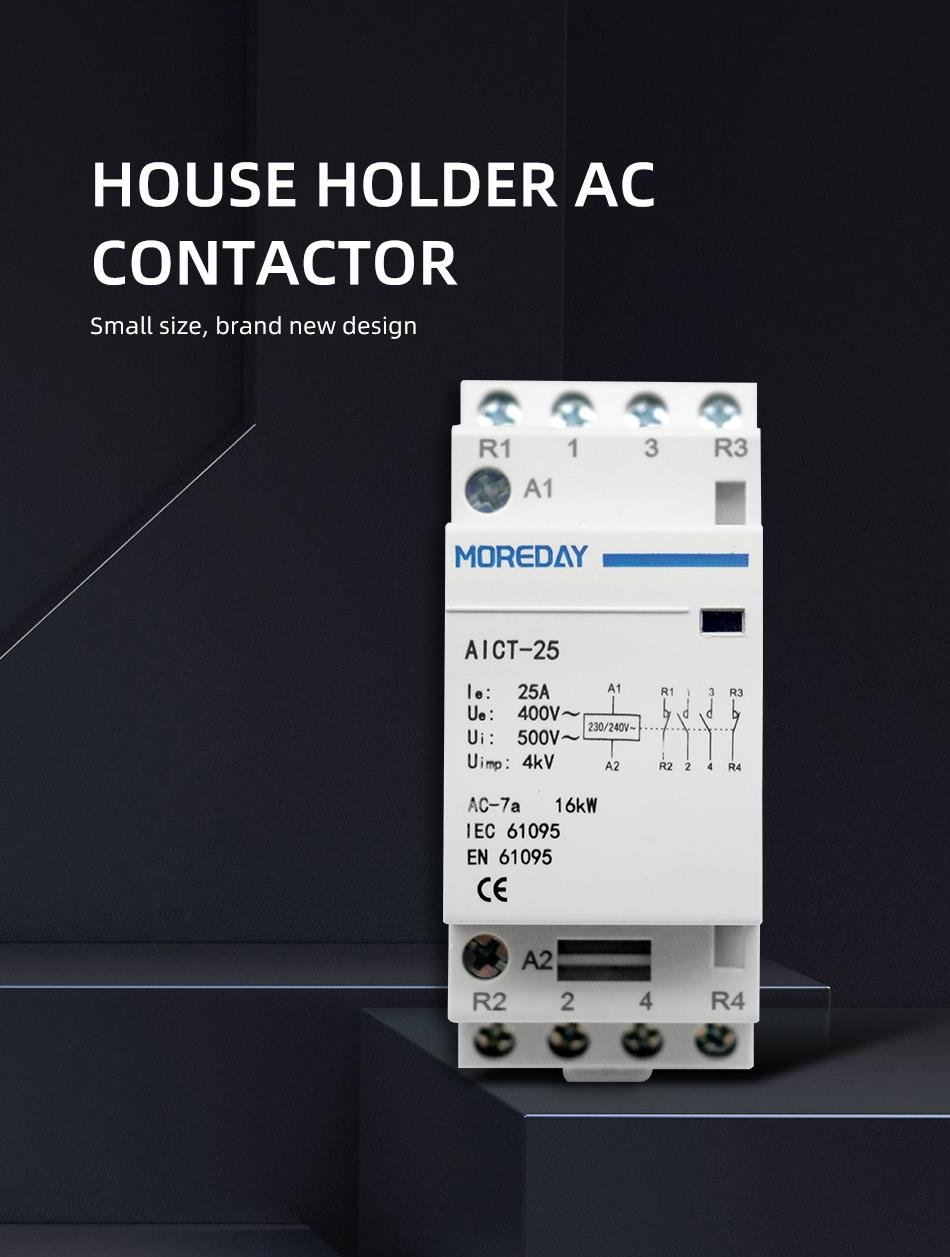

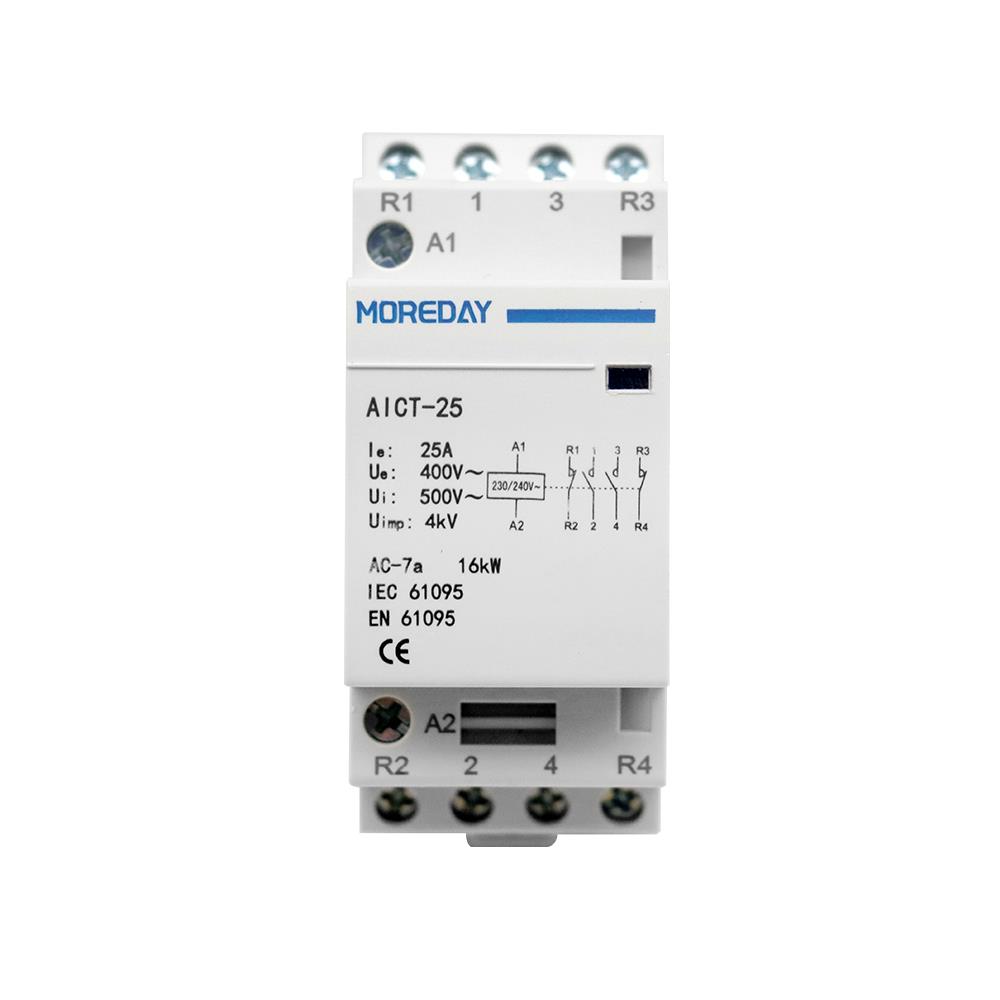

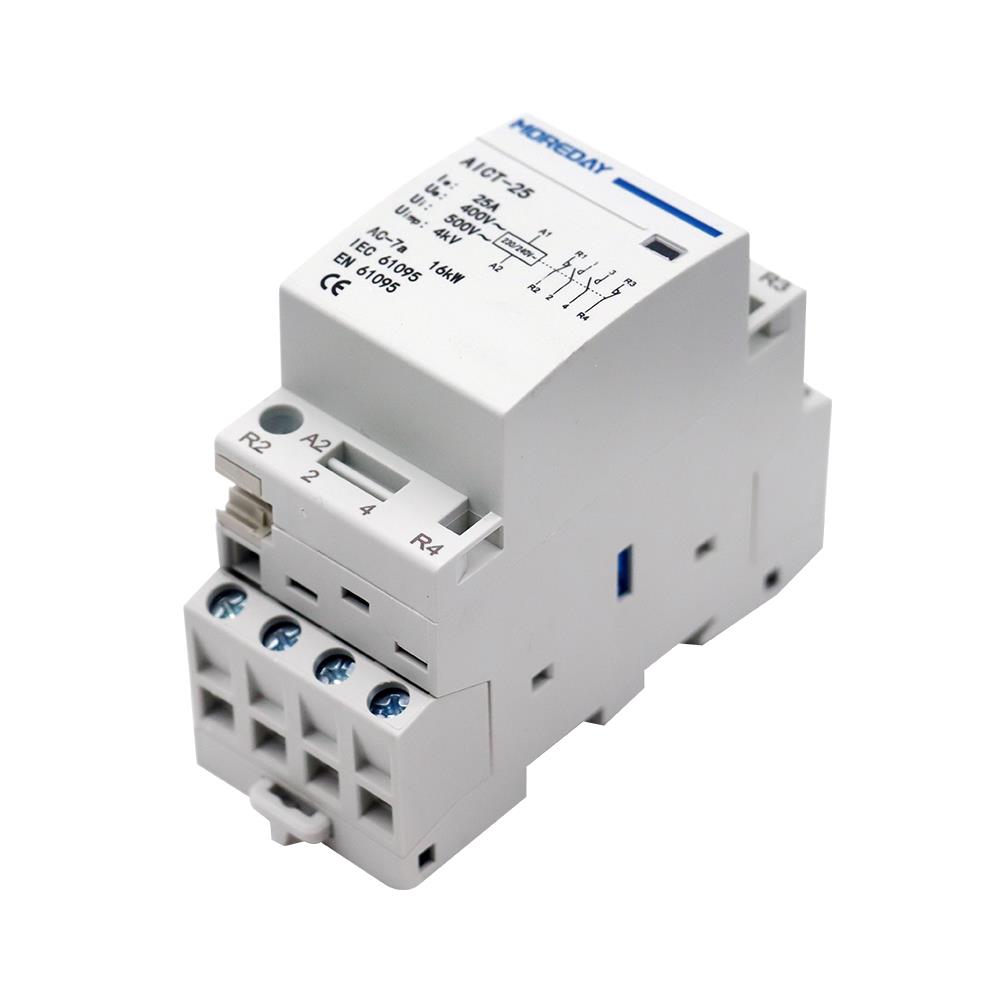

Modular AC Contactor 25A-100A, 24-440V Coil
This modular AC contactor is designed for controlling low-inductance loads in residential and commercial buildings. It is suitable for switching and controlling lighting, heating, ventilation, and pumps.
Technical Specifications
Product Overview
Versatile Modular AC Contactor
This modular AC contactor is designed for efficient switching and control of lighting, heating, ventilation, and pump systems in residential and commercial buildings. It supports a wide range of rated currents from 25A up to 100A and is compatible with various coil voltages from 24V to 440V. Engineered for easy integration, it features a compact DIN-rail mounting design that saves up to 70% space compared to traditional contactors.
Key Performance Metrics
Key Performance Metrics
25 A
Rated Current (Ie)
400 V
Operational Voltage (Ue)
15 dB
Operating Noise
4 kV
Impulse Withstand (Uimp)
Technical Specifications
- Rated Insulation Voltage (Ui)
- 500 V
- Frequency
- 50Hz60Hz
- Utilization Category
- AC-7a / AC-7b
- Rated Power (AC-7a)
- 16 kW
- Operating Temperature
- -5°C to +60°C
Configuration Options
Supported Coil Voltages
- 24V
- 36V
- 48V
- 110V
- 230V/240V
- 440V
Available Rated Currents
- 16
- 20
- 25
- 32
- 40
- 63
- 100
- Available Poles
- 1P2P3P4P
Installation & Design
Core Features

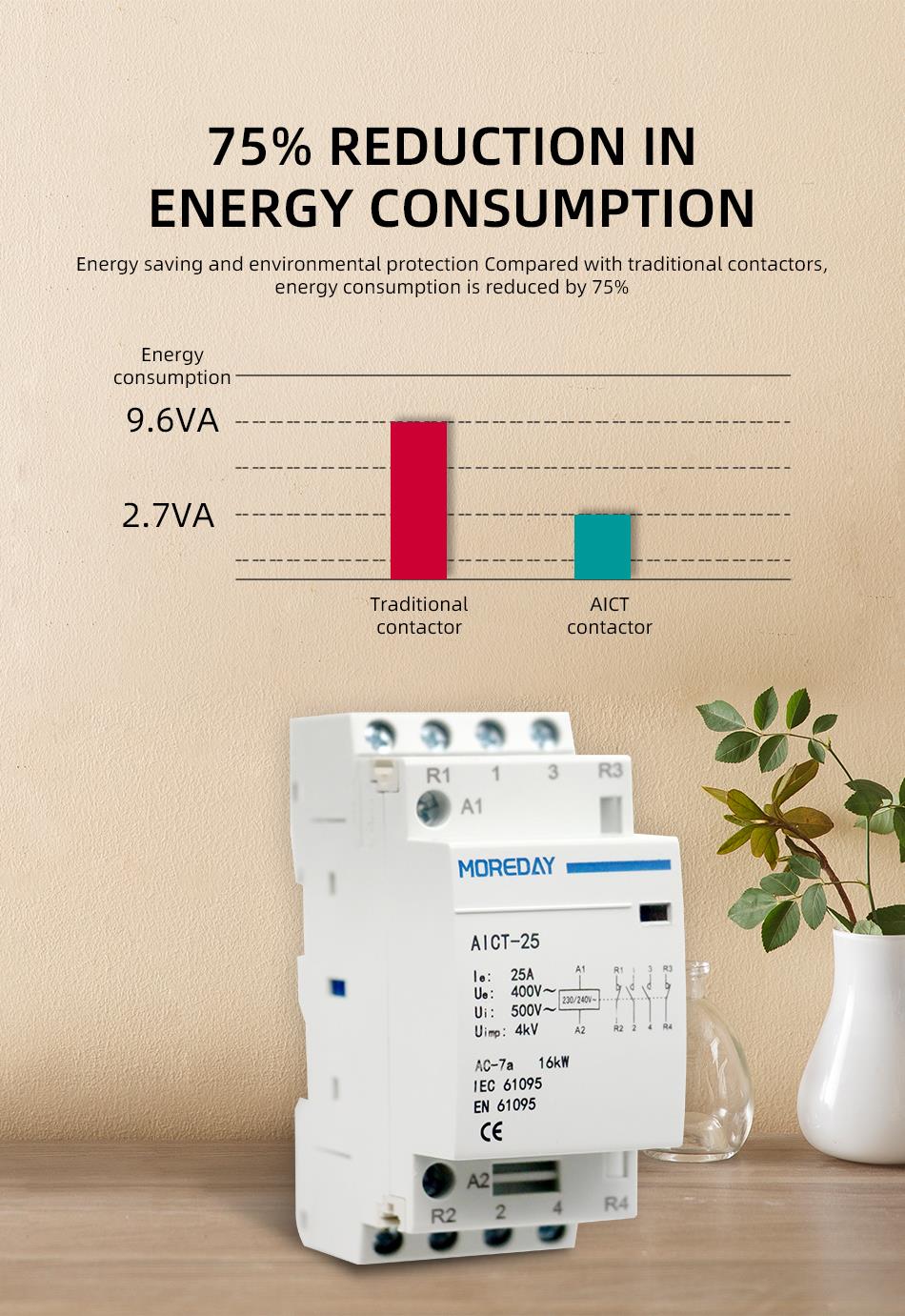

Space OptimizationEnergy SavingFlame RetardantSilent OperationEasy Wiring
Physical Dimensions
| Current Rating | Poles | Width (mm) | Height (mm) | Depth (mm) |
|---|---|---|---|---|
| 16A/20A/25A | 2P | 18 | 81 | 68 |
| 16A/20A/25A | 4P | 36 | 81 | 68 |
| 32A/40A/63A | 2P | 36 | 85 | 68 |
| 32A/40A/63A | 4P | 54 | 85 | 68 |

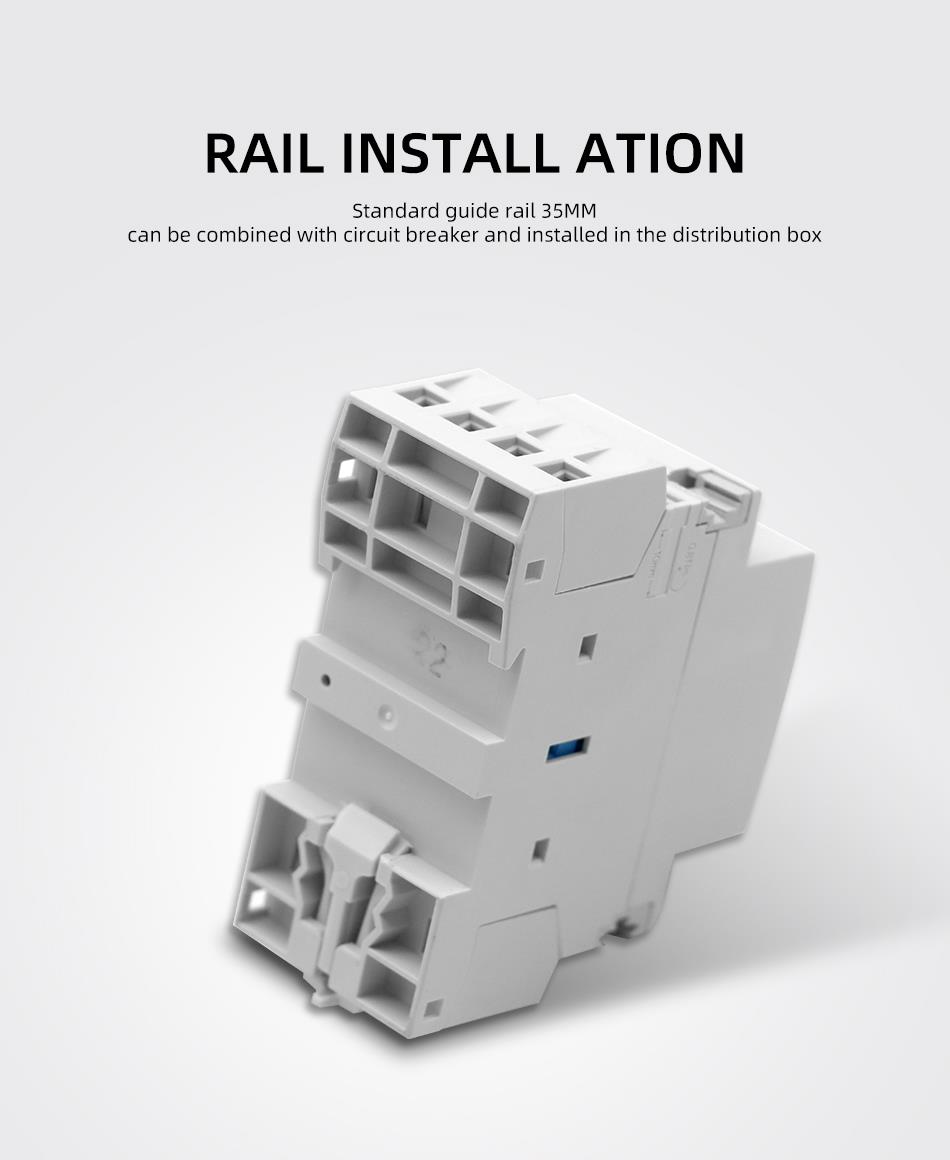

- Mounting Type
- 35mm DIN-Rail Mounting
Compliance & Quality
Product Certifications
CECBTUVRoHSCCC
- International Standards
- IEC 61095EN 61095GB 17885
