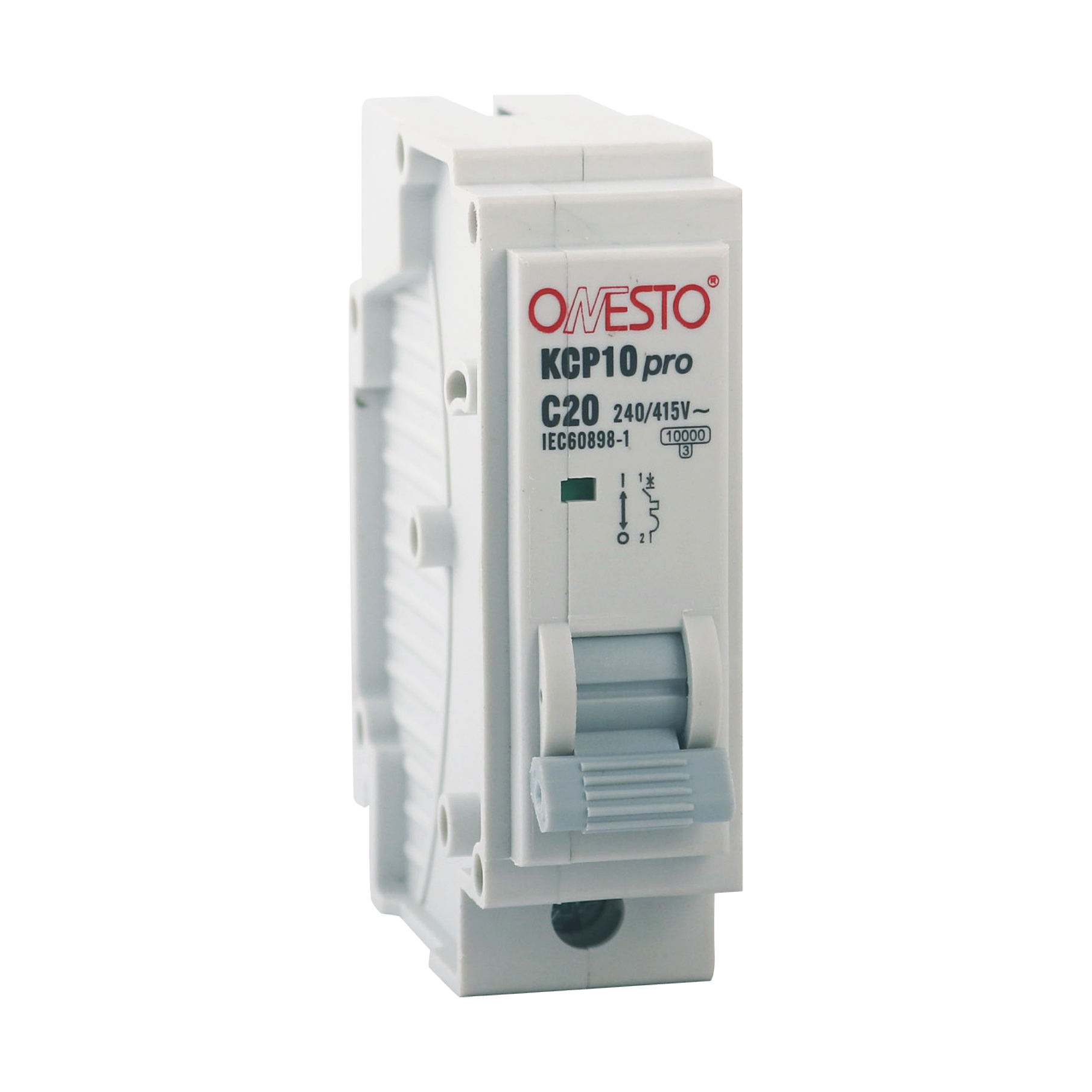

Miniature Plug-In Circuit Breaker
This miniature circuit breaker provides overcurrent and short-circuit protection in electrical circuits. It is designed for plug-in installation and conforms to IEC60898-1 standards.
Technical Specifications
Overview
Reliable Circuit Protection
This miniature plug-in circuit breaker is engineered to provide robust overcurrent and short-circuit protection in electrical distribution systems. Designed to international standards, it offers versatile tripping characteristics and high breaking capacity to ensure safety and operational reliability. Its compact design and plug-in installation make it an ideal choice for efficient electrical panel assembly and maintenance.
Electrical Ratings
Rated Current Options
- 6
- 10
- 16
- 20
- 25
- 32
- 40
- 50
- 63
- Rated Operating Voltage
- 240V AC (1P)415V AC (1P/2P/3P)
Performance Metrics
Short-Circuit Breaking Capacity
10 kA
Ultimate (Icu)
10 kA
Service (Ics)
- Rated Impulse Withstand Voltage
- 4 kV
Technical Specifications
Tripping Curve
BC
Number of Poles
- 1
- 2
- 3
- Compliance Standard
- IEC60898-1
- Rated Insulation Voltage (Ui)
- 415 V
- Rated Frequency
- 50/60Hz
- Type of Release
- Thermo-magnetic
Environmental & Installation
- Protection Index
- IP20
- Reference Calibration Temperature
- 50 ℃
