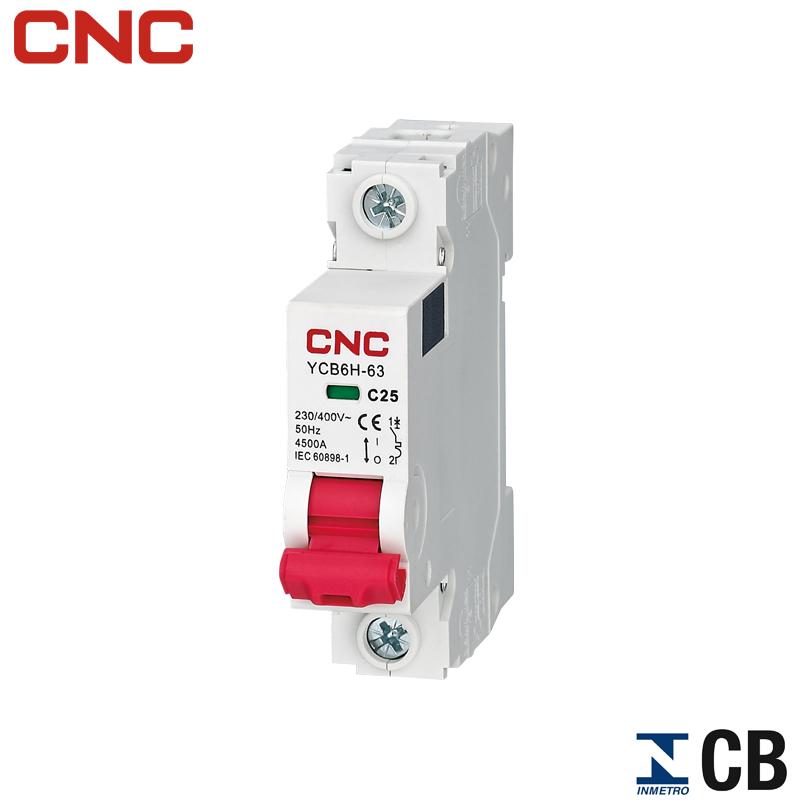

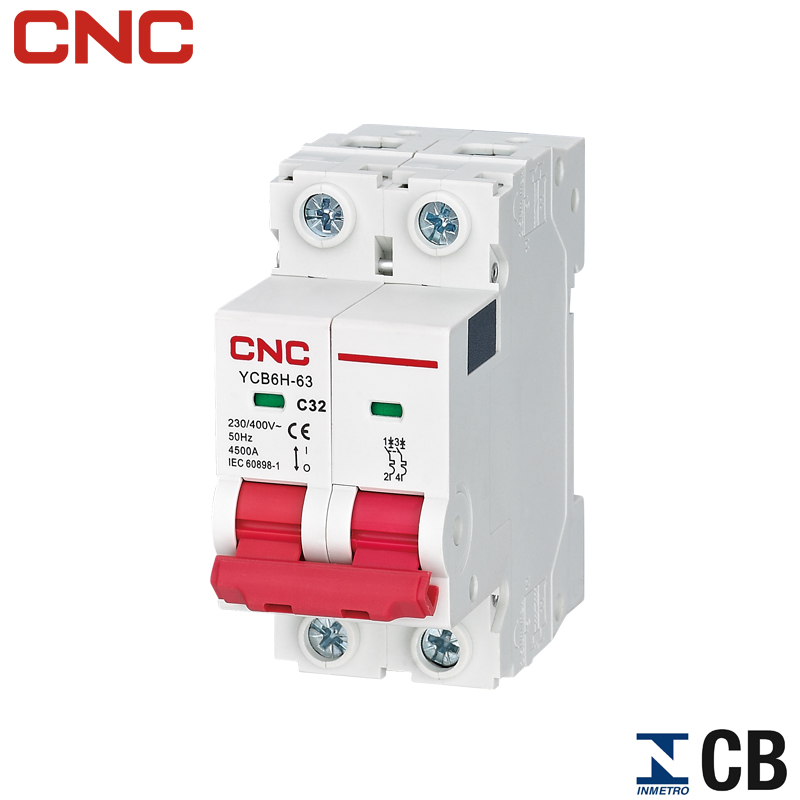

Miniature Circuit Breaker YCB6H-63
This miniature circuit breaker is designed for residential and commercial electrical protection. It provides overload and short-circuit protection and conforms to IEC 60898-1 standards.
Technical Specifications
Product Overview
Robust Electrical Protection
The YCB6H-63 series miniature circuit breaker provides reliable overload and short-circuit protection for residential, non-residential, and infrastructure applications. Designed to ensure safety and stability in electrical systems, these devices are compatible with a range of inrush current requirements. With high-performance construction and adherence to international standards, it is an essential component for modern electrical distribution.
Technical Specifications
Instantaneous Release Types
- Type B (3-5)ln
- Type C (5-10)ln
- Type D (10-20)ln
- Rated Voltage
- 230/400V AC
- Rated Frequency
- 50 Hz
- Breaking Capacity
- 4500 A
Certifications
- International Standards
- IEC 60898-1CECBINMETRO
Installation
- Mounting Method
- DIN Rail
Key Performance Metrics
Device Metrics
4,500 A
Breaking Capacity
50 Hz
Frequency
