Miniature Circuit Breaker with 10kA Breaking Capacity
This miniature circuit breaker provides overload, short circuit, and isolation protection. It has a rated short-circuit breaking capacity of 10kA and is suitable for curves B, C, and D.
Technical Specifications
Product Overview
Reliable Circuit Protection
The HB9H Miniature Circuit Breaker provides essential overload and short-circuit protection for electrical circuits in residential, commercial, and industrial environments. Featuring a robust 10kA breaking capacity, it ensures safe and efficient circuit interruption to prevent equipment damage. Its compact design allows for easy installation in distribution boards, while the clear contact position indicator enhances operational safety.
Electrical Ratings
Rated Current
63 A
Max Rated Current
- Breaking Capacity
- 10 kA
- Working Frequency
- 50/60Hz
Technical Specifications

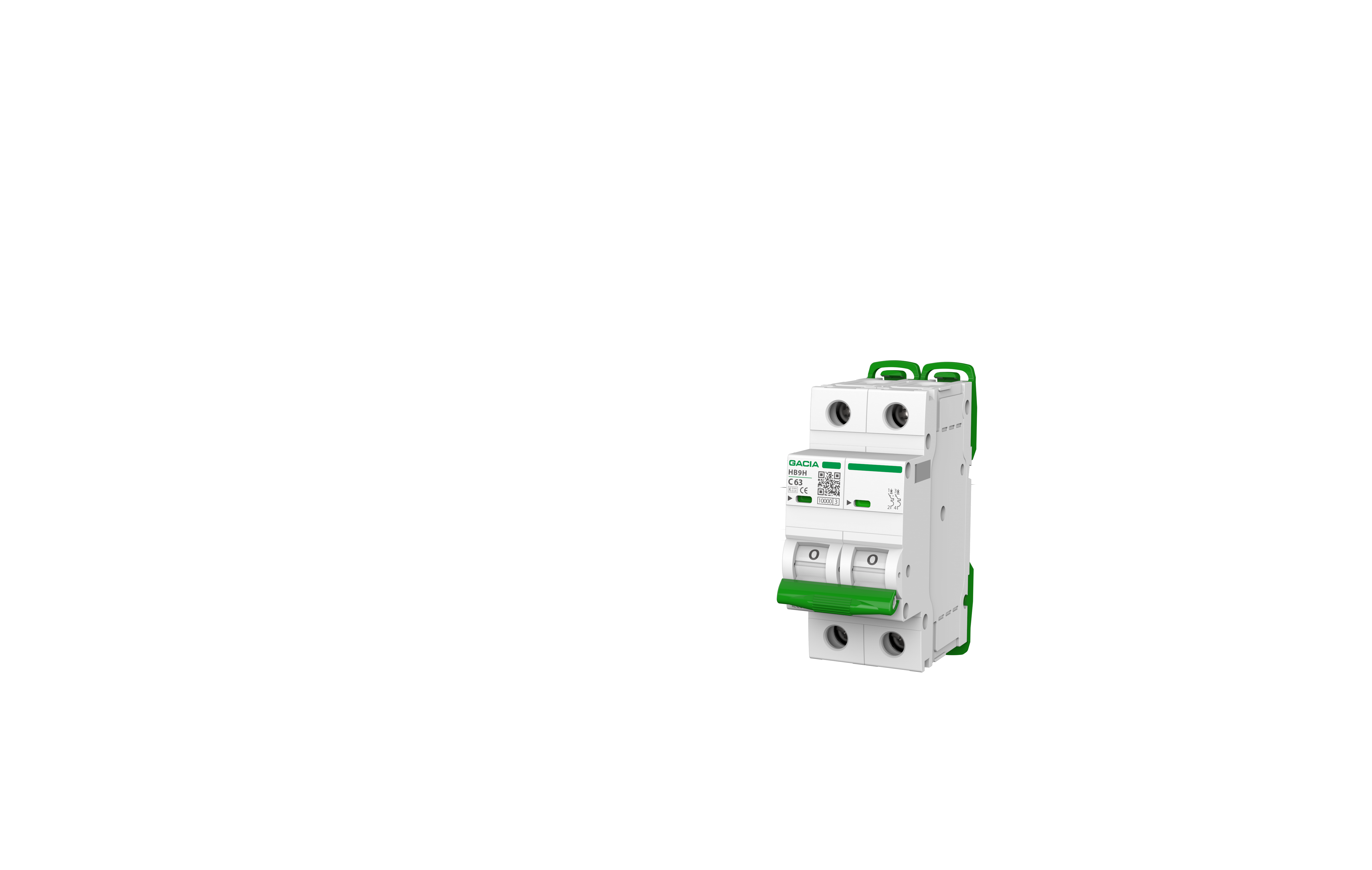

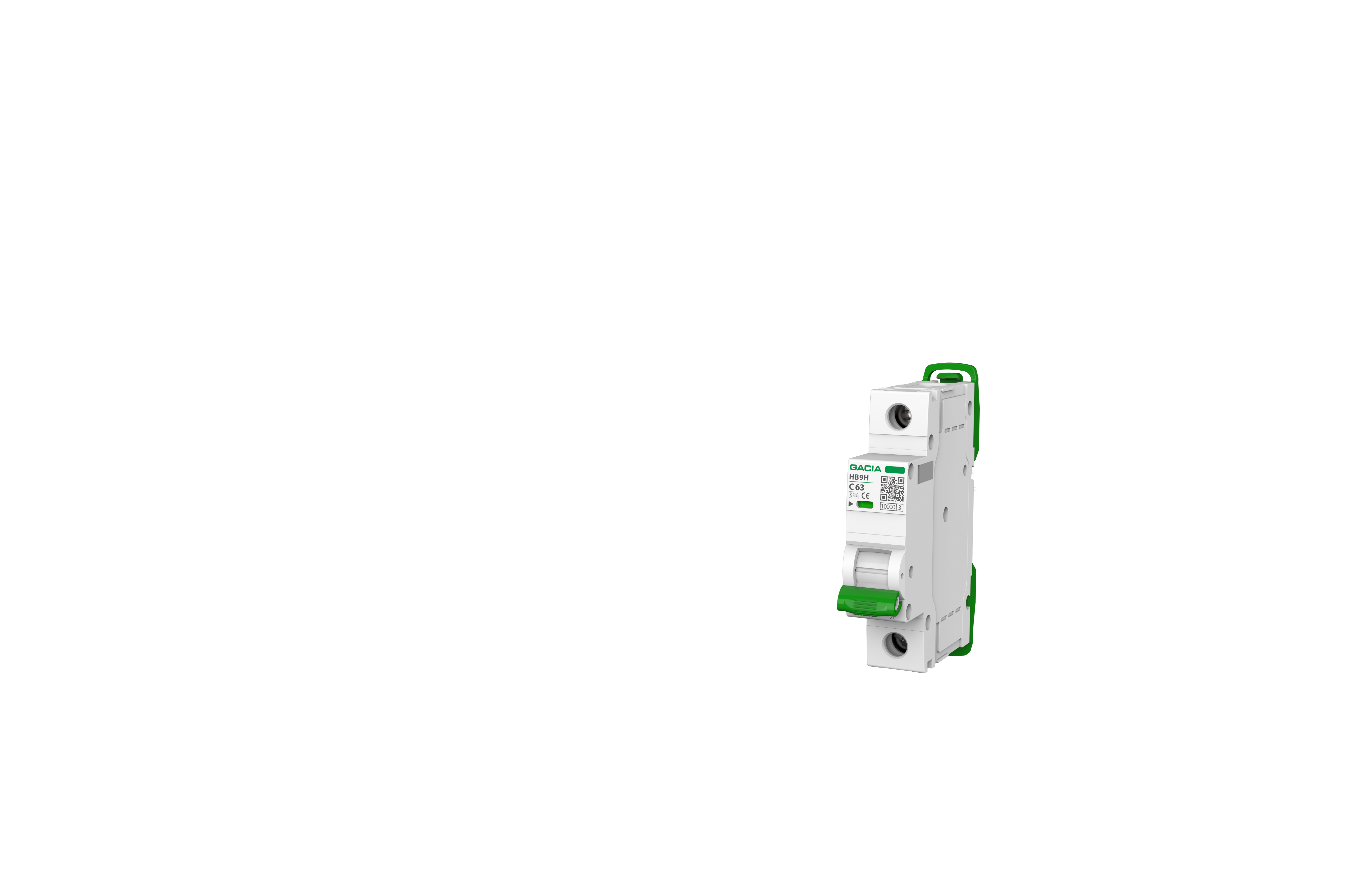

Pole Versions
- 1 Pole
- 2 Pole
- 3 Pole
- 4 Pole
Position Indication
Green: OFFRed: ON
- Tripping Curves
- Curve BCurve CCurve D
Compliance
- Standards & Certifications
- IEC/EN 60898-1CEKEMA
