Technical Specifications
Product Overview

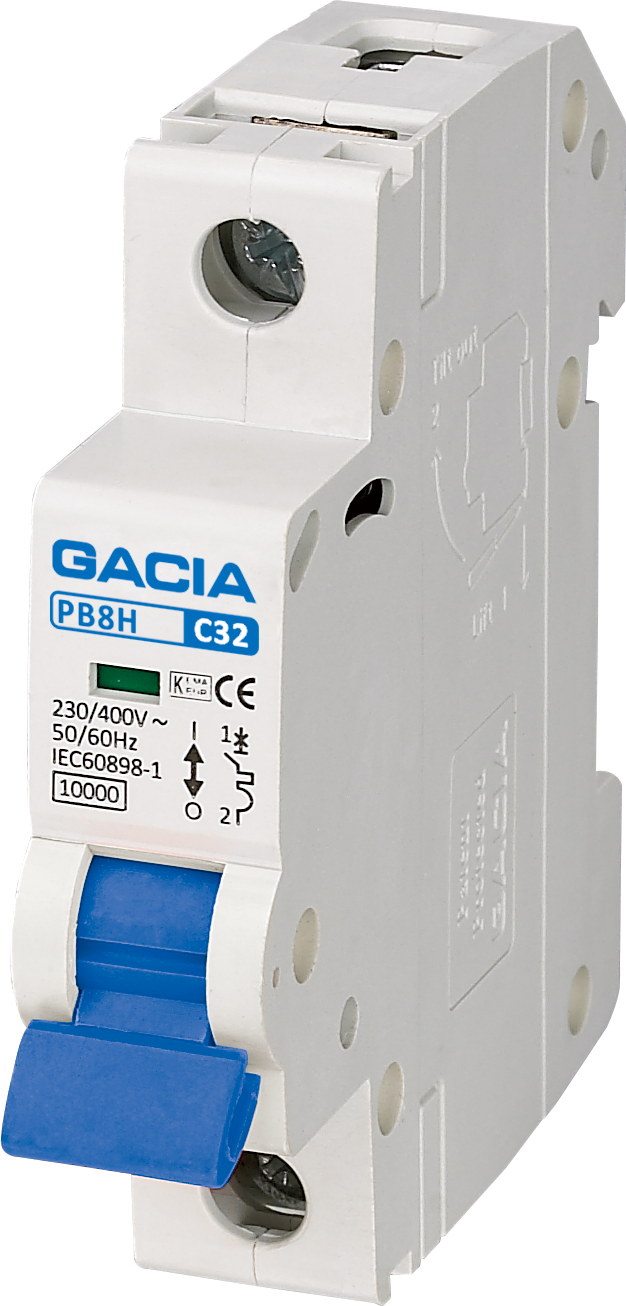

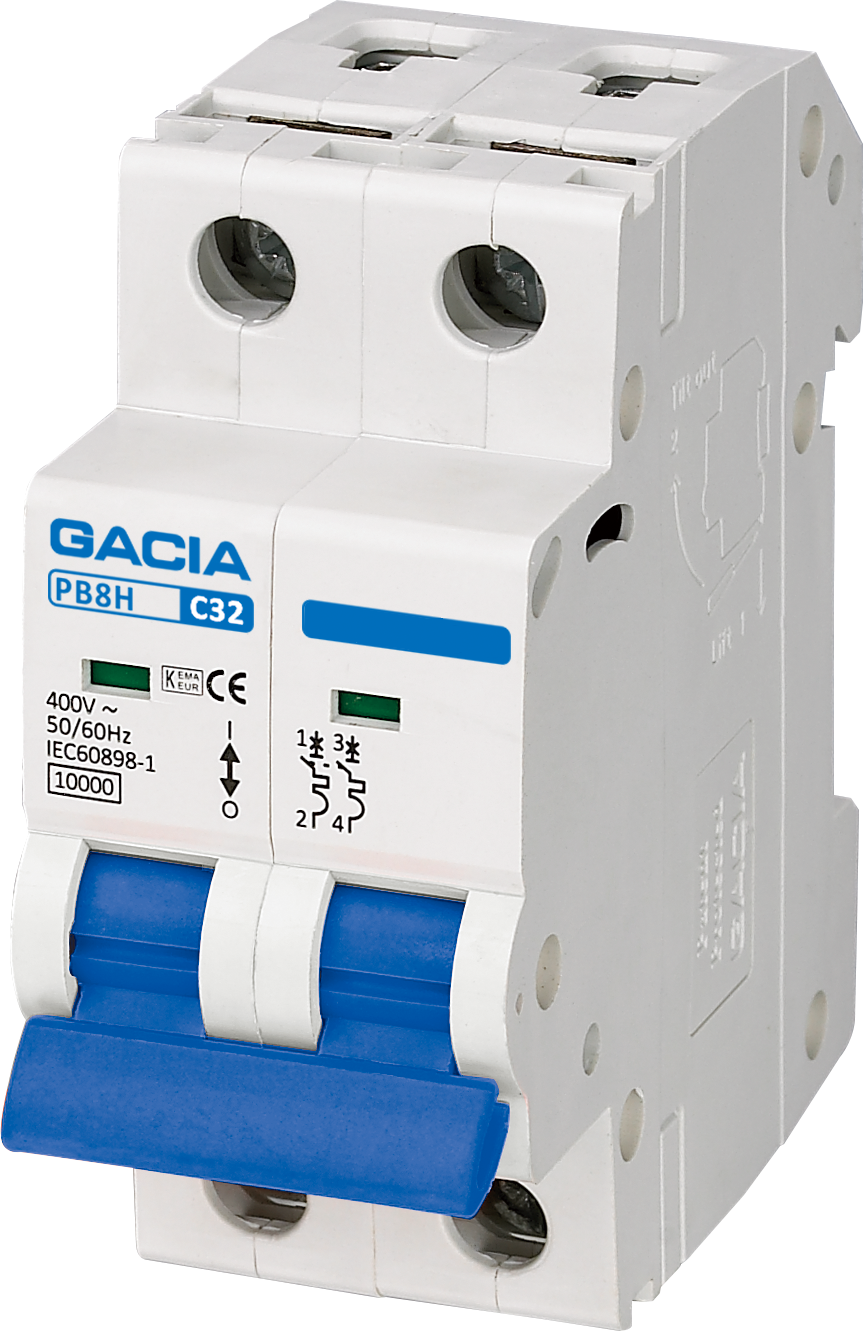

High-Performance Miniature Circuit Breaker
The PB8H Miniature Circuit Breaker provides essential overload and short-circuit protection for residential, commercial, and industrial electrical systems. Engineered for reliability, it features a robust 10kA breaking capacity and is available in 1-4 pole configurations. With clear contact position indicators and compliance with international standards, it ensures safe and efficient power distribution.
Technical Specifications
Rated Breaking Capacity
10 kA
Breaking Capacity
6 kA
Conditional Short Circuit Strength
Electrical Ratings
| Parameter | Value |
|---|---|
| Rated Current | Up to 63A |
| Rated Voltage | 230/400V |
| Frequency | 50/60Hz |
- Tripping Curves
- Curve BCurve CCurve D
Features & Compliance
Certifications
CEKEMAIEC/EN 60898-1
Key Features
- Overload protection
- Short-circuit protection
- Contact position indication window (Green: ON, Red: OFF)
- 1-4 Pole configurations available
