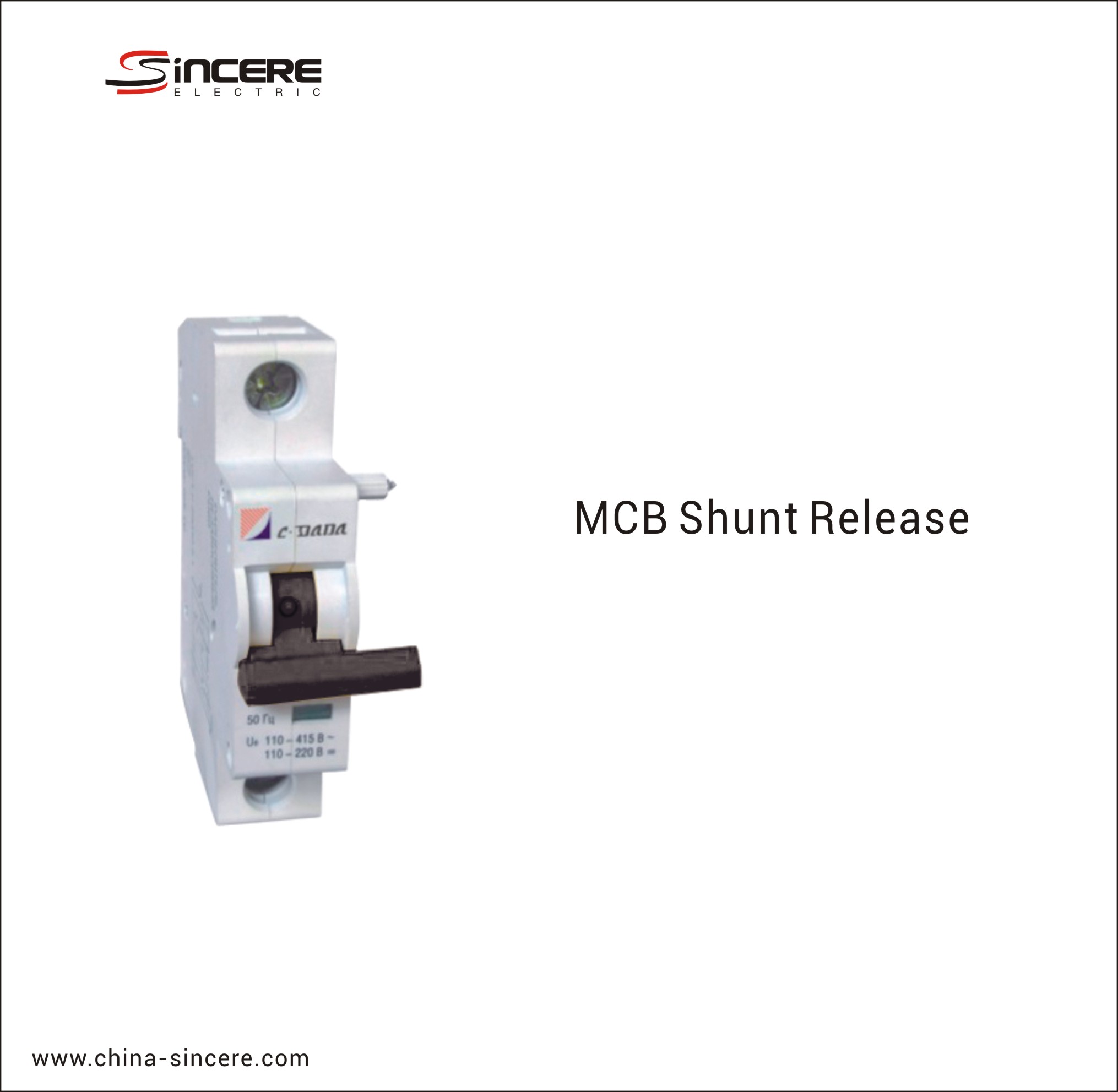

Miniature Circuit Breaker Shunt Trip Release
This MCB shunt trip release allows for remote disconnection of a circuit. When the applied current voltage is from 70% Us to 110% Us, the shunt release will reliably break the circuit.
Technical Specifications
Product Overview
Reliable Shunt Trip Release
This shunt trip release is a specialized accessory designed for remote tripping of miniature circuit breakers. It allows for the remote disconnection of the circuit in response to external signals, such as emergency stops or fault conditions. Engineered for compatibility with standard 63-frame circuit breakers, it ensures reliable operation across a wide range of control voltages.
Electrical Specifications
- Rated Control Voltage (AC)
- 24V-110V110V-400V
- Rated Control Voltage (DC)
- 24V-60V110V-220V
- Operating Voltage Range
- 70% to 110% of Rated Control Source Voltage (Us)
Compatibility & Installation
Available Accessory Configurations
- Circuit breaker + auxiliary contact
- Circuit breaker + auxiliary alarm contact
- Circuit breaker + shunt trip
- Circuit breaker + shunt trip + auxiliary contact
- Circuit breaker + shunt trip + auxiliary alarm contact
- Circuit breaker + undervoltage trip
- Compatible Series
- DAB7-63 Miniature Circuit Breakers
- Installation
- Left-side mounting; supports DIN rail installation
Quality & Standards
Certifications & Audits
INTERTEK AuditedDEKRA AuditedGMC Audited
