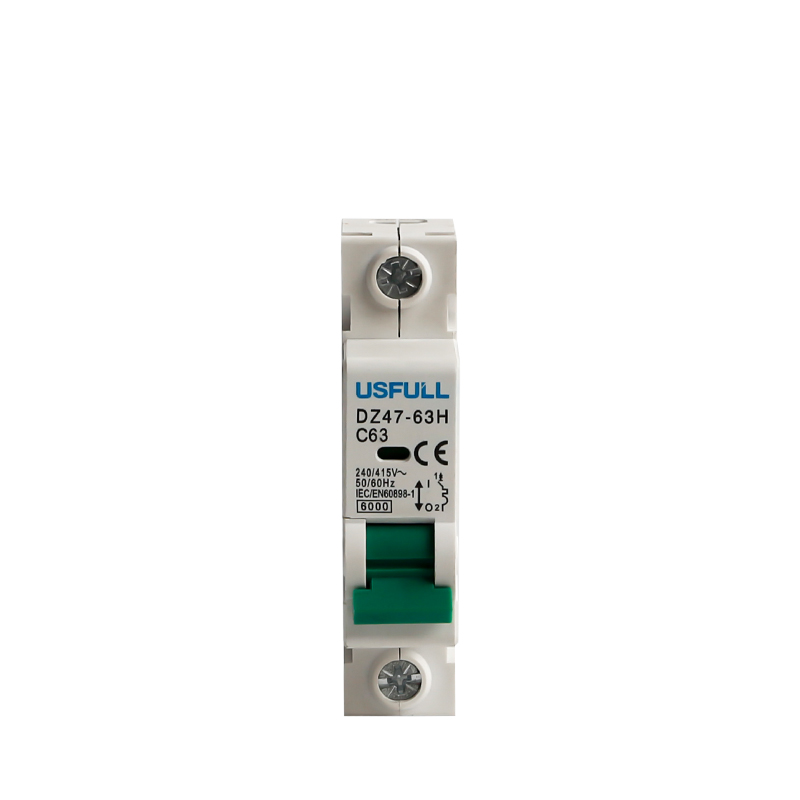

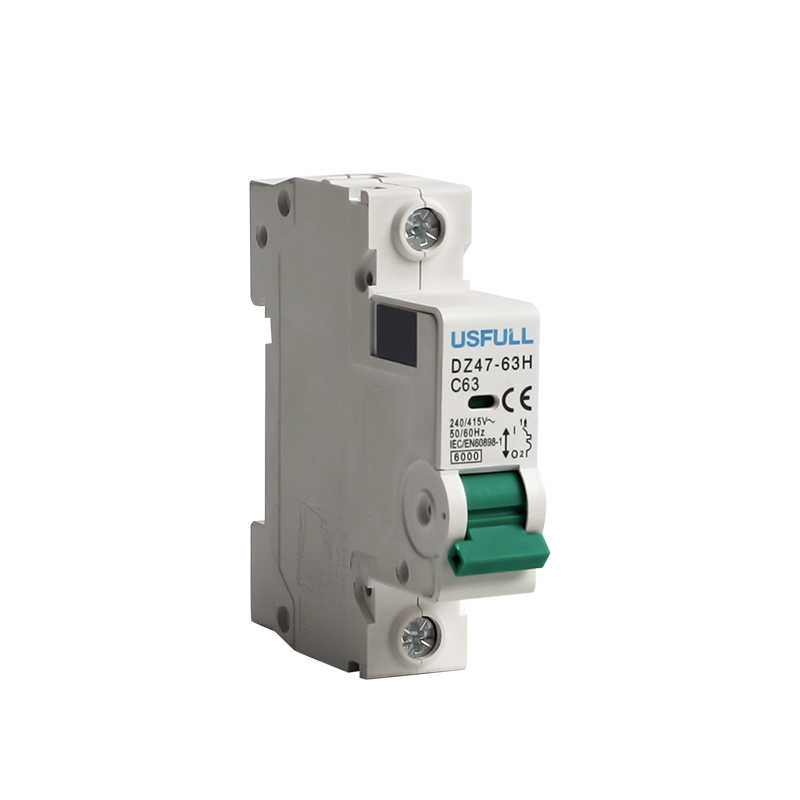

Miniature Circuit Breaker MCB-DZ47-63H
This miniature circuit breaker is designed for 240/415V electrical systems operating at 50/60Hz. It provides overload and short-circuit protection and complies with IEC/EN60898-1 standards.
Technical Specifications
Overview
Professional Circuit Protection
The DZ47-63H Miniature Circuit Breaker provides essential overload and short-circuit protection for electrical lines in residential, commercial, and industrial environments. Engineered for versatility, it supports AC 50/60Hz systems and is suitable for both standard protection and infrequent circuit switching. This device ensures reliable performance and safety in diverse applications ranging from civil residences to high-rise buildings.
Electrical Ratings
- Rated Voltage
- 230/400V
- Rated Current
- 63 A
- Frequency
- 50/60Hz
Performance Metrics
Key Performance Metrics
6,000 A
Breaking Capacity
63 A
Rated Current
Tripping Characteristic
C-Curve
Standards & Compliance
- Compliance Standards
- GB10963.1IEC60898IEC/EN60898-1CE
Applications
Typical Applications
- Residential Buildings
- Commercial Facilities
- Industrial Installations
- High-rise Buildings
