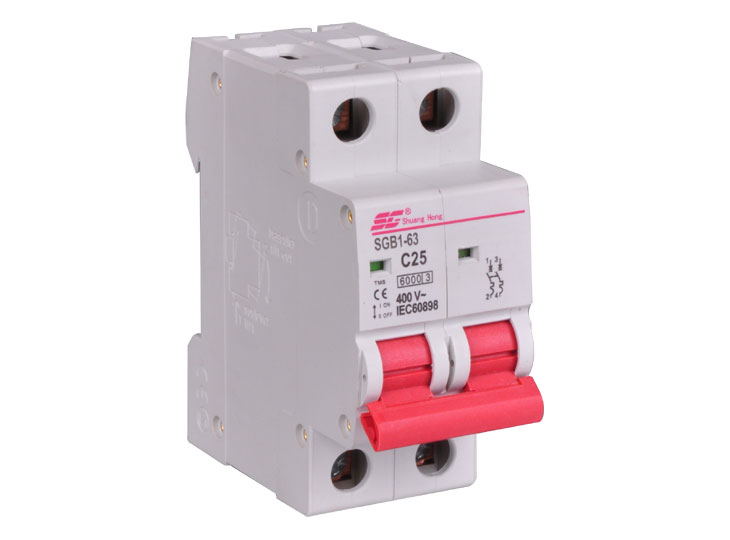

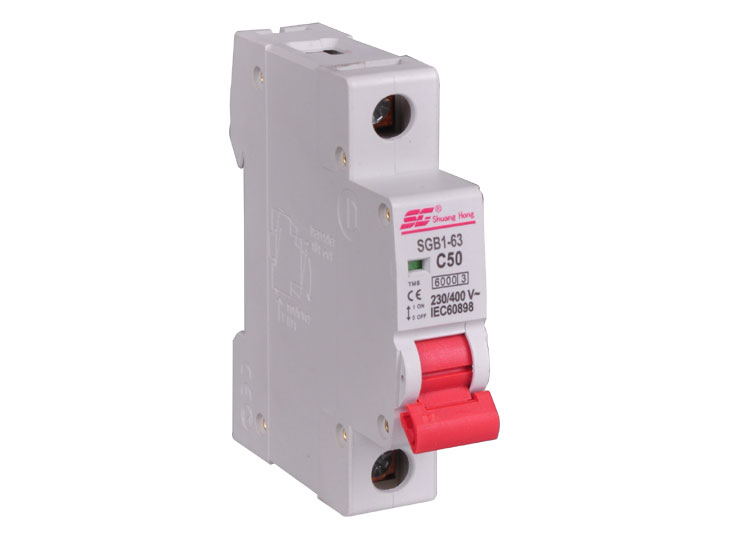

Miniature Circuit Breaker (MCB)
Miniature circuit breakers (MCBs) offer both thermal protection for normal overloads and magnetic protection for short circuits. These high-performance MCBs are available in 1P, 2P, 3P, and 4P configurations.
Technical Specifications
Product Overview
Reliable Circuit Protection
This Miniature Circuit Breaker (MCB) is engineered to provide robust protection against overloads and short circuits in residential, commercial, and industrial electrical systems. Designed for versatility, it supports a wide range of current ratings from 1A to 63A and is available in multiple pole configurations. With a standard 6kA breaking capacity and DIN rail mounting, it ensures safe and efficient electrical distribution.
Technical Specifications
Breaking Capacity
6 kA
Breaking Capacity
- Rated Current Range
- 63 A
- Rated Voltage
- 230/400V AC
- Frequency
- 50/60Hz
- Tripping Curves
- B CurveC CurveD Curve
Configuration
Available Pole Configurations
- 1P
- 1P+N
- 2P
- 3P
- 3P+N
- 4P
Installation
- Mounting
- 35mm DIN rail
- Width per Pole
- 17.8 mm
Compliance
Protection Type
Overload ProtectionShort Circuit Protection
- Trip Mechanism
- Thermal-magnetic release
