Technical Specifications
Product Overview
Reliable Circuit Protection

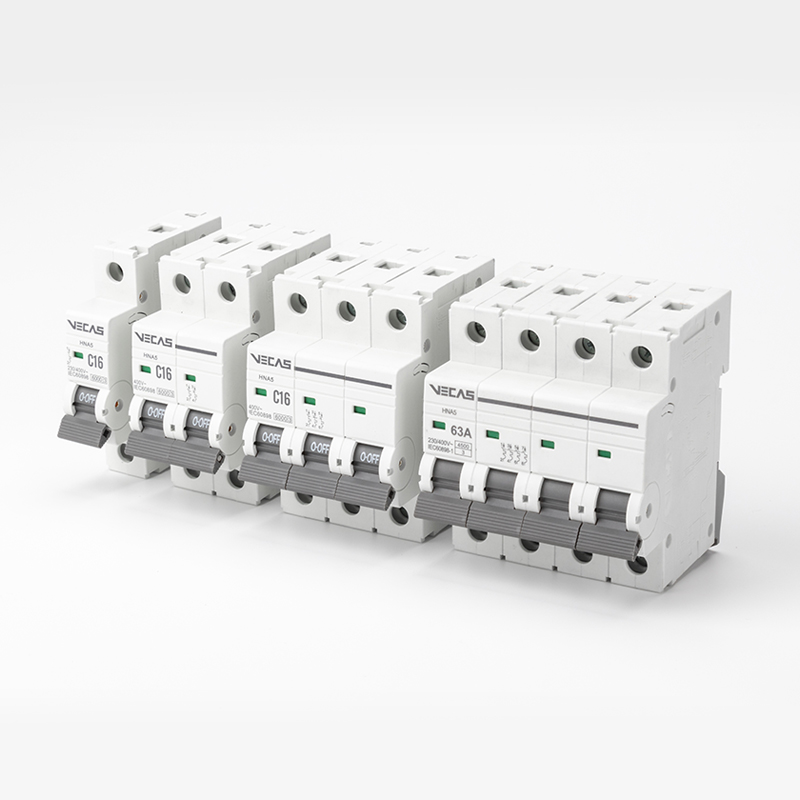

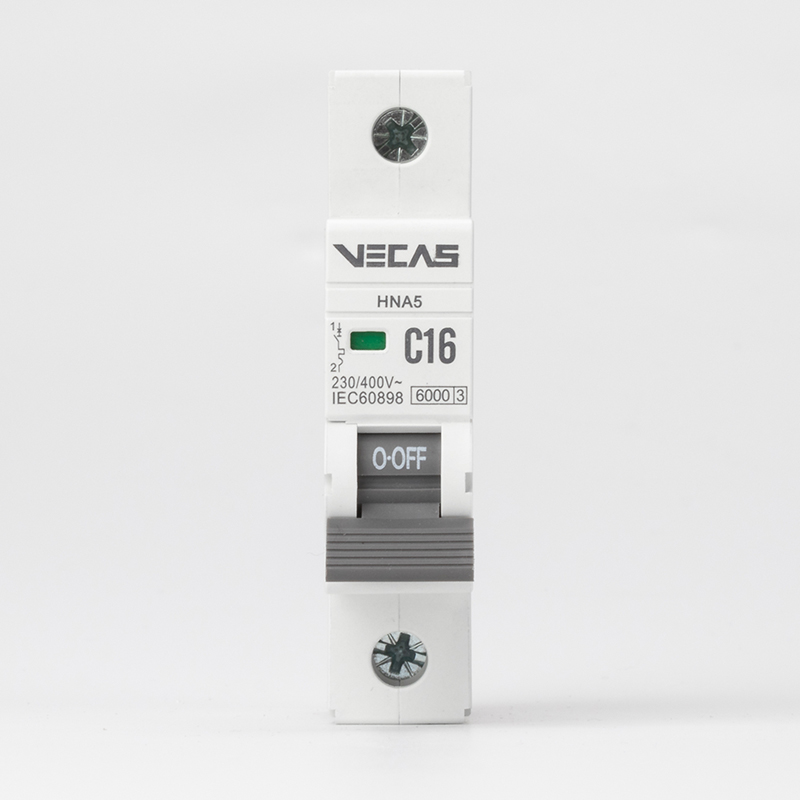

This miniature circuit breaker (MCB) is designed for robust overload and short-circuit protection in distribution networks. It supports flexible configurations with 1P to 4P pole options and a wide range of rated currents from 1A to 63A. Built for safety and efficiency, it adheres to IEC 60898-1 standards, ensuring reliable operation in residential, commercial, and industrial electrical systems.
Electrical Ratings
Key Performance Metrics
4,500 A
Breaking Capacity
4 kV
Impulse Voltage
500 V
Insulation Voltage
- Available Rated Currents
- 1A2A4A6A10A16A20A25A32A40A50A63A
- Rated Operational Voltage
- 230 V AC 50/60 Hz
Technical Specifications
Pole Configuration
- 1P
- 2P
- 3P
- 4P
- Trip Unit Technology
- Thermal-magnetic (Curve B, C, D)
- Magnetic Tripping Limit
- 5...10 x In
Installation & Durability
Durability
| Type | Cycles |
|---|---|
| Mechanical | 10,000 |
| Electrical | 4,000 |
- Mounting
- DIN rail (Clip-on)
- Tightening Torque
- 3.5 N.m
Features
Safety Features
Isolation CapableContact Position IndicatorThermal-Magnetic Protection
