Miniature Circuit Breaker for Overload and Short-Circuit Protection
This miniature circuit breaker is designed for residential and commercial applications. Rated at 220V-50Hz with a 10000A breaking capacity, it provides overcurrent and short-circuit protection.
Technical Specifications
Product Overview
Reliable Circuit Protection

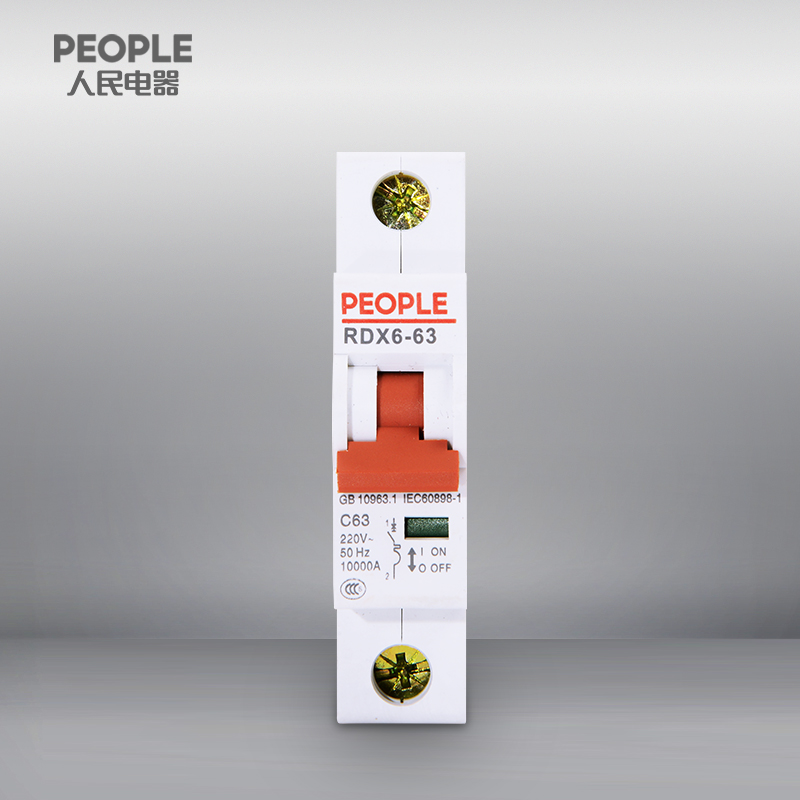

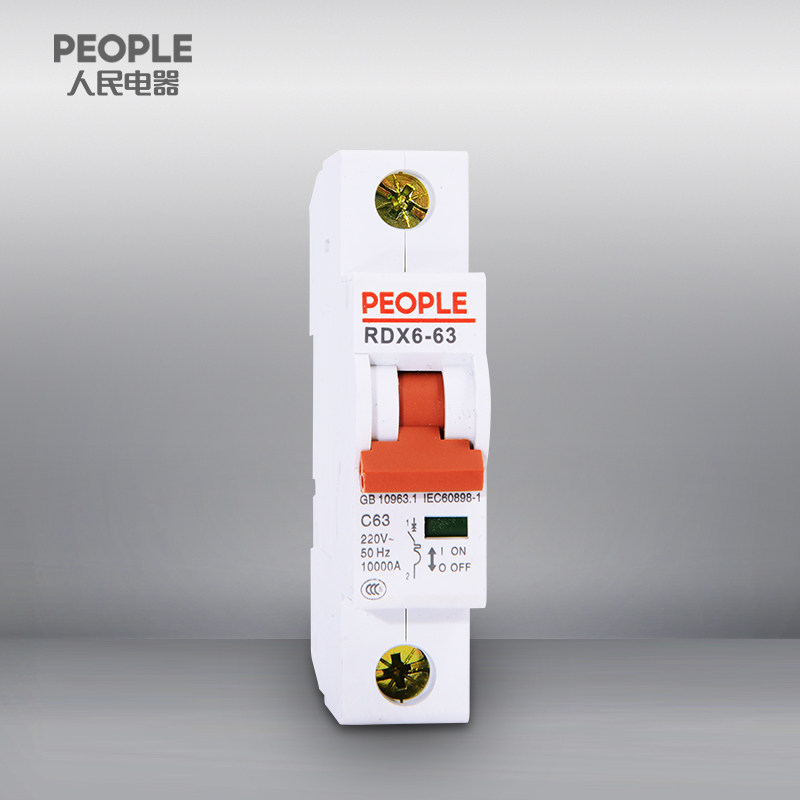

The RDX6-63 miniature circuit breaker is engineered for robust overload and short-circuit protection in electrical distribution systems. Suitable for AC 50/60Hz circuits, it supports single-phase 230V and multi-phase 400V configurations. This versatile device is ideal for domestic, commercial, and industrial applications, ensuring safety and compliance with international IEC/EN60898 standards.
Technical Specifications
Rated Current
63 A
Max Rated Current
Voltage Ratings
- 230V (Single Phase)
- 400V (2, 3, 4 Phases)
- Breaking Capacity
- 10000 A
- Tripping Characteristic
- C63
Compliance & Standards
- Certified Standards
- IEC/EN60898GB 10963.1IEC60898-1
Installation & Features
Indicators
ON/OFF Indicator
Primary Applications
- Domestic installations
- Commercial electrical distribution
- Industrial electrical distribution
- Mounting
- DIN rail mounting
