Miniature Circuit Breaker for Overload and Short Circuit Protection
This miniature circuit breaker provides overload and short circuit protection. It is designed to quickly interrupt the circuit in the event of an overcurrent or short circuit, preventing damage to equipment and reducing the risk of electrical hazards.
Technical Specifications
Product Overview
Compact Miniature Circuit Breaker

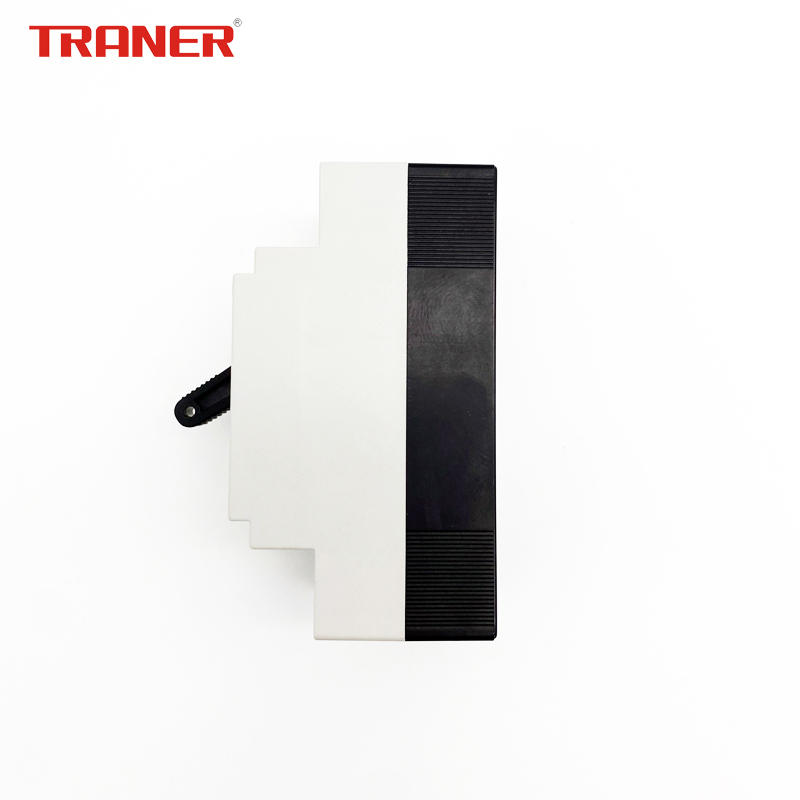

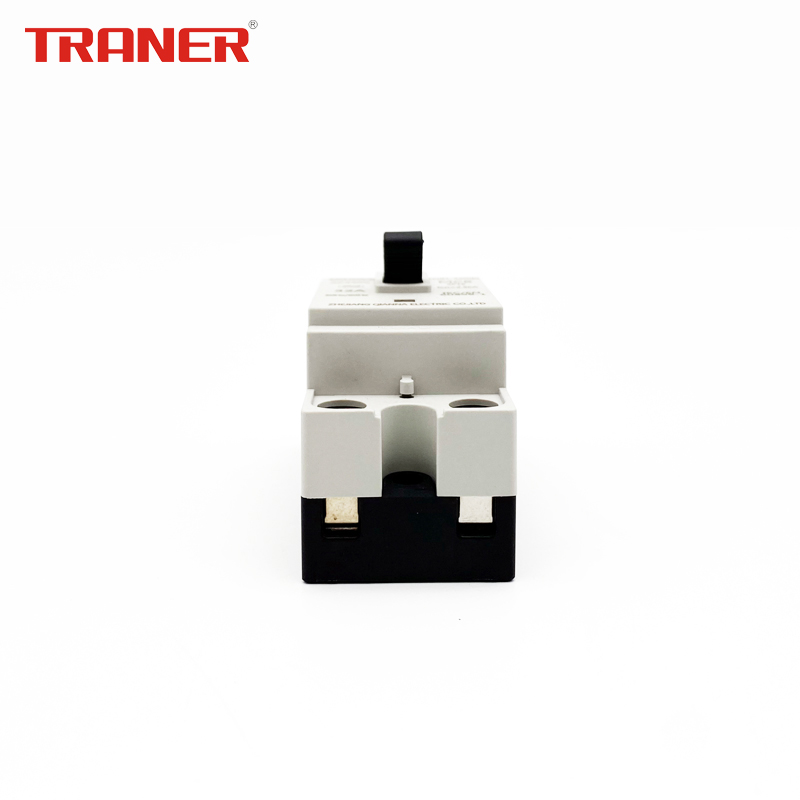

The TNB1-32G(b) miniature circuit breaker provides essential protection against overloads and short circuits in AC electrical systems. Engineered for efficiency, it features a compact footprint, ease of assembly, and a patented design suitable for modern electrical panels. This device ensures reliable performance across residential, commercial, and industrial applications while meeting international safety standards.
Key Features
- Advantages
- Compact SizeEasy AssemblyPatent DesignOverload ProtectionShort Circuit Protection
Electrical Ratings
Performance Metrics
2.5 kA
Breaking Capacity
2 P
Poles
Available Rated Currents
- 16
- 20
- 25
- 32
Technical Specifications
Trip Mechanism
| Protection Type | Technology |
|---|---|
| Over-load | Thermal / Bimetallic |
| Short circuit | Electro-magnetic |
- Dimensions
- 70mm x 32mm x 53mm
Compliance
Regulatory Standards
IEC/EN 60898-1GB 10963.1
