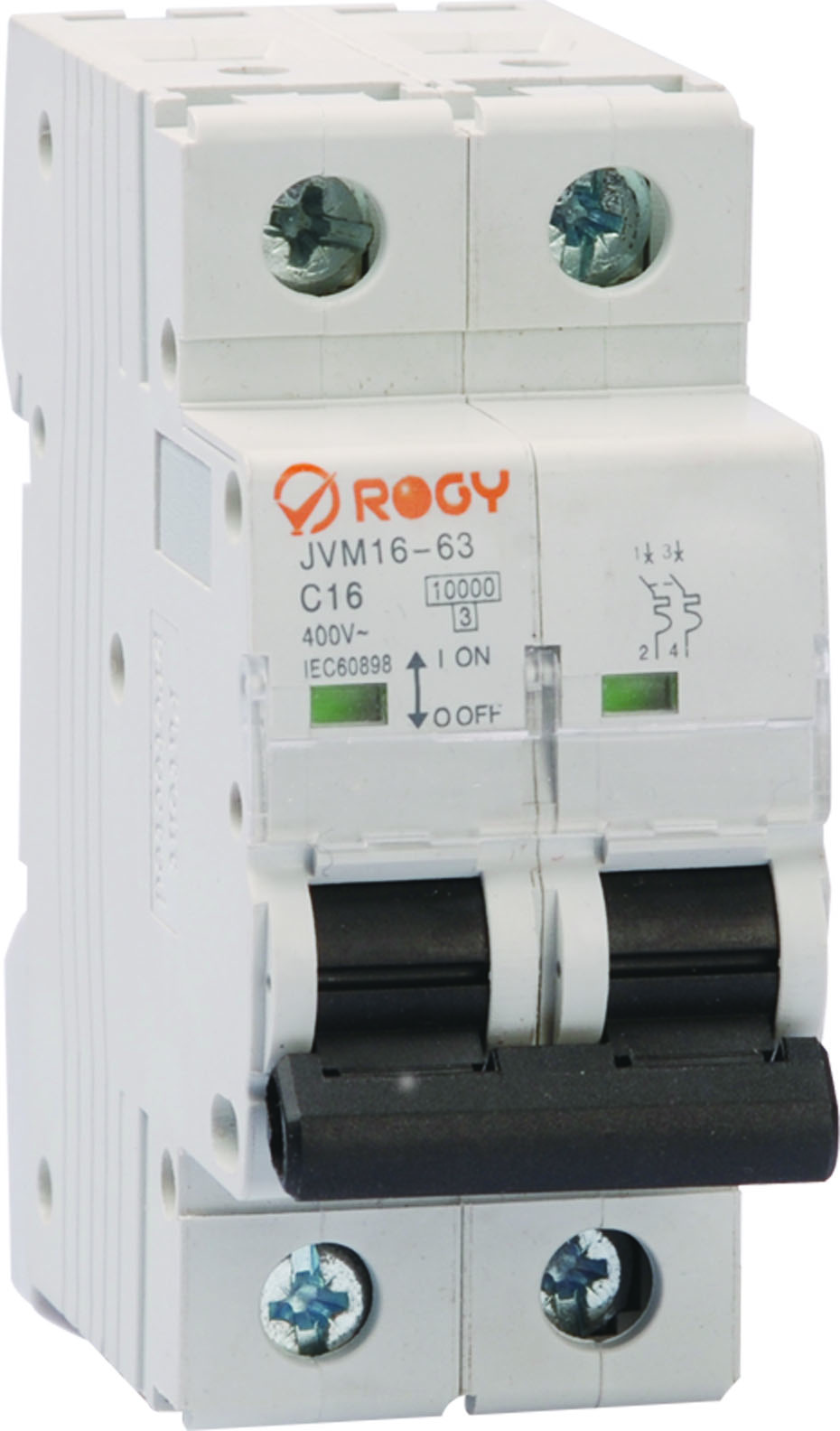

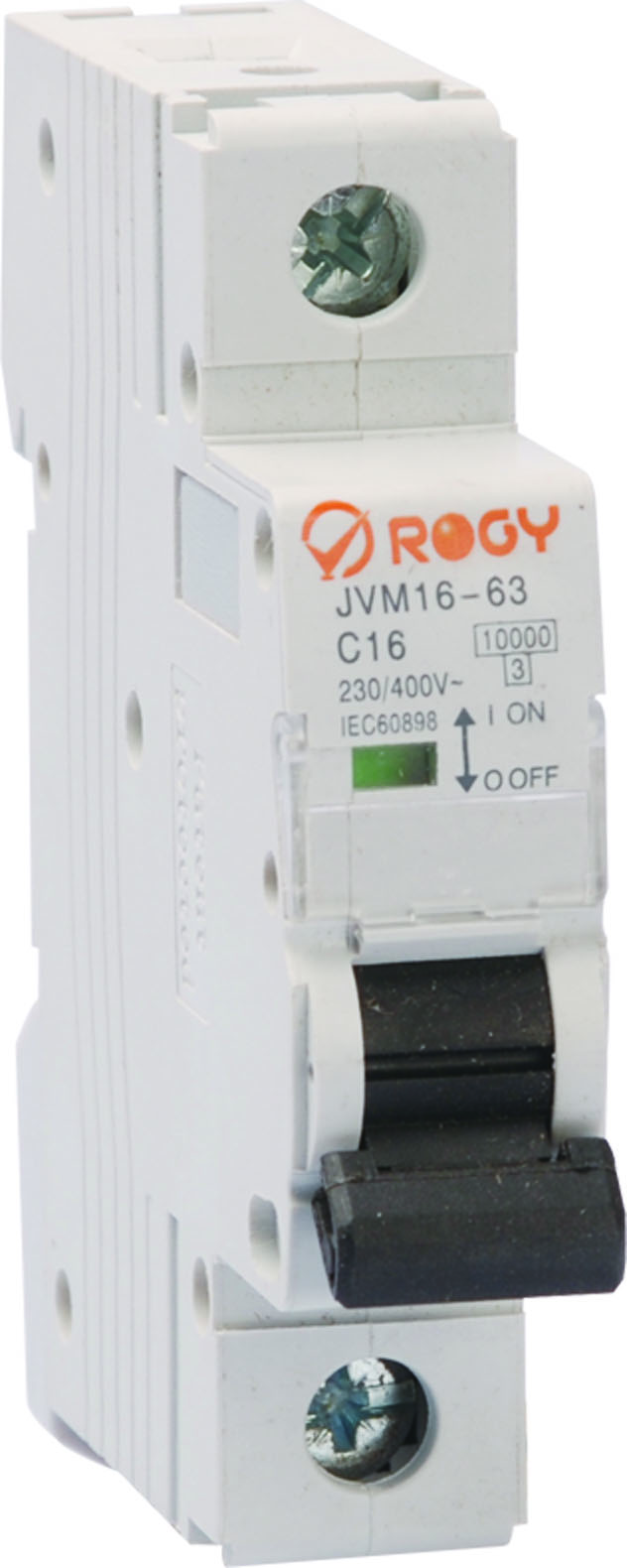

Miniature Circuit Breaker for Electrical Protection
This miniature circuit breaker is designed for electrical protection in residential, commercial, and industrial applications. It provides overload and short-circuit protection, ensuring the safety of electrical circuits and connected equipment.
Technical Specifications
Product Overview
Reliable Circuit Protection
This state-of-the-art miniature circuit breaker is designed for superior electrical safety in residential, commercial, and industrial applications. It features an elegant, arc-shaped design for comfortable operation and includes a contact position indicator for enhanced safety. With robust construction and support for various configurations, it ensures reliable overload and short-circuit protection for your electrical infrastructure.
Electrical Ratings
Available Rated Currents
- 1
- 2
- 3
- 4
- 6
- 10
- 13
- 16
- 20
- 25
- 32
- 40
- 50
- 63
- Rated Voltage
- AC 230/400V
- Rated Frequency
- 50/60 Hz
Performance Metrics
- Short-Circuit Breaking Capacity (Icn)
- 10 kA
- Rated Service Short-Circuit Breaking Capacity (Ics)
- 7.5 kA
- Rated Impulse Withstand Voltage
- 6.2 kV
- Electro-mechanical Endurance
- 20000
Configuration
- Available Pole Configurations
- 1P+N2P3P3P+N4P
- Tripping Curves
- BCD
- Energy Limiting Class
- 3
Features
Safety & Design Features
Contact position indicatorTransparent label coverLockable handleArc-shaped design
