Miniature Circuit Breaker for Electrical Protection
This miniature circuit breaker is designed for residential and commercial electrical protection. It operates at 230/400V~ and has a breaking capacity of 6000A.
Technical Specifications
Overview
Reliable Circuit Protection

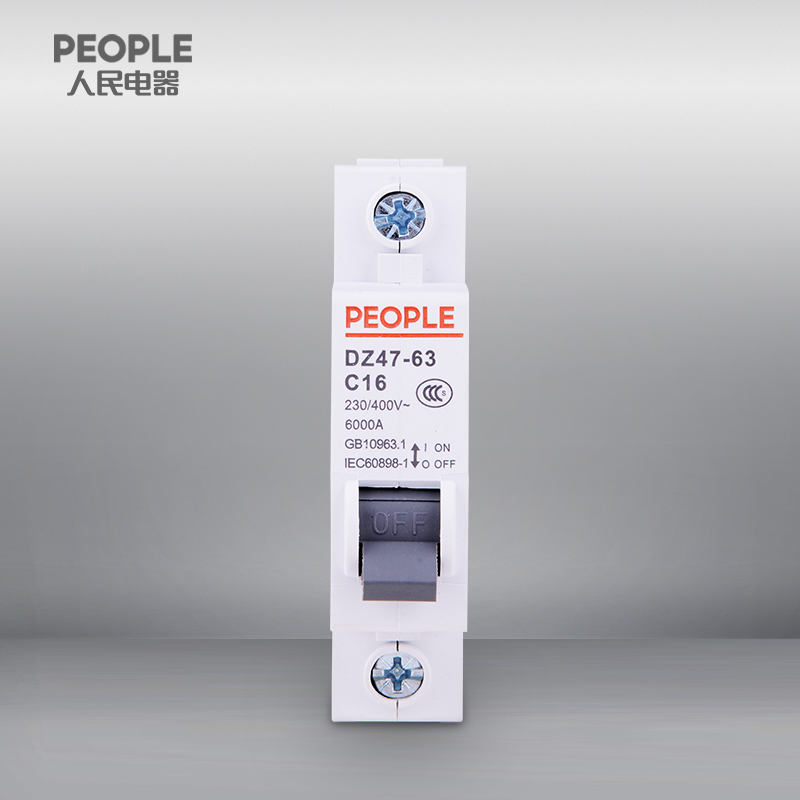

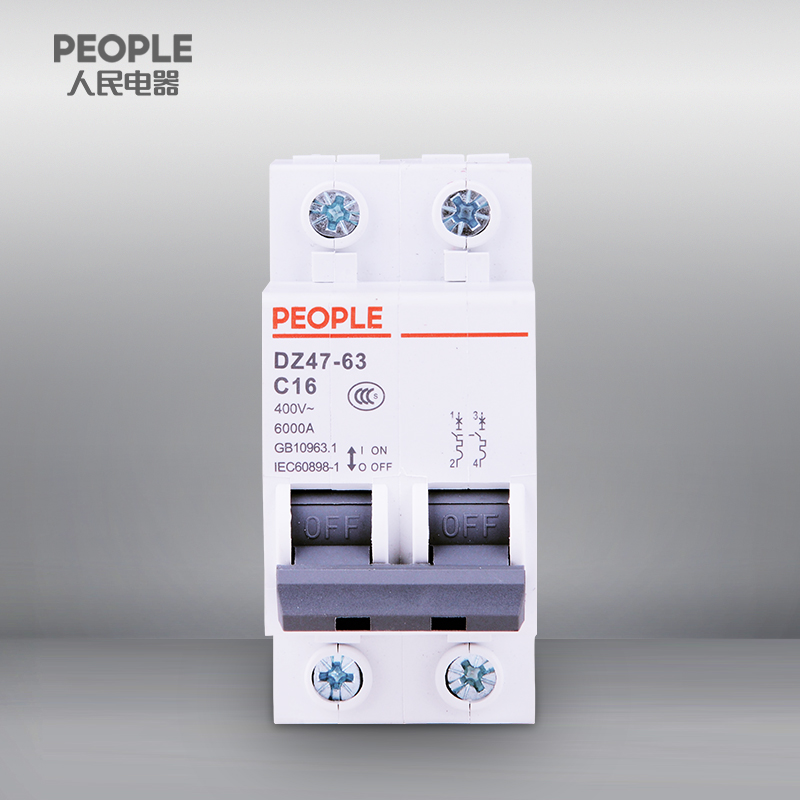

The DZ47-63 miniature circuit breaker is designed for robust overload and short-circuit protection in electrical distribution systems. It is suitable for AC 50/60Hz circuits, supporting 230V for single-phase and 400V for multi-phase configurations. This versatile device is ideal for domestic, commercial, and industrial applications, ensuring safety and reliable performance.
Technical Specifications
Rated Current
63 A
Maximum Rated Current
Breaking Capacity
- 4,000
- 6,000
- Voltage Rating
- 230V (Single Phase)400V (2, 3, 4 Phases)
- Operating Frequency
- 50/60Hz
Compliance & Standards
Compliance Standards
IEC/EN60898-1GB10963.1
Tripping Characteristics
- C6
- C16
- C63
Features
- Mounting
- DIN rail
- Status Indicators
- Yes
