Technical Specifications

Product Overview

High-Performance Miniature Circuit Breaker

This miniature circuit breaker offers reliable double protection against both overload and short-circuit conditions. Engineered for modern electrical distribution systems, it ensures safety in residential and commercial environments operating at 230V. With a compact 18mm-wide DPN (P+N) design, it is optimized for 35mm DIN rail installation in standard distribution boards.

Electrical Specifications

Breaking Capacity

4.5 kA

Short-Circuit Breaking Capacity

Rated Voltage: 230 V
Available Rated Currents: 6A10A16A20A25A32A

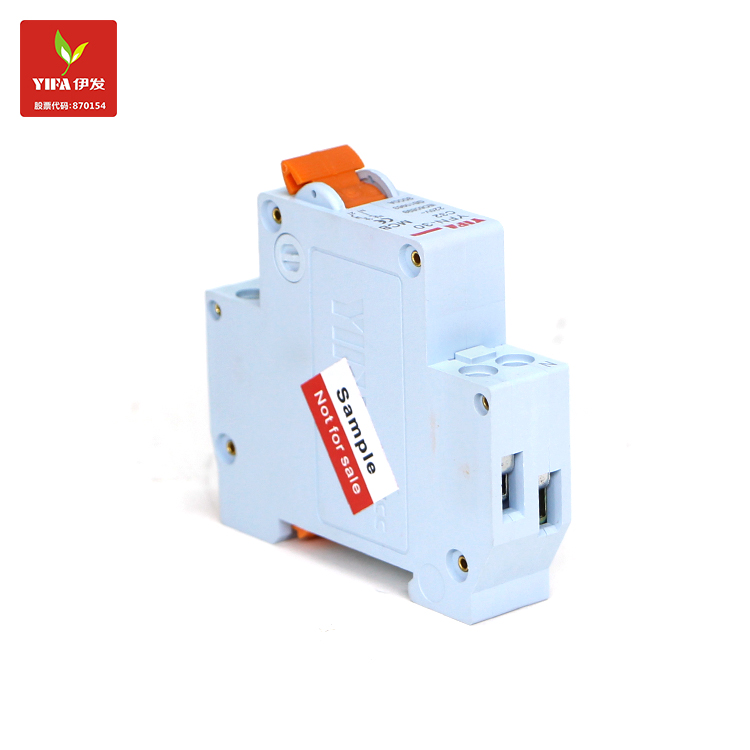

Miniature circuit breaker showing terminal markings — DPN configuration ensures reliable circuit protection.

Mechanical & Installation

Pole Number: 1P+N (DPN)
Mounting: 35mm DIN Rail
Width per Pole: 18 mm

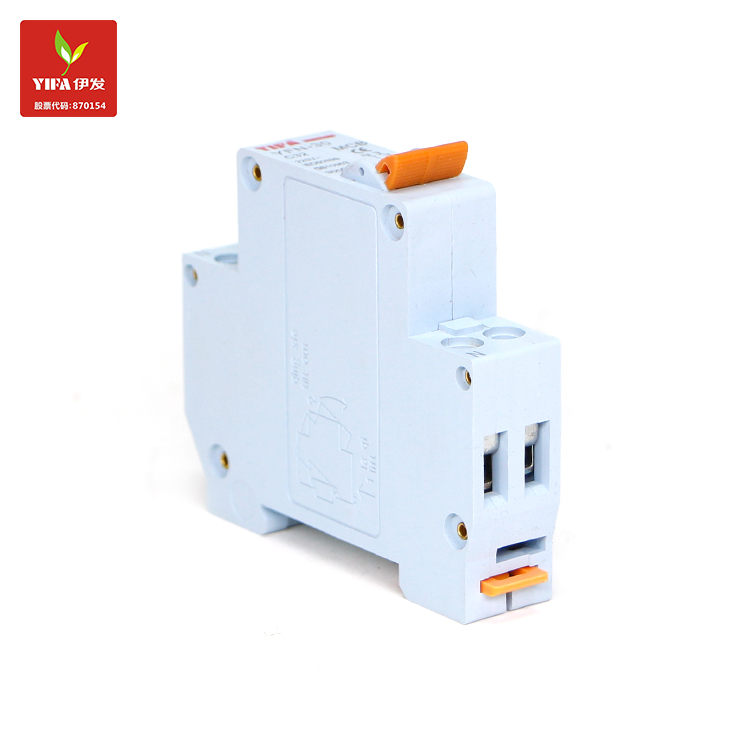

Compact design optimized for DIN rail installation.

Standards & Compliance

Tripping Curve

Type C

Compliance Standards: IEC60898-1GB10963

Logistics & Supply

Supply Ability: 5000 pieces per week
Packaging: Cartons

Interested in Sourcing This Product?

Submit a request to connect with verified manufacturers who produce this product.

Miniature Circuit Breaker DPN 230V 32A

This miniature circuit breaker provides overload and short circuit protection. It is designed for residential buildings with AC 50 Hz / 60 Hz, a rated working voltage of 230 V and rated current up to 32 A.

Request a Quote Download PDFPDF

Miniature Circuit Breaker DPN 230V 32A - Image 1
