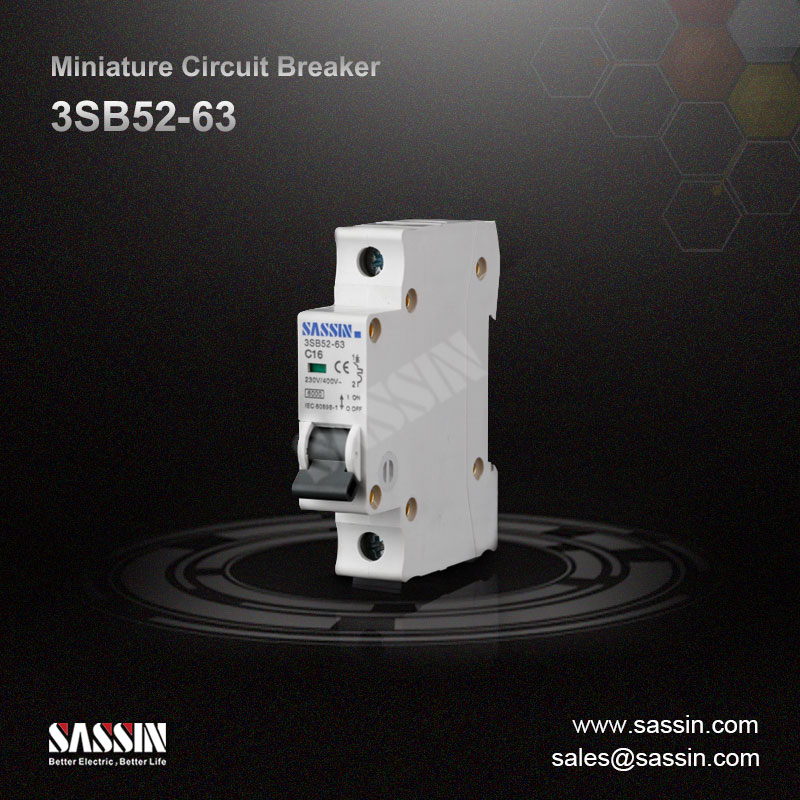

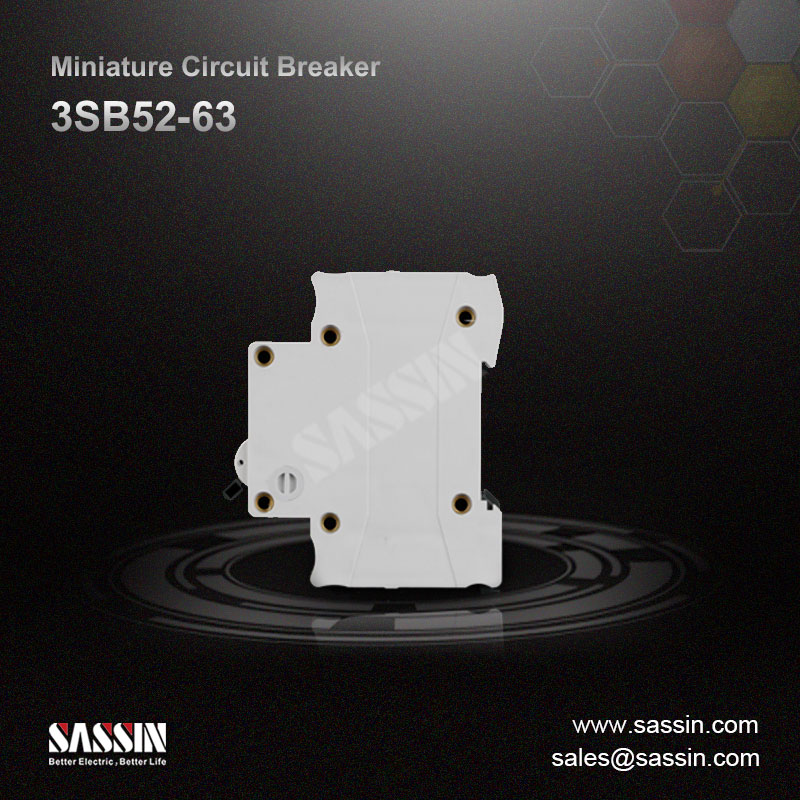

Miniature Circuit Breaker C16 230/400V
This miniature circuit breaker is designed to protect electrical circuits from overcurrent. It trips and interrupts the circuit when it detects an overload or short circuit.
Technical Specifications
Overview
Smart Circuit Protection
This miniature circuit breaker offers advanced electrical protection for residential and commercial circuits. It features real-time monitoring of electricity data, remote control capabilities, and breakdown diagnosis. Designed for single-phase lines, it provides reliable protection against overcurrent, over-voltage, under-voltage, and electrical shock while maintaining a compact form factor.
Electrical Ratings
Rated Voltage
230 V
Min Rated Voltage
400 V
Max Rated Voltage
- Tripping Characteristic
- C16
- Rated Frequency
- 50 Hz
Compliance & Standards
- Certifications
- CEIEC 60898-1
Features
Smart Capabilities
- Real-time electricity data monitoring
- Remote control
- Breakdown forecast and diagnosis
- Power and power charge metering
- Statistics and calculation
Protection Functions
OvercurrentOver-voltageUnder-voltageHuman shock protectionShort-circuit
