Technical Specifications
Product Overview
Reliable Circuit Protection

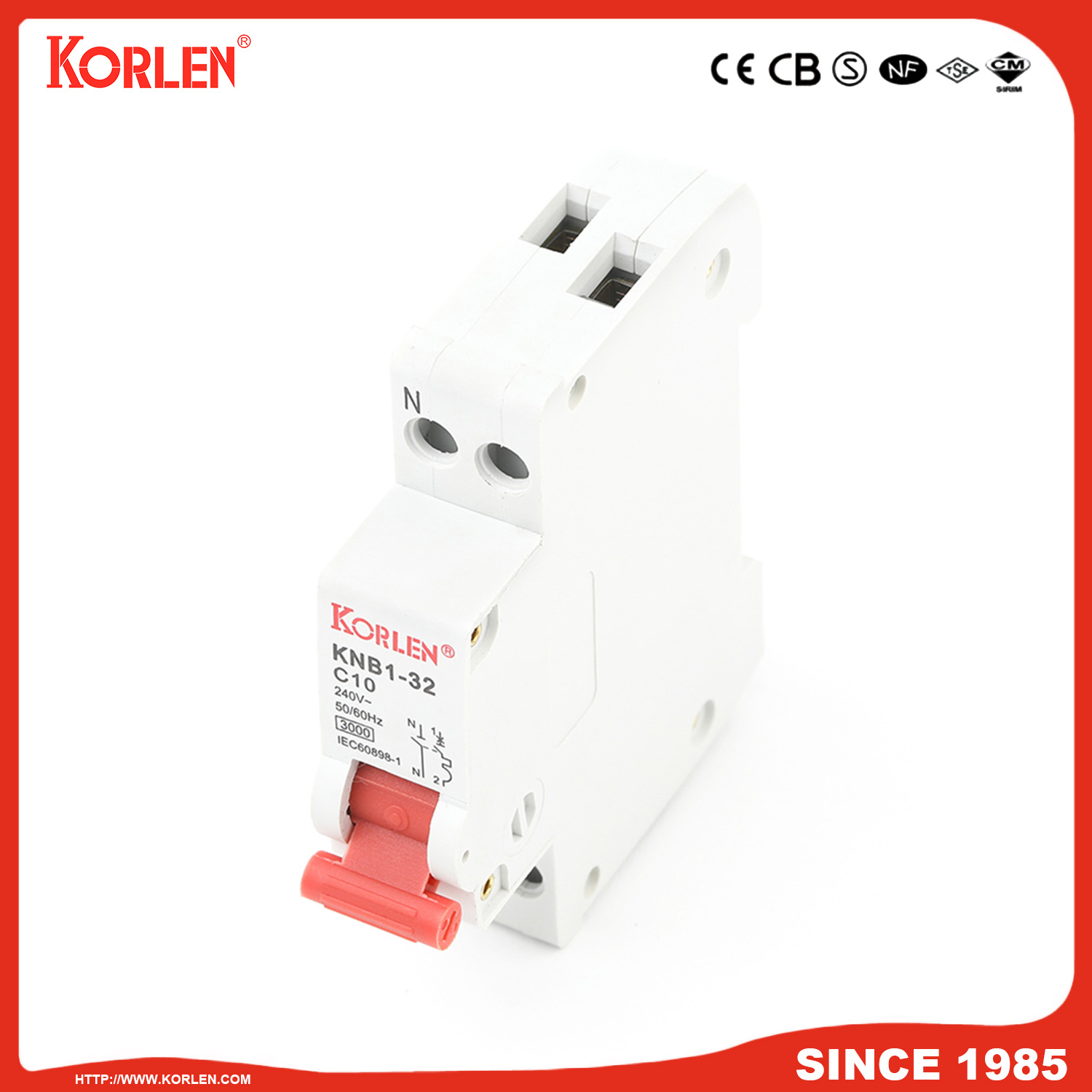

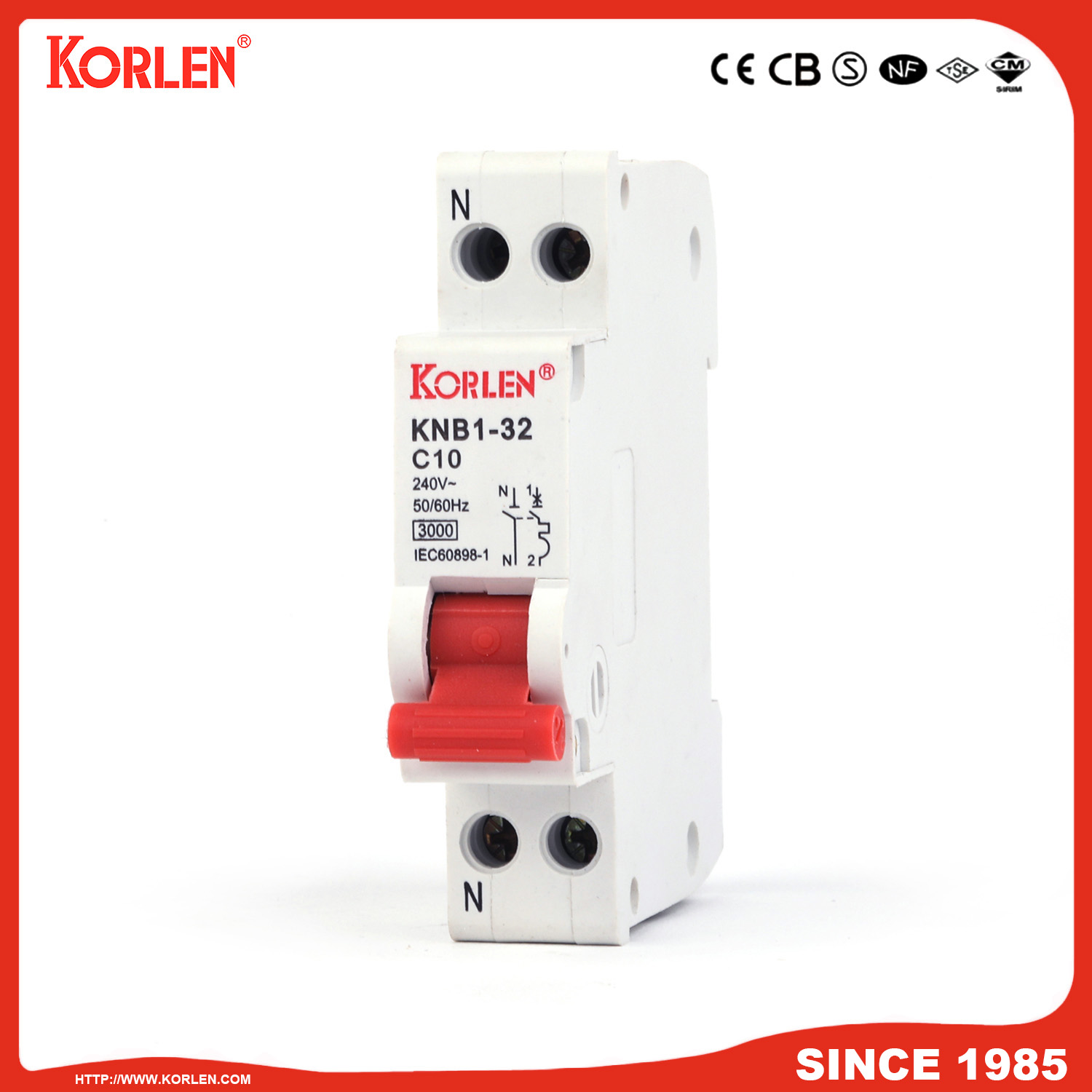

The KNB1-32 series miniature circuit breaker is designed for robust performance in AC 50/60Hz electrical lines. It provides essential protection against overloads and short-circuits, making it suitable for both residential and commercial applications. With its standard DIN rail mounting, this device ensures convenient installation and reliable operation for infrequent switching needs.
Electrical Ratings
Rated Breaking Capacity
3,000 A
Breaking Capacity
- Rated Working Voltage
- 240 V
- Rated Current
- 32 A
- Operating Frequency
- 50/60 Hz
Technical Specifications
- Tripping Characteristic
- C Curve
- Mounting
- Standard DIN rail
Compliance & Standards
- Compliance Standards
- IEC/EN 60898GB10963CECB
