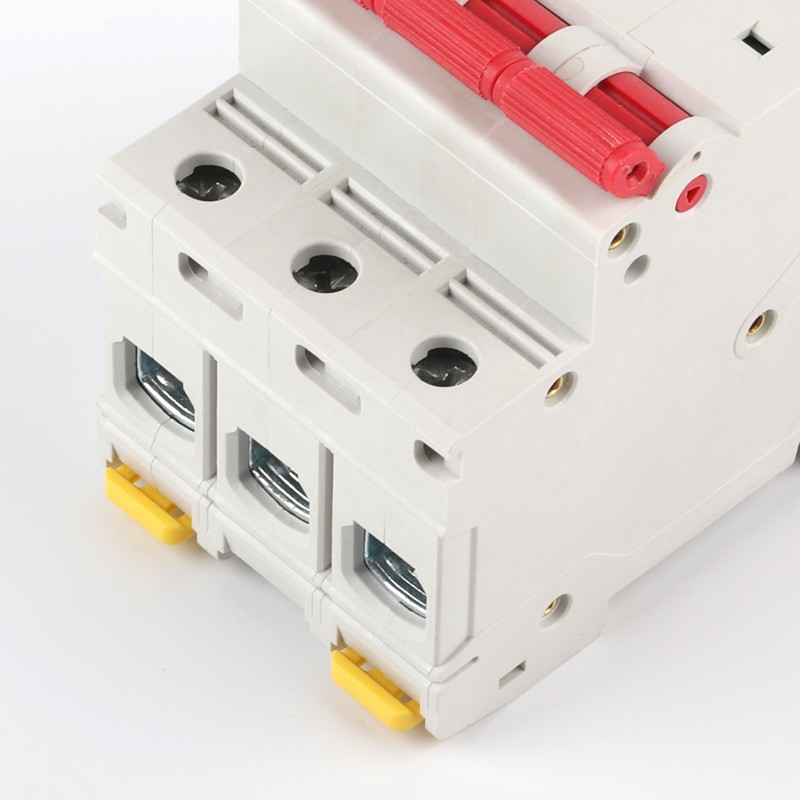

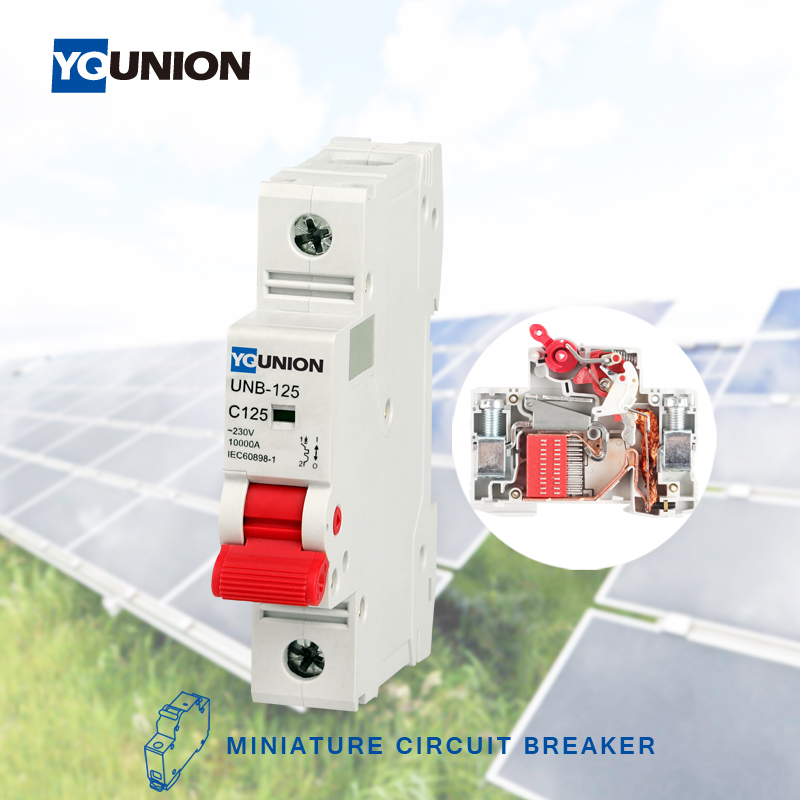

Miniature Circuit Breaker
This miniature circuit breaker offers a high breaking capacity of up to 6kA. It features a contact position indicating window for enhanced safety and is constructed with PA66 nylon for flame retardancy and impact resistance.
Technical Specifications
Product Overview
Reliable Circuit Protection
This miniature circuit breaker provides automatic protection against electrical overloads and short circuits. Engineered with high-quality, flame-retardant PA66 materials and a robust internal arc chamber, it ensures safety and durability in demanding electrical environments. Its innovative design features a 1P+N configuration, high breaking capacity, and clear contact position indicators for enhanced operational visibility.
Performance Metrics
Breaking Capacity
10,000 A
Breaking Capacity
Rated Voltage
230 V
Voltage
Technical Specifications
Protection Functions
- Overload protection
- Short circuit protection
- Leakage protection
Standards
IEC60898-1
- Materials
- PA66 NylonQ195 SteelZinc CoatedAluminum Rivets
Design & Features
Key Features
- 1P+N Configuration
- 18mm Module Width
- Contact position indicating window
- Magnetic blow-out arc extinguishing
- Flame retardant shell
