Miniature Circuit Breaker 6kA
This miniature circuit breaker provides overload and short-circuit protection. It has a rated short-circuit breaking capacity of 6kA and includes a contact position indication window.
Technical Specifications
Overview
Reliable Circuit Protection

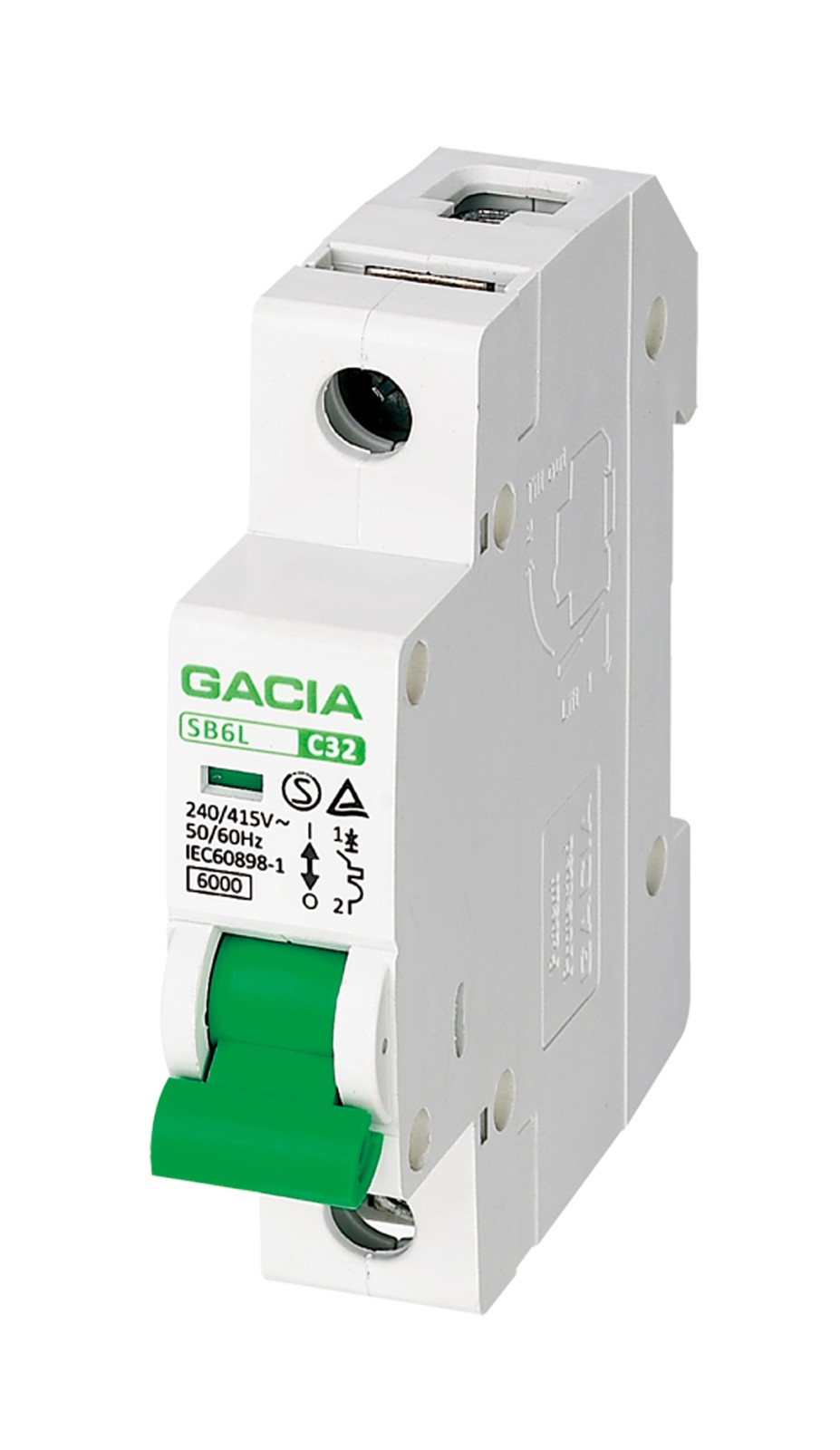

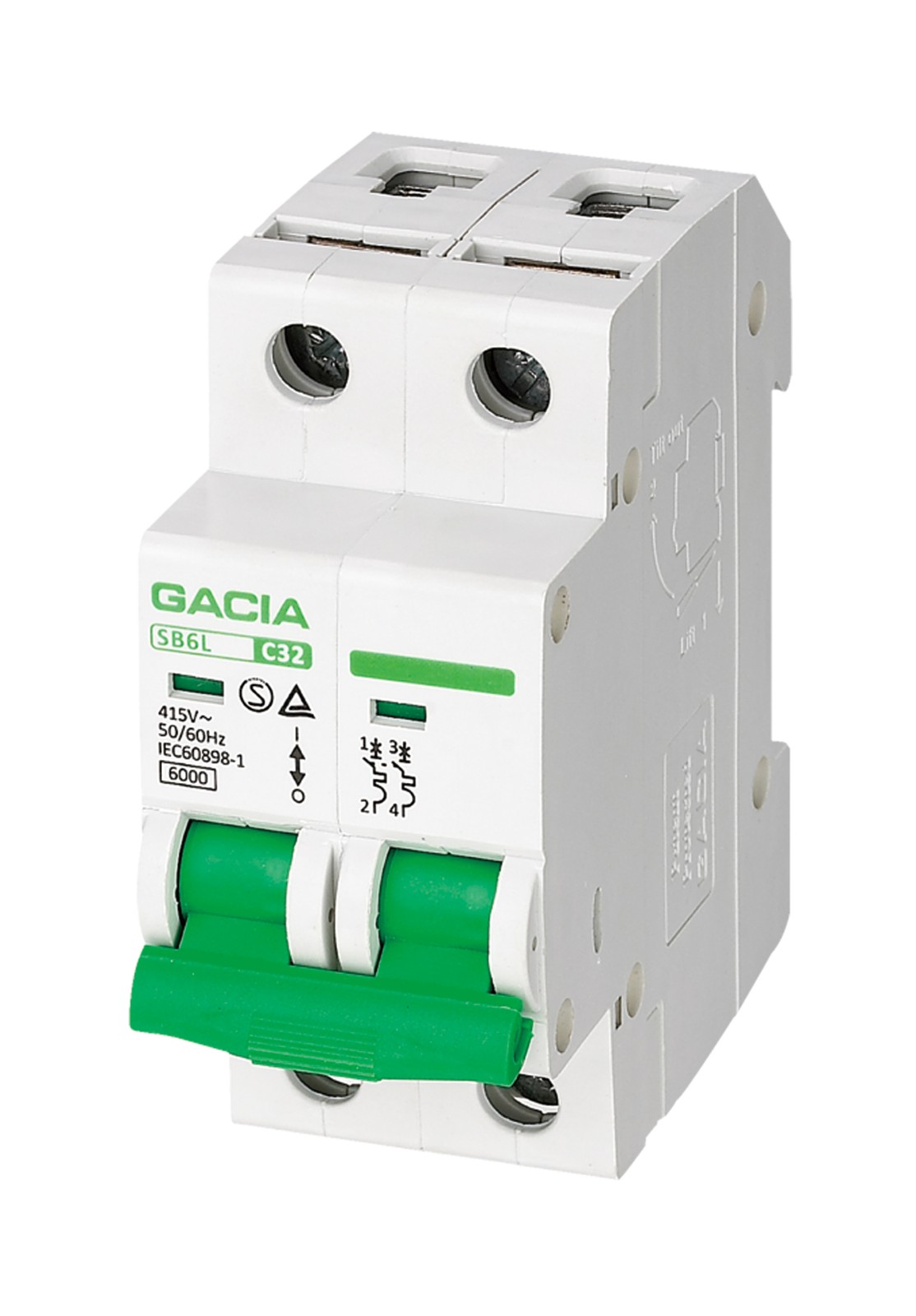

The SB6L Miniature Circuit Breaker is designed to ensure safety in residential, commercial, and industrial electrical systems. It provides essential protection against overloads and short circuits, featuring a robust breaking capacity of 6kA. With versatile configuration options including 1 to 4 poles and multiple tripping curves, this device is a dependable choice for modern electrical distribution.
Technical Specifications
Rated Breaking Capacity
6 kA
Breaking Capacity
3 kA
Conditional Short Circuit Strength
- Rated Current
- 63 A
- Tripping Curves
- Curve BCurve CCurve D
- Pole Configuration
- 1-4 pole versions available
- Operating Frequency
- 60 Hz
Compliance & Features
Standards Compliance
- IEC/EN 60898-1
- IEC/EN 60947-2
Certifications
CETUV
- Contact Position Indicator
- Yes
