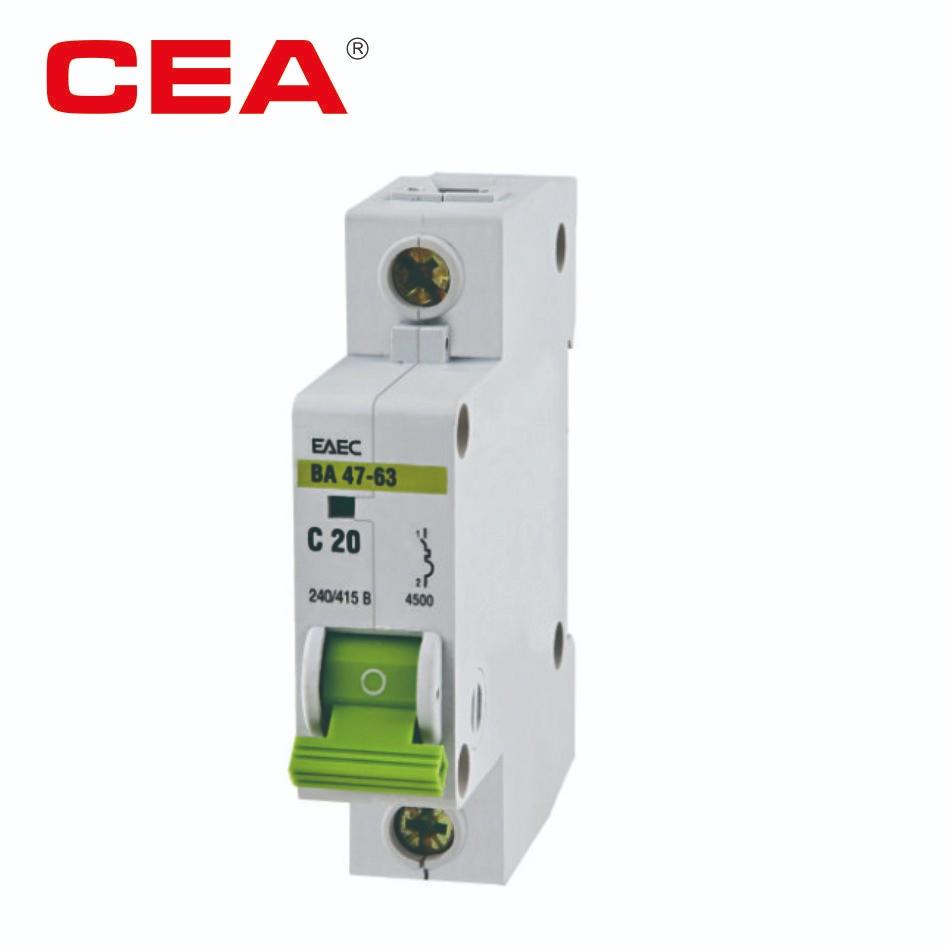

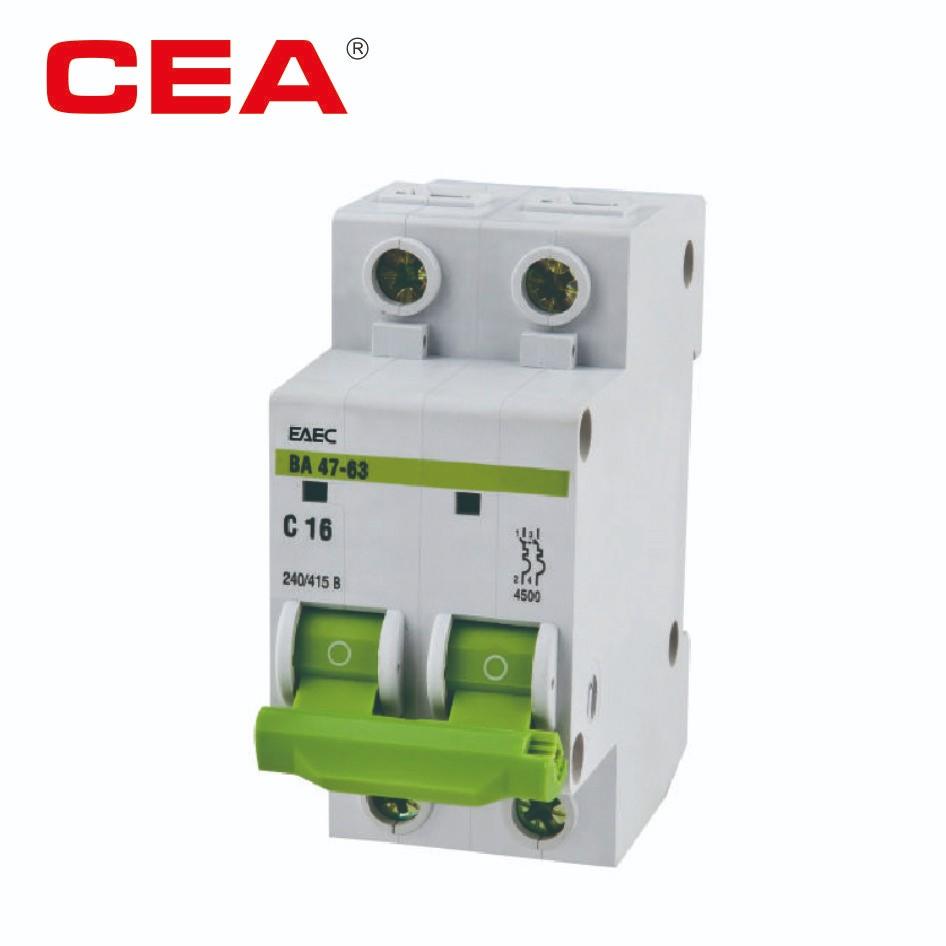

Miniature Circuit Breaker 6kA
This miniature circuit breaker is used in lighting distribution systems and motor distribution systems. It protects against overload and short-circuit conditions within the system, featuring a 6kA breaking capacity.

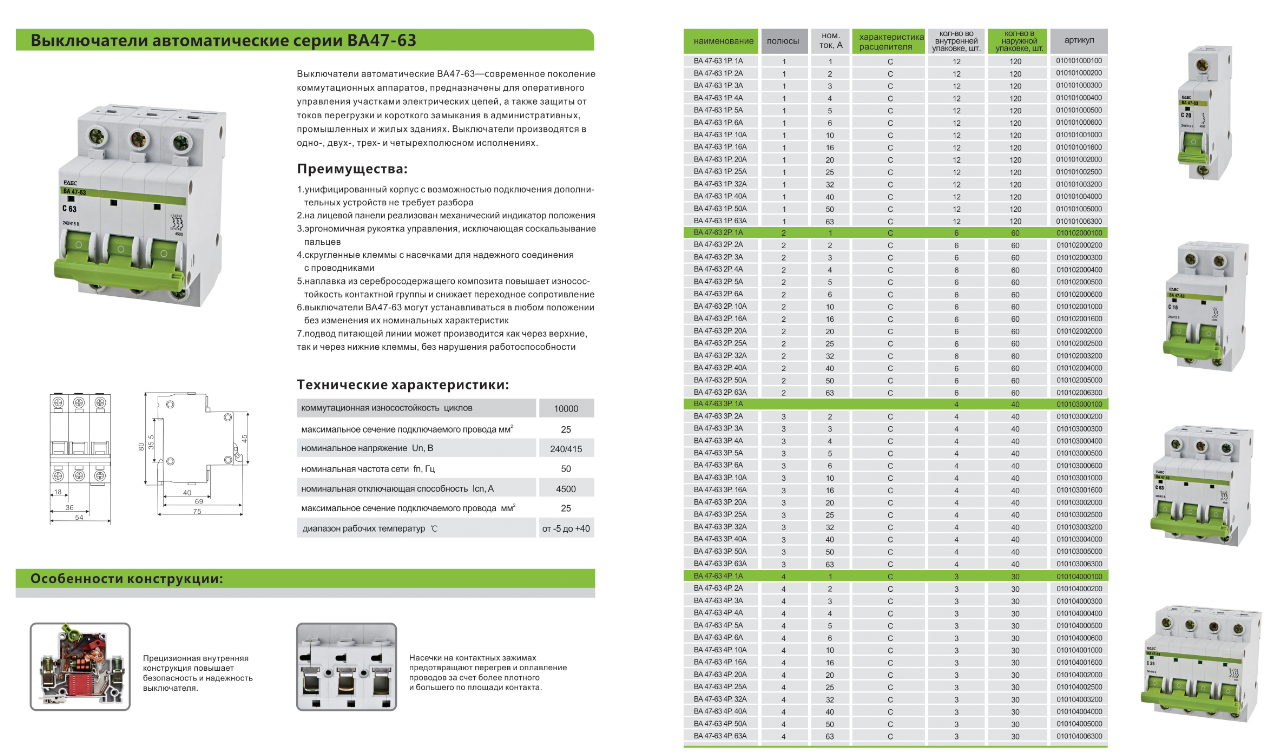

Technical Specifications
Product Overview
Reliable Circuit Protection
The BA47 series miniature circuit breaker is designed for high-performance protection in lighting and motor distribution systems. It effectively guards against overloads and short circuits in both industrial and residential environments. With a versatile range of poles and tripping curves, it ensures safety and stability for diverse electrical installations.
Technical Performance
Breaking Capacity
6 kA
Interrupting Rating
Rated Voltage
- 230V AC
- 415V AC
- Rated Frequency
- 50 Hz
Configuration
Tripping Characteristics
B TypeC TypeD Type
- Number of Poles
- 1P2P3P4P
- Rated Current Options
- 1A2A3A4A6A10A16A20A25A32A40A63A
Design Features
Mechanical & Safety Features
- Mechanical position indicator on front panel
- Ergonomic non-slip handle
- Rounded terminals with notches for secure connection
- Silver-containing composite plating for durability
- Unified housing for optional accessories
Installation
Installation Specifications
| Parameter | Value |
|---|---|
| Mechanical Endurance | 10,000 cycles |
| Max Conductor Cross-section | 25 mm² |
| Operating Temperature | -5°C to +40°C |
| Mounting Position | Any (top or bottom feed) |
