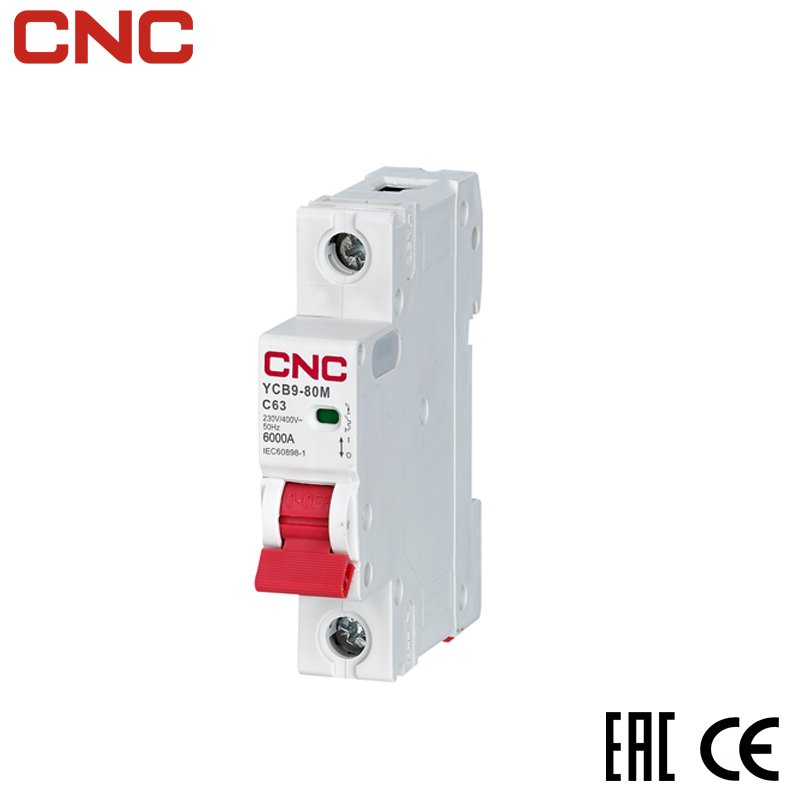

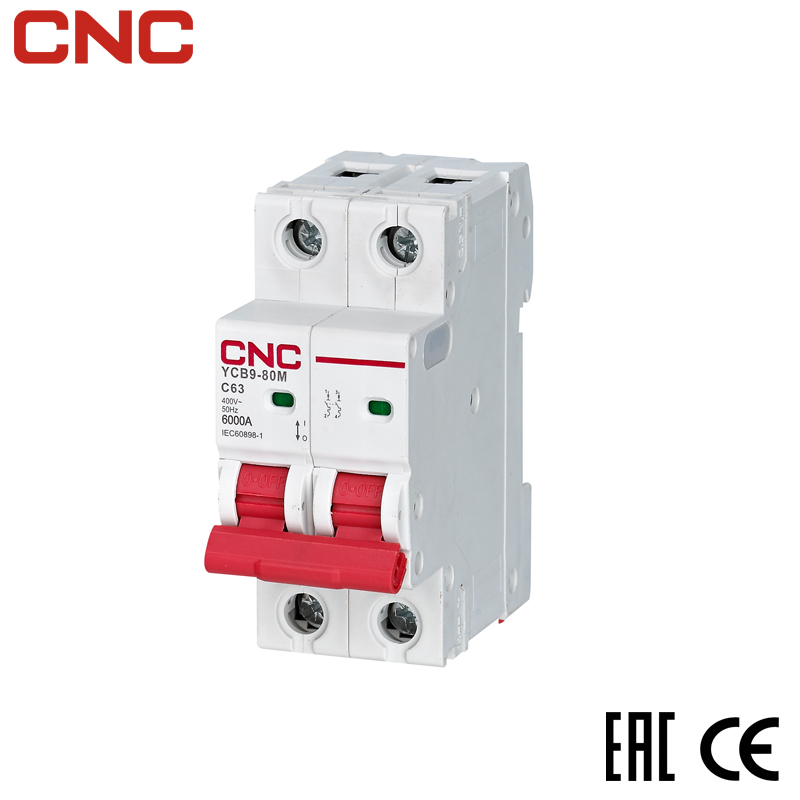

Miniature Circuit Breaker 6000A 230/400V
Miniature circuit breaker designed for circuit protection. Rated for 230V/400V at 50Hz with a breaking capacity of 6000A.
Technical Specifications
Product Overview
Professional Circuit Protection
This miniature circuit breaker provides essential overload and short-circuit protection for residential, commercial, and industrial electrical systems. Designed for reliability, it supports standard voltage ratings and ensures consistent performance across diverse infrastructures. It offers advanced safety features including precise instantaneous release characteristics, making it a robust choice for protecting complex electrical circuits.
Technical Specifications
Rated Breaking Capacity
6,000 A
Breaking Capacity
Instantaneous Release Types
| Type | Range |
|---|---|
| Type B | 3-5 ln |
| Type C | 5-10 ln |
| Type D | 10-20 ln |
- Rated Voltage
- 230/400V
- Operating Frequency
- 50 Hz
- Trip Curve
- C63
Compliance and Standards
International Standards
IEC60898-1
- Certifications
- CEEAC
Application Details
Suitable Environments
- Residential buildings
- Non-residential buildings
- Energy source industry
- Infrastructure
