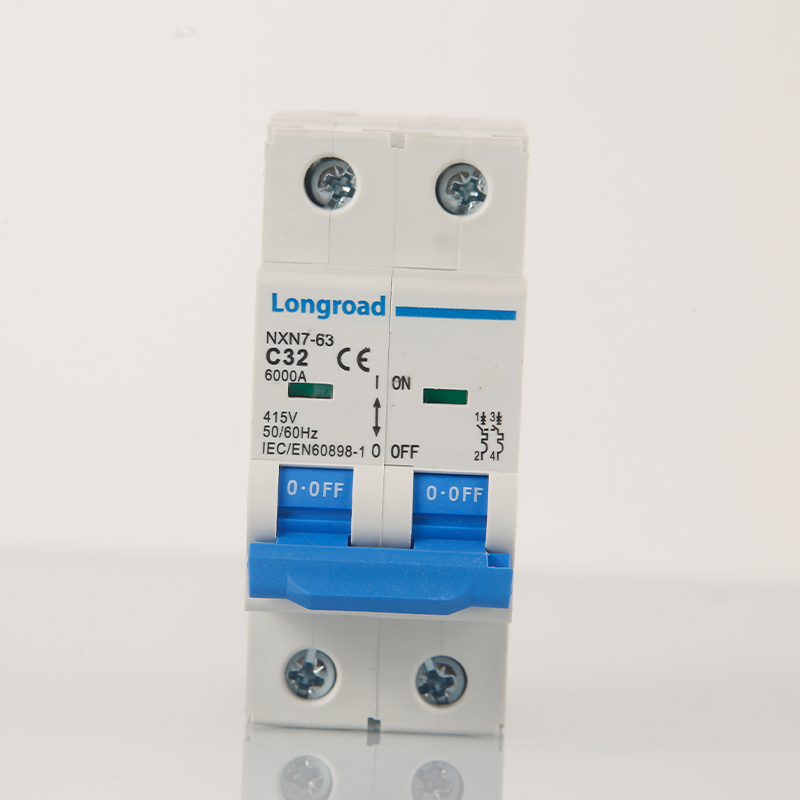

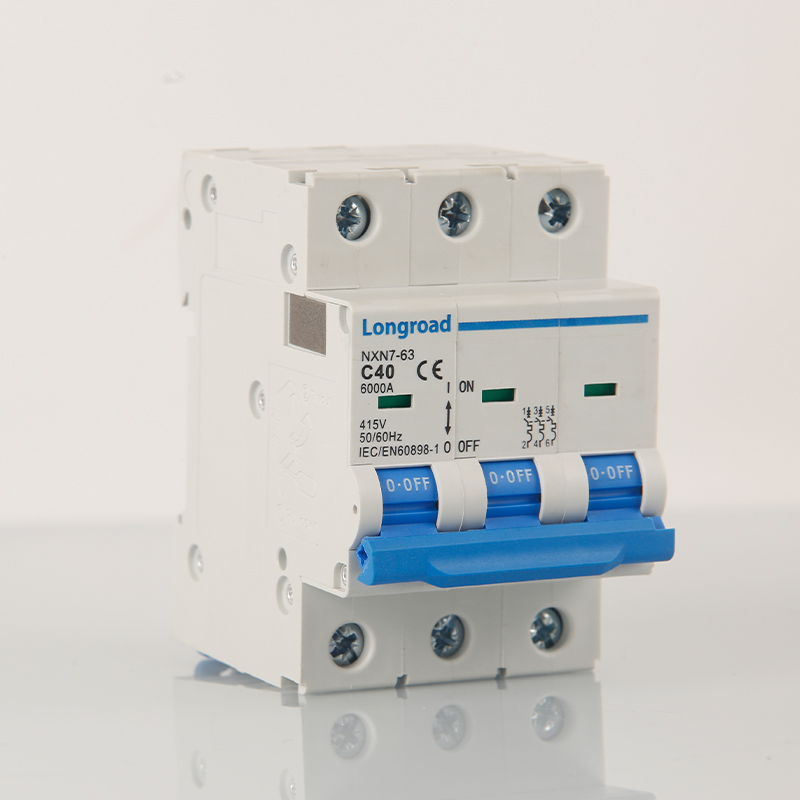

Miniature Circuit Breaker 6000A
This miniature circuit breaker offers stable and reliable performance. It has a short circuit breaking capacity of 6000A.
Technical Specifications
Overview
Reliable Circuit Protection
This miniature circuit breaker is engineered for robust electrical protection in residential, commercial, and industrial environments. Compliant with IEC/EN 60898-1 standards, it offers a 6000A short-circuit breaking capacity and is available in multiple pole configurations. Designed for ease of use, it features clear contact position indicators and supports versatile installation on standard 35mm DIN rails.
Electrical Parameters
Short Circuit Capacity
6,000 A
Breaking Capacity
Tripping Characteristics
| Type | Range |
|---|---|
| B Type | 3In ~ 5In |
| C Type | 5In ~ 10In |
| D Type | 10In ~ 20In |
- Available Rated Currents
- 1A3A6A10A16A20A25A32A40A50A63A
- Pole Configurations
- 1P1P+N2P3P3P+N4P
- Rated Voltage
- 230/400V — 240/415V
Mechanical Parameters
Degree of Protection
IP20
- Mechanical Life
- 20000 cycles
- Electrical Life
- 4000 cycles
Installation
Terminal Capacity
- Cable: 25mm² (18-4AWG)
- Busbar: 10mm² (18-8AWG)
- Mounting
- DIN rail EN 60715 (35mm)
- Tightening Torque
- 2.5 N.m
