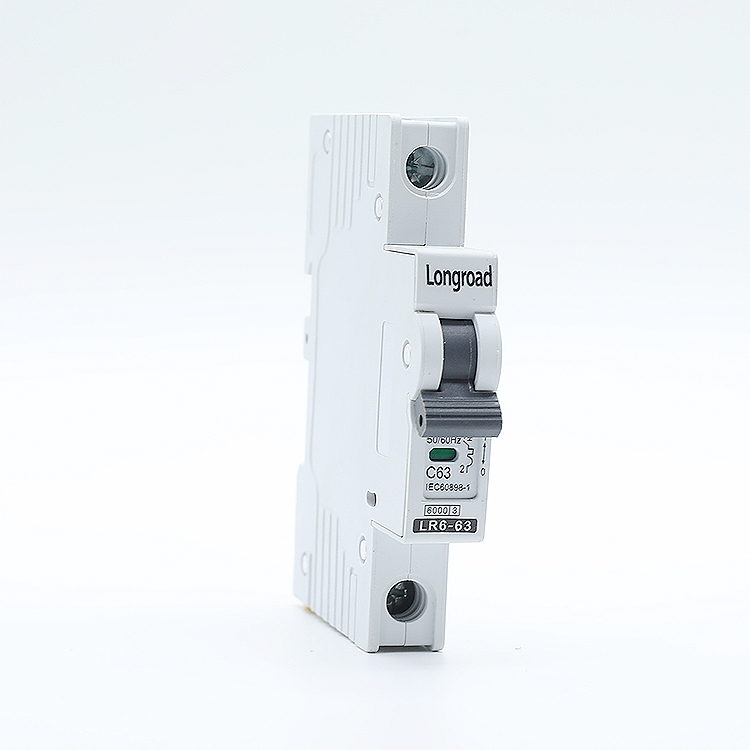

Miniature Circuit Breaker 6000A
This miniature circuit breaker provides reliable performance at a competitive price. It is suitable for photovoltaic and wind power systems.
Technical Specifications
Product Overview
Versatile Electrical Protection
This miniature circuit breaker provides robust overload and short-circuit protection for residential, commercial, and industrial electrical systems. Engineered for reliability, it features a 6000A short-circuit breaking capacity and conforms to strict international IEC/EN safety standards. Its compact, modular design supports versatile installation options on standard 35mm DIN rails.
Electrical Ratings
Short Circuit Capacity
6,000 A
Capacity
Available Rated Currents
- 1
- 3
- 6
- 10
- 16
- 20
- 25
- 32
- 40
- 50
- 63
- Rated Voltage
- 230/400V - 240/415V AC

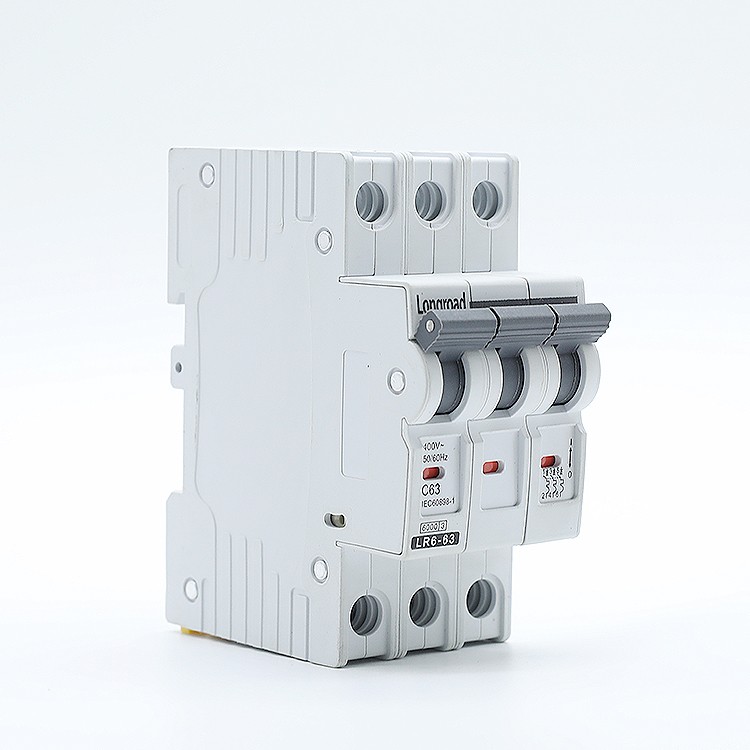

- Available Pole Configurations
- 1P1P+N2P3P3P+N4P
Technical Specifications
Tripping Characteristics
| Curve Type | Range |
|---|---|
| B Type | 3In ~ 5In |
| C Type | 5In ~ 10In |
| D Type | 10In ~ 20In |
- Mechanical Service Life
- 20000 Cycles
- Electrical Service Life
- 4000 Cycles
Installation
- Mounting Method
- DIN rail EN 60715 (35mm)
- Tightening Torque
- 2.5 N.m
Environmental
Degree of Protection
IP20
- Operating Temperature
- -5°C to +40°C
